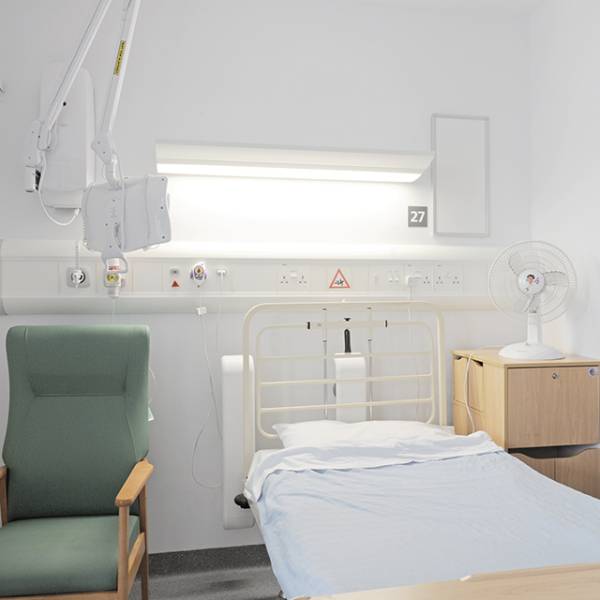

CS Acrovyn® BL4C / BL4CE Bed Head Protectors

Description

A range of severe duty bed head protectors, featuring Acrovyn® or Acrovyn® 4000 cover over continuous aluminium retainers.

Features:

  • Designed to protect walls from damage at bed head locations.
  • Supplied pre-cut and complete with end caps.
  • Designed for use in pairs, in vertical orientation, typically at 600 mm centres.
  • BL4C versions are mounted on Rapid Fix bracket for 76mm overall stand-off.
  • BL4CE versions are mounted on extended powder coated aluminium brackets to hold beds away from the wall and wall mounted equipment.
  • Continuous shock absorbing cushion for increased protection.
  • Available in 27 Acrovyn® profile colours and 8 Acrovyn® profile 4000 colours.
  • For extra durability, it is recommended fixing bed locators to studwork or pattresses.

General information

Uniclass 2015

Pr_35_90_43_86 Wall protection panelsPrimary

CAWS

N10/184 Wall rails

P20/170 Proprietary

Specification data - Wall protection panels

Product Reference

Acrovyn® BL4C Bed Head Protectors

Mounted on Rapid Fix brackets.

Acrovyn® BL4CE Bed Head Protectors

Mounted on extended aluminium brackets.

Acrovyn® 4000 BL4C-N Bed Head Protectors

Mounted on Rapid Fix brackets.

Acrovyn® 4000 BL4CE-N Bed Head Protectors

Mounted on extended aluminium brackets.

Bracket length

BL4CE BL4CE-N - 300 mm as standard, or cut to suit (90mm minimum).

Colour

As schedule ___

Standard product features

Rail width:

140 mm.

Standard height:

750 mm.

Fixing:

400 mm maximum vertical centres.

Product Options

Acrovyn® BL4C/ Acrovyn® 4000 BL4C-N Bed Head Protectors:

  • Mounted on Rapid Fix brackets.
  • Overall depth: 76 mm.

Acrovyn® BL4CE/ Acrovyn® 4000 BL4CE-N Bed Head Protectors:

Mounted on powder coated aluminium extended brackets 300mm as standard, or cut to size ( 90mm minimum length).

Colour:

- Acrovyn®:

11 Alpine Blue/ 12 Cobalt/ 16 Harvest Gold/ 17 Sherbet/ 23 Spring Green/ 24 Dove/ 26 Taupe/ 34 Zest/ 100 Eggshell/ 101 French Cream/ 105 Mocha/ 112 Pacific Blue/ 129 Yale Blue/ 136 Pearl Grey/ 162 Charcoal/ 520 Imperial Purple/ 801 Grey Cloud/ 845 Spectrum Red/ 879 Dusty Jade/ 933 Mission White/ 4005 Plum/ 5018 Lagoon/ 6033 Mint Turquoise/ 7024 Graphite/ 7039 Iron/ 8019 Earth/ 9003 Snow White.

- Acrovyn® 4000:

100 Eggshell/ 101 French Cream/ 105 Mocha/ 129 Yale Blue/ 136 Pearl Grey/ 162 Charcoal/ 520 Imperial Purple/ 933 Mission White.
