CreaZen Single - Gates
Application

  • Residential.
  • Public spaces and buildings.

Description

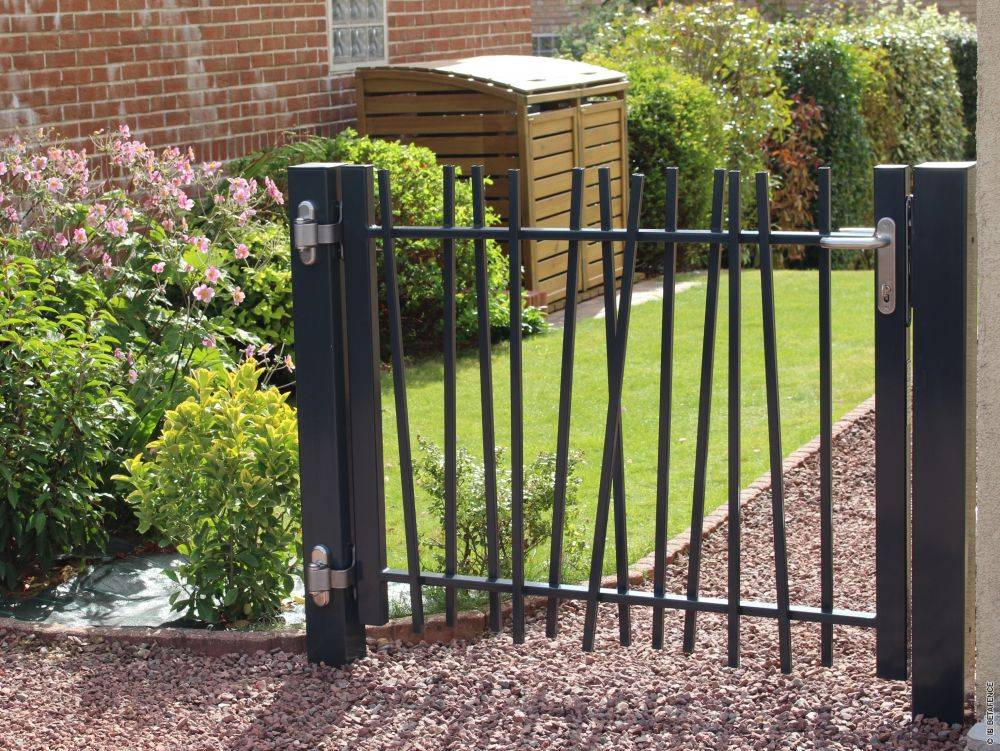

Perimeter security single leaf swing gate, with a frame consisting of square steel tubes with welded infill. Inspired by natural elements - bamboo style fence with titling vertical rails.


Features and benefits:

  • Can be used in conjunction with CreaZen fence panels.
  • Steel tubes are welded to both sides of the gate in a 'criss-cross' formation, helping to create a rigid, high-quality construction. Spacing between tubes is 110 mm for increased security.
  • Posts are supplied.
  • Universal, 180° opening.
  • Aesthetic, high-quality accessories, including built-in lock with stainless steel cover plates, symmetrical European cylinder with three keys, fully reversible and strong hinges, decorative handles and gate catcher (installed on the post or wing), are included.


General information

Color

Green

RAL 6005 (Moss green).

Grey

RAL 7016 (Anthracite grey).

White

RAL 9010 (Pure white).

Black

AL 9005 (Jet black).

Finish

Polyester powder coated

Galvanized

Material

Steel

Steel: Type S235 JRH class 1, in accordance with EN 10219-1.

Shape

Rectangular

Size

WarrantyDescription

Ten years

Standard 10 years guarantee.

Uniclass 2015

Pr_30_59_34_14 Carbon steel gatesPrimary

CAWS

Pr_30_59_34_14 Loose laid gas retardant damp proofing

Q40/40 Steel gates/ Gate posts

Q40/560 Steel

Specification data - Carbon steel gates Enhanced data

Dimensions

-

Span

1200 mm.

Up to 1200 mm, non standard dimension on request.

Height

1000 mm.

1200 mm.

1500 mm.

1700 mm.

2000 mm.

Posts

Carbon steel.

CreaZen panels are foreseen to be installed on Bekafix post

Cross section of the post: 70 x 44 mm fixed on wither concrete or base plates.

Gate leaves

Carbon steel palisade.

Finish as delivered

-

Applied finish

Powder coated.

Product Reference

CreaZen Single - Gates

Fixings

Intermediate fixation clamp (plastic), with stainless steel nuts and bolts, Bekafix base plates, corner fixators for angles (10° up to 180°) and closing caps for vertical tubes.

Colour

Green.

RAL 6005 (Moss green).

Grey.

RAL 7016 (Anthracite grey).

White.

RAL 9010 (Pure white).

Black.

RAL 9010 (Pure white).

Other.

All other RAL colours on request.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 1.3
Revit
Revit 2016 1 1.3
Download now from NBS National BIM Library
