Crash Rail db CR125

Verified by manufacturer today

Specialist Door Solutions

SDS Protection CR125 heavy duty slimline durablend™ crashrail.

Jump to:
BIM object icon
+44 (0)1420 543222 Website

Application

Corridor and general wall protection.

Description

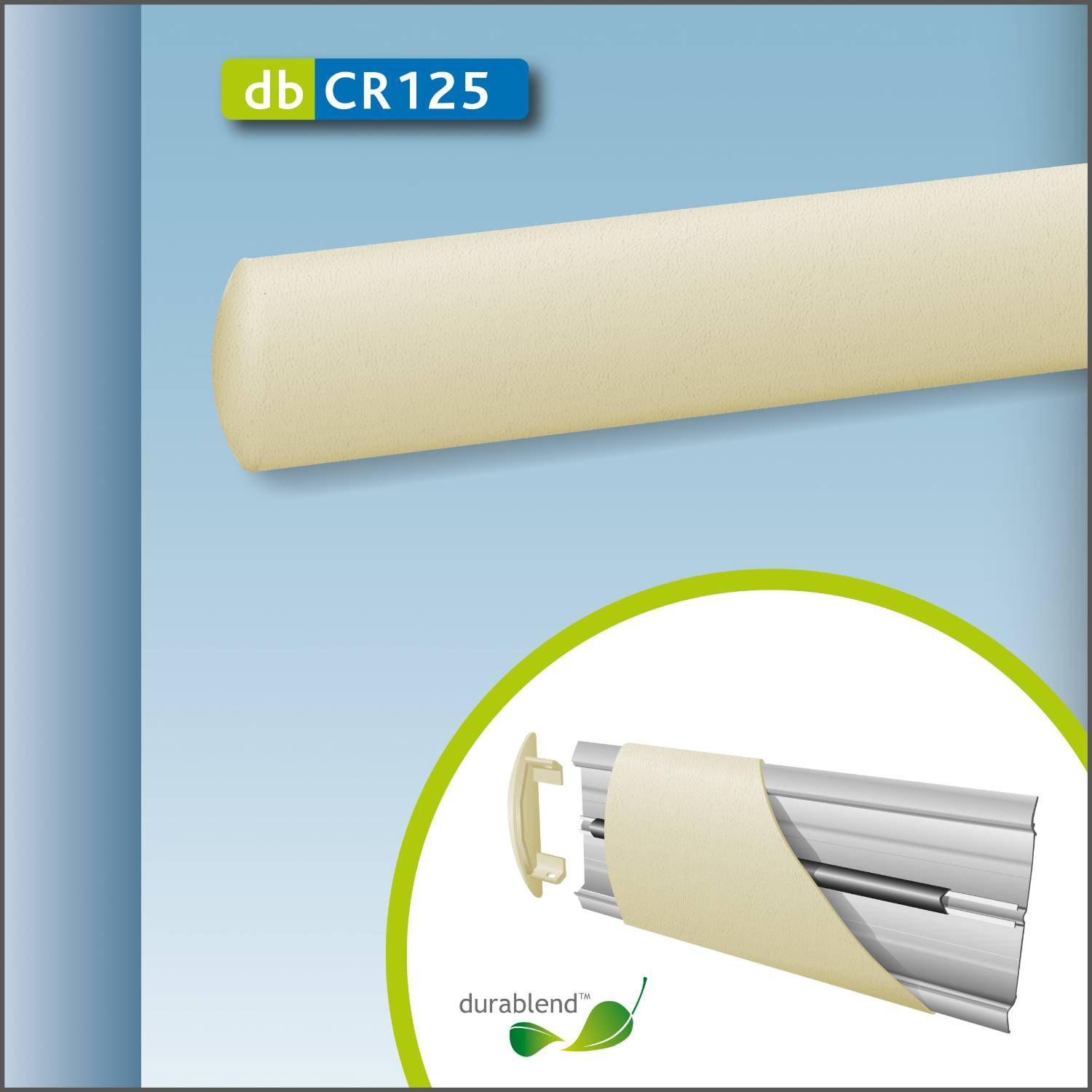

Curved profile crashrail used for providing stylish and effective impact protection to interior walls.


Features and benefits:

  • 125 mm deep, curved face crashrail offering 24 mm projection.
  • Two alternative projections possible with optional mounting brackets.
  • durablend™ cover, endcaps and brackets over aluminium retainer.
  • Continuous concealed shock absorbing bumper.
  • Available in 25 durablend™ colours.
  • Entirely recyclable polyvinyl chloride (PVC) free product.


General information

Color

Other

Available in 10 standard stock colours and 15 semi-standard colours. See SDS Protection website for details.

Material

Aluminium

Retainer.

Shape

Crescent

Length

Bespoke

Width

24 mm

Height

125 mm

Uniclass

Pr_35_90_43_18 Composite protection railsPrimary

CAWS

P20/55 Proprietary

P20/30 Proprietary

P20/170 Proprietary

Specification data - Composite protection rails

Material

Aluminium retainer, durablend™ cover.

Finish

-

Coating

Impregnated with anti-bacterial additives.

Colour

Aqua.

Buttermilk.

China.

Cobble.

Flint.

Gunpowder.

Jade.

Midnight.

Mushroom.

Snowflake.

Apple.

Semi-standard colour.

Carbon.

Semi-standard colour.

Chalk.

Semi-standard colour.

Chocolate.

Semi-standard colour.

Claret.

Semi-standard colour.

Danube.

Semi-standard colour.

Denim.

Semi-standard colour.

Grape.

Semi-standard colour.

Lupin.

Semi-standard colour.

Mandarin.

Semi-standard colour.

Peach.

Semi-standard colour.

Peppermint.

Semi-standard colour.

Primrose.

Semi-standard colour.

Sentry.

Semi-standard colour.

Verdure.

Semi-standard colour.

Size

Depth x thickness.

125 x 24 mm.

Profile

Curved.

Fixing

10 mm spacers.

70 mm mounting brackets.

Directly to wall.

Standard.

Environmental information

Recyclability

Entirely recyclable PVC-free product.

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2016

4

IFC

IFC2X3

3
