Cradle Levelling System, for sheet vinyl finishes

Cradle Levelling System, for sheet vinyl finishes

Junckers Ltd

Sports floor system comprising timber deck, battens, and polypropylene levelling cradles which provide a range of height options. Vinyl finish specified separately from approved product range

Jump to:
+44 (0)1376 534700 www.junckers.co.uk
Description

Sports floor system to EN 14904 category A4, comprising a 22mm thick tongue and groove jointed chipboard deck and laminated timber battens, supported by polypropylene levelling cradles with integral foam pads.

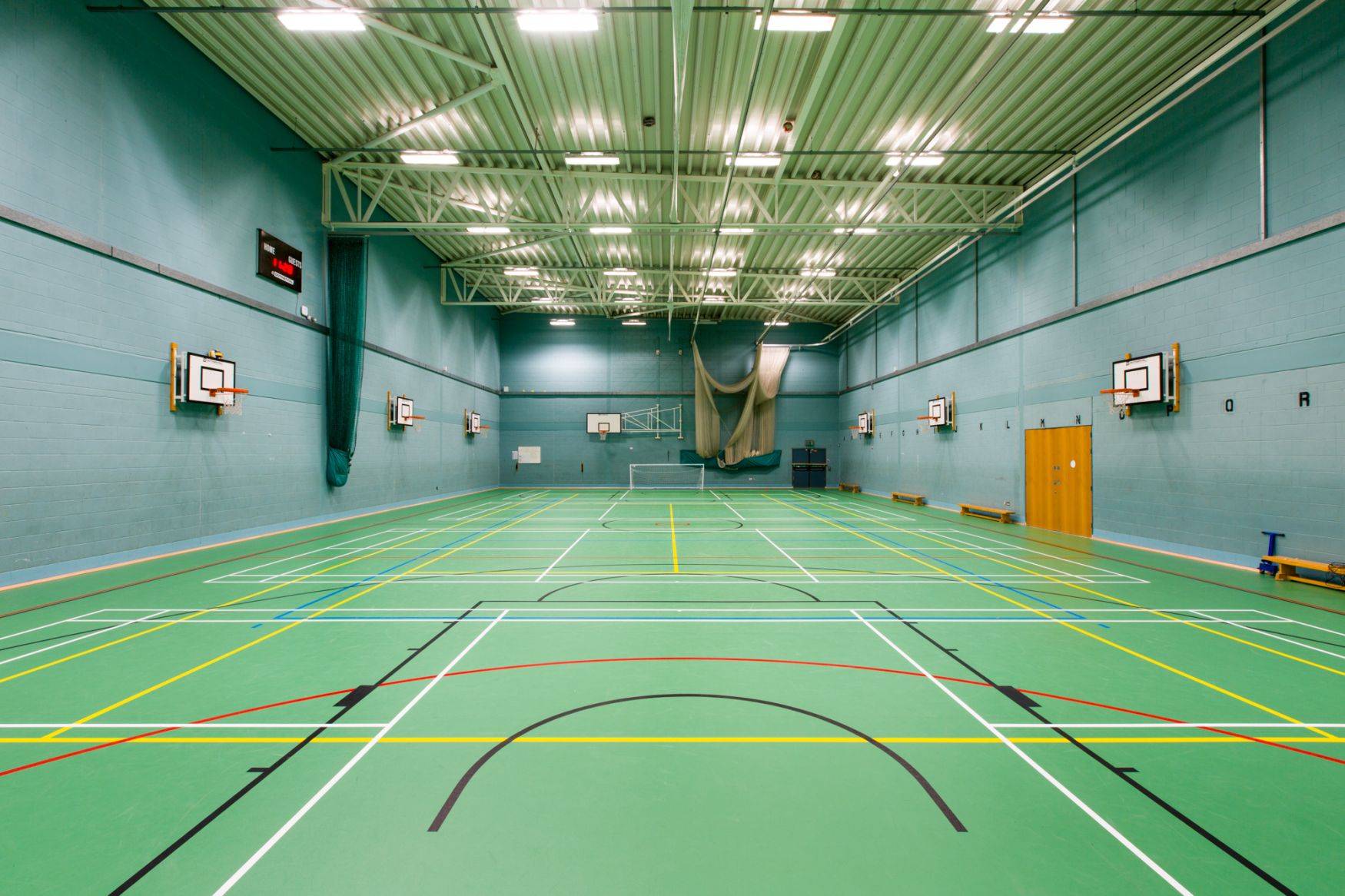

The system is normally laid in a concrete slab base with a polythene moisture barrier on top of the slab. The chipboard deck is fully bonded to the battens with Junckers CtB Adhesive which provides a uniform base. The system has a range of height options starting from 74 mm excluding vinyl floor finish, and is suitable for use on uneven subfloors. Fine adjustment of the floor height is made using purpose made packing pieces, designed to fit the cradles. For use in sports halls, multi purpose halls, dance and activity studios in schools, universities, sports centres and health clubs. Not suitable for wet areas. Manufacturer's guarantee for 10 years.

For use with specified range of sheet vinyl coverings, fully bonded to the timber deck. Sprung floor system complying with EN 14904 category A4 when used with with approved vinyl finish. Complies with design criteria of ESFA for education projects, and Sport England requirements plus EMAS111, ISO 14001. Contact Junckers for details of approved vinyl finishes.

General information

Finish

sheet vinyl, specified separately

Uniclass 2015

Ss_30_20_95_10 Battened wood floating floor systemsPrimary
Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2017 1 2.0
IFC
- 1 2.0
Download now from NBS National BIM Library
