Galvanized 'C' section wall studs prefixed 'CS' from 70 to 340 mm wide. Galvanized channel head and floor track prefixed 'CR' and 'UR' sized to suit wall studs.

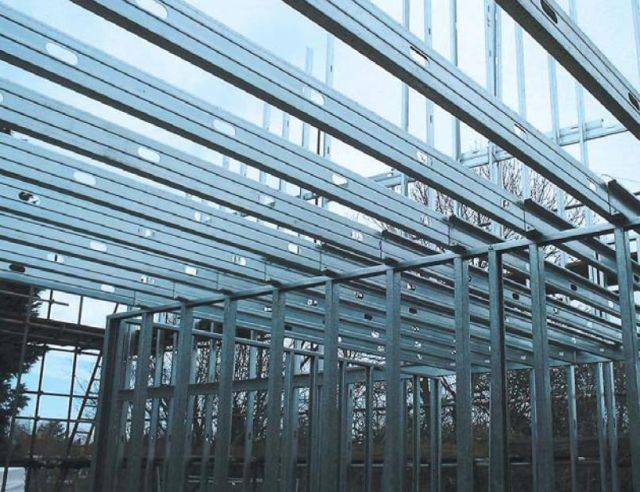

Ayrshire Steel Framing can be used as a self-supporting load bearing structural frame or to form the inner leaf of the external wall of a concrete, or hot rolled steel framed building. The studs act as integral wind posts. The system is designed, for warm frame applications, so that the studs are warm and dry. This ensures long life without the expense of using stainless steel.

With optimal wall thickness, the studs also provide space for wiring and plumbing, support for dry lining and zones for enough insulation to match and exceed the recommended Building Regulation Part L, U value requirements.

The system can use individual components assembled in-situ, or factory assembled into bare or clad panels.

Typical cladding applications and system performance:

  • Insulated render systems.
  • Rainscreen secret fix panels.
  • Rainscreen through-fix panel system.
  • Brick outer leaf.
  • Stone cladding panels.
  • Terracotta tiles on vertical rails.

Sample performance:

  • Thermal U-value: 0.3–0.15 W/m²K.
  • Sound insulation: 48–57 dB (Rw).
  • Fire resistance: 30–120 minutes.
  • Wind loads: Distributed through wall panel to primary building structure.

These figures are based on various combinations of ASF wall studs, drywall boards, insulation and external cladding.

General information
Material

Hot dipped zinc coated steel

Uniclass 2015
Cold-formed galvanized steel sections (Pr_20_76_51_21)Primary
Specification data - Cold-formed galvanized steel sections
Product Reference

CR7012

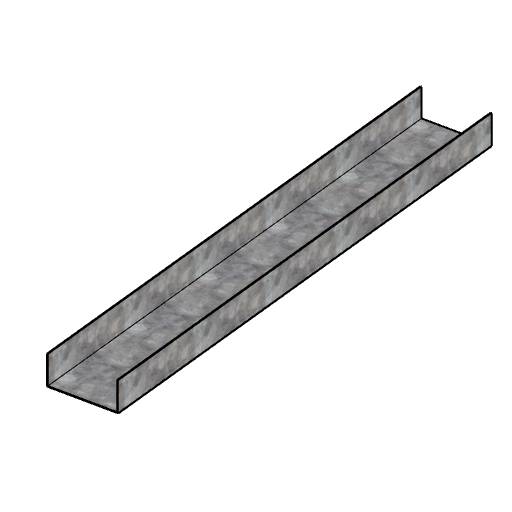

CR 70 channel track, 1.2 mm thick.

CR10012

CR 100 channel track, 1.2 mm thick.

CR15012

CR 150 channel track, 1.2 mm thick.

CR20012

CR 200 channel track, 1.2 mm thick.

CR25012

CR 250 channel track, 1.2 mm thick.

CR29012

CR 290 channel track, 1.2 mm thick.

CR34012

CR 340 channel track, 1.2 mm thick.

CS7012

CS 70 stud, 1.2 mm thick

CS7015

CS 70 stud, 1.5mm thick

CS7020

CS 70 stud, 2.0mm thick

CS10012

CS 100 stud, 1.2 mm thick.

CS10015

CS 100 stud, 1.5 mm thick.

CS10020

CS 100 stud, 2.0 mm thick.

CS15012

CS 150 stud, 1.2 mm thick.

CS15015

CS 150 stud, 1.5 mm thick.

CS15020

CS 150 stud, 2.0 mm thick.

CS20012

CS 200 stud, 1.2 mm thick.

CS20015

CS 200 stud, 1.5 mm thick.

CS20020

CS 200 stud, 2.0 mm thick.

CS25012

CS 250 stud, 1.2 mm thick.

CS25015

CS 250 stud, 1.5 mm thick.

CS25020

CS 250 stud, 2.0 mm thick.

CS29015

CS 290 stud, 1.5 mm thick.

CS29020

CS 290 stud, 2.0 mm thick.

CS34020

CS 340 stud, 2.0 mm thick.

UR7020

UR 70 heavy duty channel track, 2.0 mm thick

UR10020

UR 100 heavy duty channel track, 2.0 mm thick.

UR15020

UR 150 heavy duty channel track, 2.0 mm thick.

UR20020

UR 200 heavy duty channel track, 2.0 mm thick.

UR25020

UR 250 heavy duty channel track, 2.0 mm thick.

UR29020

UR 290 heavy duty channel track, 2.0 mm thick.

UR34020

UR 340 heavy duty channel track, 2.0 mm thick.

URS10020

URS 100 slotted channel track, 2.0 mm thick.

URS15020

URS 150 slotted channel track, 2.0 mm thick.

URS20020

URS 200 slotted channel track, 2.0 mm thick.

Accessories

None

CL100

Deflection head bracket.

CL150

Deflection head bracket.

CL 200

Deflection head bracket.

VB3809

Flat strap bracing.

VB10012

Vertical cross bracing.

Standard product features

Product reference:

- Stud joists:

Available in any transportable length. Service slots are provided as standard in all studs with exception of CS70 range. Slots are 38 x 100 mm long at 610 mm centres.

- Standard (CR), heavy (UR) duty channel track and slotted (URS) channel track:

3.0 m standard length.

- Bracing (VB):

4.0m standard length.

Material:

Manufactured from galvanized steel S450GD + Z275, with minimum guaranteed yield strength of 450 N/mm².

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 5 2.1
Revit
- 5 2.1
Download now from NBS National BIM Library
