CPS-M
Description

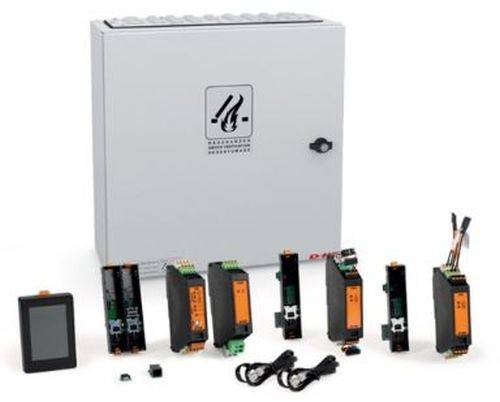

Fully modular smoke and heat exhaust ventilation (SHEV) control panel, which is equipped with the desired load current and CPS-M modules.

Features and Benefits:

  • Variable modular technology for complex position requirements.
  • Flexible system design due to the supporting rail assembly for all modules and additions.
  • Supply connection and communication using integrated plug connectors.
  • Components can be retrofitted in case of building modifications.
  • Configurable SHEV and ventilation functions using D+H software SCS.
  • Maximum of two 10 A drive current for each actuator module.
  • Connection of up to 30 fire detectors or 10 SHEV operation panels for each monitored line plug-in unit.
  • AdComNet bus system for seamless networking of the modules within the CPS-M and further D+H AdComNet components.
  • Flexible use of configurable, digital inputs and outputs.
  • Stabilized output voltage due to power pack technology.

General information
Specification data - Mechanical services control panels

Product Reference

CPS-M1-S

Accessories

None

Alarm devices

Batteries

Module sets

Sensor systems

SHEV operation panels

Standard product features

Technical characteristics:

  • Supply: 230 V AC/ 50 Hz.
  • Output: 24 V DC.
  • Ripple: <50 mVss.
  • Mode of operation: Monitoring pulse operation.
  • Mode of operation: Alarm/ ventilation short-time duty 30%.
  • Protection class: IP 54.
  • Temperature range: -5 to +40°C.
  • Housing: Steel sheet.

Third party certifications
  • VdS: Certificate: G517002
  • VdS: Certificate: 0786-CPR-50680
