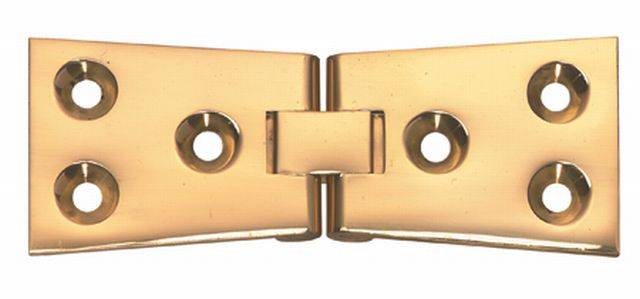

Counterflap hinges
Description

A range of brass counterflap hinges in a variety of sizes and finishes.

General information

Uniclass 2015

Pr_30_36_36_17 Cranked hingesPrimary

CAWS

P21/320 Door hinges

P21/8 Door hinges

Specification data - Cranked hinges

Product Reference

Counterflap hinges

Type

926.86.021

Imitation bronze antique, brass 78 x 25 mm

926.86.022

Polished chrome, brass 78 x 25 mm

926.86.024

Satin chrome, brass 78 x 25 mm

926.86.028

Polished brass, brass 78 x 25 mm

926.95.201

Imitation bronze antique, brass 102 x 32 mm

926.95.202

Polished chrome, brass 102 x 32 mm

926.95.204

Satin chrome, brass 102 x 32 mm

926.95.208

Polished brass, brass 102 x 32 mm

926.95.211

Imitation bronze antique, brass 114 x 38 mm

926.95.212

Polished chrome, brass 114 x 38 mm

926.95.214

Satin chrome, brass 114 x 38 mm

926.95.218

Polished brass, brass 114 x 38 mm

926.86.031

Imitation bronze antique, brass 75 x 34 mm radius end

926.86.032

Polished chrome, brass 75 x 34 mm radius end

926.86.034

Satin chrome, brass 75 x 34 mm radius end

926.86.038

Polished brass, brass 75 x 34 mm radius end

Accessories

014.32.111

3.5 x 12 mm, bronze, Hospa special fixing screws

014.32.211

3.5 x 12 mm, chrome plated, Hospa special fixing screws

014.32.411

3.5 x 12 mm, satin chrome, Hospa special fixing screws

014.32.811

3.5 x 12 mm, polished brass, Hospa special fixing screws

014.32.122

4 x 20 mm, bronze, Hospa special fixing screws

014.32.222

4 x 20 mm, chrome plated, Hospa special fixing screws

014.32.422

4 x 20 mm, satin chrome, Hospa special fixing screws

014.32.822

4 x 20 mm, polished brass, Hospa special fixing screws

Standard product features

Properties:

  • Material: Brass with brass pin.
  • Finish: Polished brass, polished chrome, satin chrome or imitation bronze antique.
  • Fixing screws to be ordered separately: Hospa special screws.

Product Options

78 x 25 mm counterflap hinges:

  • Dimensions: 33 x 78 mm x 3 mm thick overall.
  • Fixing screws: 3.5 mm diameter.

102 x 32 mm counterflap hinges:

  • Dimensions: 37 x 102 mm x 3 mm thick overall.
  • Fixing screws: 4 mm diameter.

114 x 38 mm counterflap hinges:

  • Dimensions: 45 x 114 mm x 4 mm thick overall.
  • Fixing screws: 4 mm diameter.

75 x 34 mm radius end counterflap hinges:

  • Dimensions: 34 x 75 mm x 3 mm thick overall.
  • Fixing screws: 4 mm diameter.

Accessories:

Hospa special fixing screws:

  • Brass countersunk head with Pozidriv® cross slot.
  • Sizes: 3.5 mm diameter x 12 mm and 4 mm diameter x 20 mm.
  • Finishes: Available in 4 finishes to match the hinges.
