Counterflame

Counterflame

Interfloor Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Underlay suitable for the double-stick and stretch-fit installation of carpets.

Jump to:
+44 (0)1706 238820 www.interfloor.com

Description

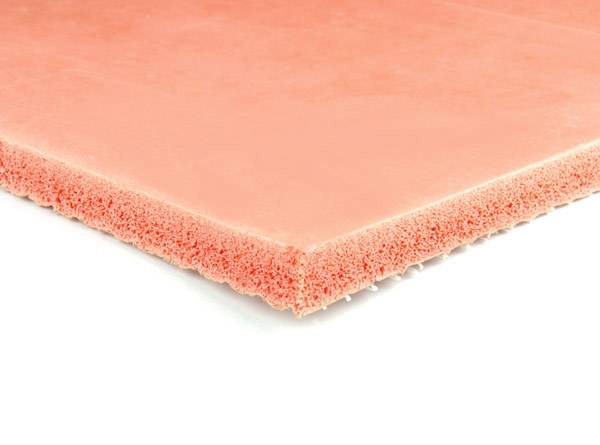

Underlay suitable for the double-stick and stretch-fit installation of carpets.

Features and benefits:

  • Latex foam.
  • Suitable for flame retardant applications.
  • End use classification (to BS 5808): HC/U, heavy contract use.

General information

Uniclass 2015

Pr_35_57_11_11 Cellular plastics underlaysPrimary

CAWS

M50/170 Carpeting

M50/25 Carpeting

Product range

Carpet Underlays

Specification data - Cellular plastics underlays

Product Reference

Counterflame, TACF110013

Standard product features

Nominal square weight:

1600 g/m².

Roll area:

15.07 m² (1.37 x 11 m).

Nominal thickness:

6.25 mm.

Odour:

No objectionable odour.

Colour/ backing:

Red/ Bacloc backing.

Thermal resistance:

0.84 togs.

Impact sound reduction (Delta Lw):

32 dB.

Emissions:

Meets low VOC emission criteria.

Technical characteristics:

  • Work of compression (minimum 50 J/m²): 93.00 J/m².
  • Retention of work of compression (minimum 40%): 89%.
  • Loss in thickness after dynamic loading (maximum 15%): 11.2%.
  • Loss in thickness after static loading (maximum 15%): 5.70%.
  • Resistance to cracking (not greater than 50 mm): Pass.
  • Breaking strength (length/ width, minimum 40N): 96/ 51 N.
  • Extension under force (length/ width, maximum 10%) @ 40N: 1.6/ 0.5%.

Flammability:

  • Hot metal nut test: Low radius of effects of ignition.
  • French radiant panel: Class M3.
  • IMO Surface flammability test: Pass.

Smoke and Toxicity:

  • IMO Smoke and toxicity test: Pass.
  • NES Smoke index of combustion products: 83.26.
  • NES Toxicity index of combustion products: 1.31.

Third party certifications

  • Bureau Veritas: 10297/C0 EC
  • CRI: Green Label Plus
  • Certificate of Type Approval: Directive 96/98 EC on Maritime Equipment
