This product is no longer available

Corporation Bollard
Description

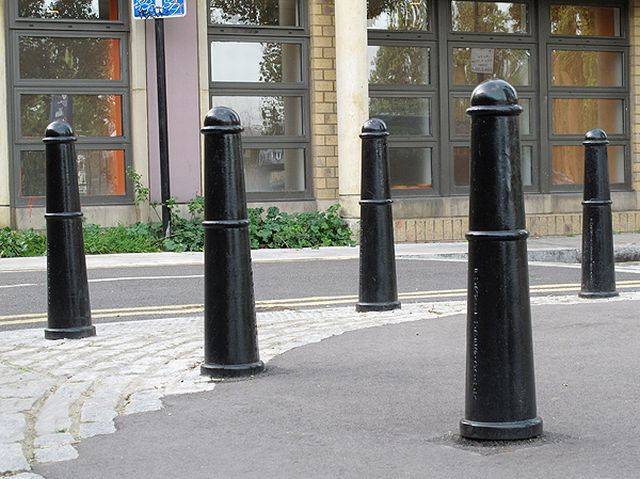

The Corporation is a cannon-style cast iron bollard with a primed finish. It is suitable for both traditional and contemporary settings and is available in a standard or slimline version. Reflective tape is also available for applications that require high visibility.

The Corporation COR 741 AR bollards can aid the visually impaired and assist with the requirements of the BS 8300 and adherence to the Disability Discrimination Act.

General information
Finish

Primed. It is recommended that top coats are applied on site after installation on primed products

Specification data
Product Reference

COR 740

Cast iron, slimline.

COR 740 AR

Cast aluminium, slimline removable.

COR 741 AR

Cast aluminium, removable.

Socket

Not required

FI75

Small composite socket for 75 mm diameter bollards.

FI115

Large composite socket for 115 mm diameter.

SOCKSS

Small steel socket for bollards under 170 mm diameter.

SOCKLS

Large steel socket for bollards of at least 170 mm diameter.

Accessories

None

CHNS

Steel spiked chain link, galvanized.

CHNP

Steel plain chain link, galvanized.

EBAB

Steel M10 eye bolt, bright zinc plated.

SLNK

Steel split link, galvanized.

TAPE C

Red/ white chevron reflective tape.

TAPE R

Red reflective tape.

TAPE W

White reflective tape.

TAPE Y

Yellow reflective tape.

Standard product features

Technical characteristics:

- COR 740:

  • Above ground: 815 mm.
  • Below ground: 230 mm.
  • Diameter: 150 mm.
  • Weight: 35 kg.
  • Fixing: Root fixed.

- COR 740 AR:

  • Above ground: 815 mm.
  • Below ground: 320 mm.
  • Diameter: 150 mm.
  • Weight: 18 kg.
  • Fixing: Removable.

- COR 741 AR:

  • Above ground: 1060 mm.
  • Below ground: 320 mm.
  • Diameter: 230 mm.
  • Weight: 30 kg.
  • Fixing: Removable.

Finish:

Primed. It is recommended that top coats are applied on site after installation on primed products.

Product Options

Socket:

  • Standard steel socket hinge plate for locking with an FB14 padlock or similar.
  • F1 series sockets can accommodate standard size circular bollards, or the bollards can include a welded on circular spigot for large diameter circular bollards and other shapes, such as square.
