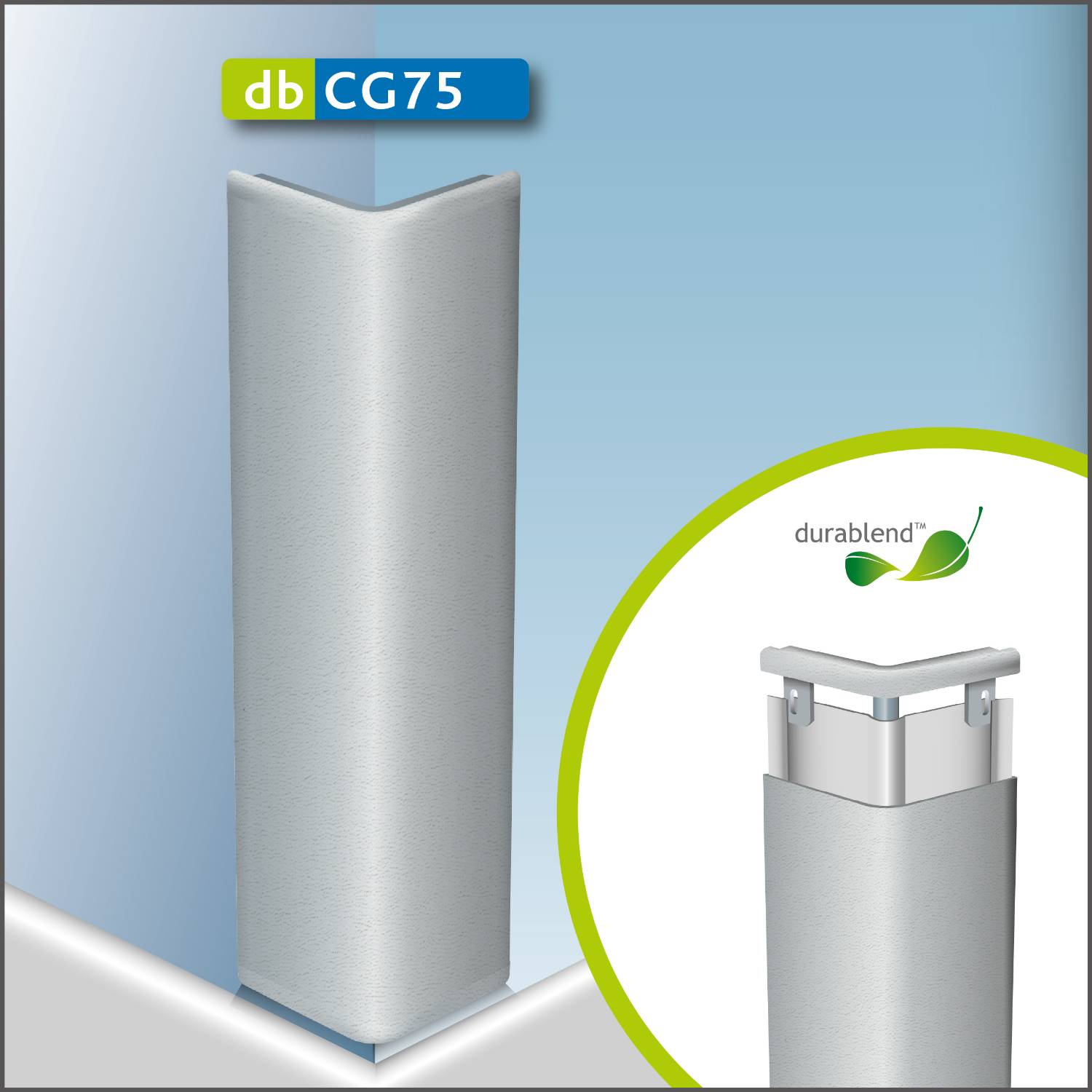

Corner Guard db CG75
Application

Hospitals.

Description

Mechanically fixed corner guard with 75 mm flanges, providing heavy duty impact protection for vulnerable corners within busy pedestrian zones.

Features and benefits:

  • 75 mm flanges, overall length variable to suit site requirements.
  • durablend™ cover and endcaps over aluminium retainer.
  • Cover designed to flex upon impact.
  • Supplied complete with top and bottom end caps.
  • Available in 25 durablend™ colours.
  • Entirely recyclable polyvinyl chloride (PVC) free product.

Application:

Hospitals.

General information

Color

Available in 10 standard stock colours and 15 semi-standard colours. See SDS Protection website for details

Features

Top and bottom end caps supplied, designed to flex on impact

Designed to flex on impact. Designed for use in buildings with high footfall. Manufactured from PVC-free materials and recyclable components . Chemical resistance: Tested in accordance with ASTM D 543-06

Material

Retainer: Aluminium; Cover: dFend durablend

Retainer: Aluminium. Cover: durablend™. Endcaps: durablend™

Uniclass 2015

Pr_35_90_43_15 Corner guardsPrimary

CAWS

P20/170 Proprietary

P20/30 Proprietary

P20/55 Proprietary

Specification data - Corner guards

Product Reference

Corner Guard db CG75

Finish

-

Colour

Aqua

Buttermilk

China

Cobble

Flint

Gunpowder

Jade

Midnight

Mushroom

Snowflake

Apple

Semi-standard colour.

Carbon

Semi-standard colour.

Chalk

Semi-standard colour.

Chocolate

Semi-standard colour.

Claret

Semi-standard colour.

Danube

Semi-standard colour.

Denim

Semi-standard colour.

Grape

Semi-standard colour.

Lupin

Semi-standard colour.

Mandarin

Semi-standard colour.

Peach

Semi-standard colour.

Peppermint

Semi-standard colour.

Primrose

Semi-standard colour.

Sentry

Semi-standard colour.

Verdue

Semi-standard colour.

Texture

Cashmere texture

Fixing

Mechanically fixed

Recyclability

Entirely recyclable PVC-free product

Standard product features

Colour:

Available in 10 standard stock colours and 15 semi-standard colours. See SDS Protection website for details.

Features:

Top and bottom end caps supplied, designed to flex on impact designed to flex on impact. Designed for use in buildings with high footfall. Manufactured from PVC-free materials and recyclable components. Chemical resistance: Tested in accordance with ASTM D 543-06.

Finish:

Cashmere texture.

Material:

Retainer: Aluminium. Cover: durablend™.

Size:

75 mm flanges, overall length variable to suit site requirements.

Environmental information

Recyclability

Entirely recyclable PVC-free product

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 3 1.3
Revit
Revit 2016 4 2.0
Download now from NBS National BIM Library
