CORE Pro Edge
Verified by manufacturer 4 days ago
100 mm edging height
100 mm edging height
Aluminium landscape edging.
Application
Designed to edge and demarcate asphalt, resin bound, and other hard landscape surfaces. It is particularly suitable for use in parks, playgrounds, and around building perimeters.
- Resin bound/ bonded aggregates.
- Wet pour rubber/ safety surfaces.
- Hot macadam (up to 180°C).
- Porcelain paving.
- Slabs and paving.
- Stabilised aggregate / loose aggregate.
- Artificial grass.
- Lawns, flowerbeds and borders.
Description

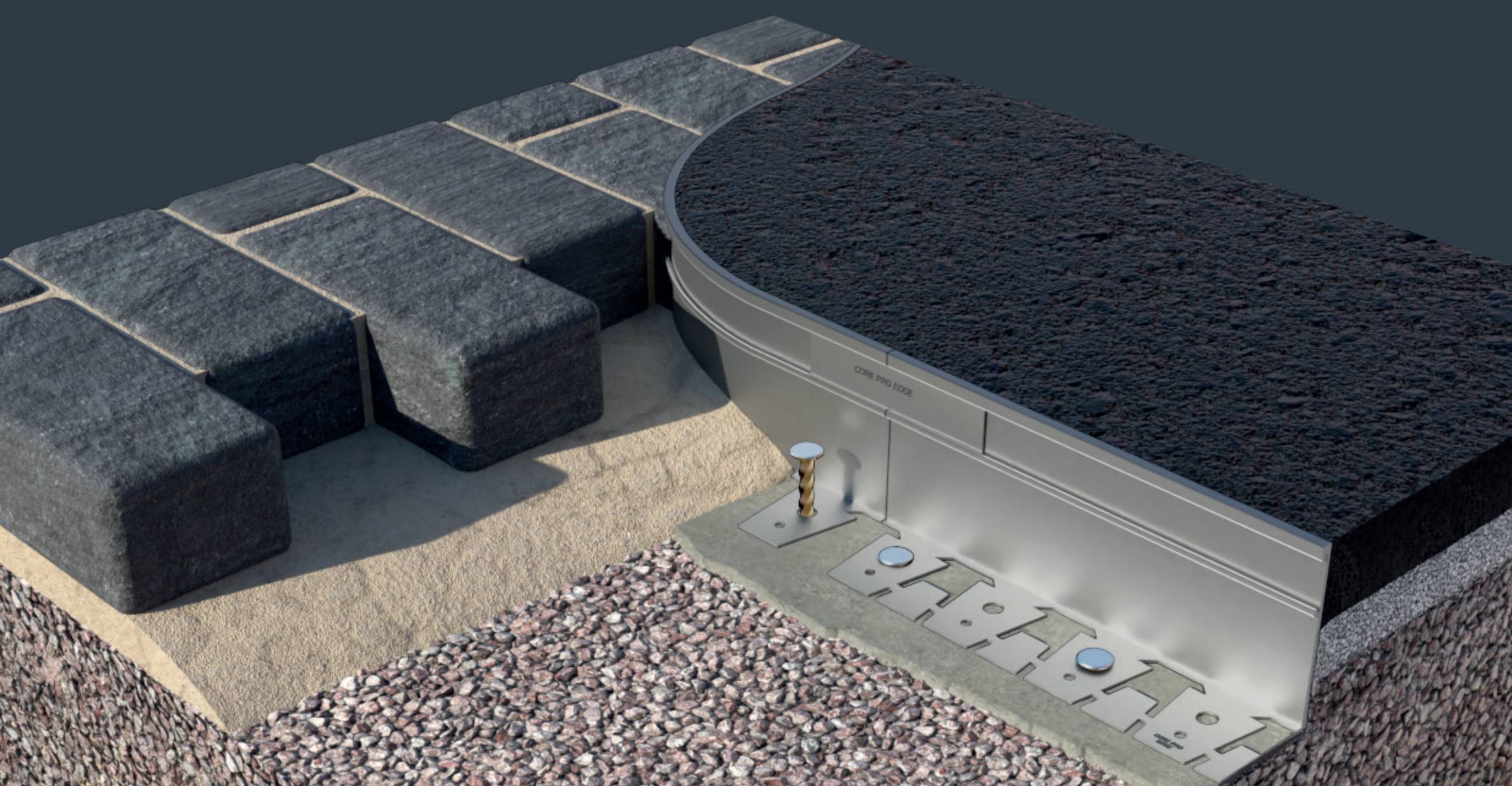

CORE PRO EDGE is a two-in-one aluminium edge restraint for a variety of hard landscape surfaces, available in four face heights in a 6063A marine- grade tempered anodised finish. The easy snap out tabs mean that you can create perfect straight lines and smooth sweeping curves where required - all from one profile.
The product is made using Aluminium Alloy 6063A, a high-performance alloy that possesses a high natural resistance to corrosive conditions in normal environments. Additionally, it has a higher resistance to heat than other aluminium alloys, which makes it suitable for use with hot asphalt or tarmacadam surfacing up to 180°C.
Features and benefits:
- Highest quality marine grade architectural aluminium alloy.
- Scratch-resistant anodised surface finish.
- Re-engineered for maximum strength and versatility.
- Create sweeping curves and straight lines from one profile.
- Less waste, easy to install and unbeatable value.
General information
Color | Silver |
Finish | Anodized |
Material | Aluminium |
Length | 2200 mm |
Height | 18 mm 24 mm 65 mm 100 mm 120 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q22/17 Porous asphalt concrete paving Q22/15 Asphalt concrete paving Q22/10 Asphalt concrete paving Q23/20 Resin bound aggregate surfaces Q22/185 Proprietary surface treatment to existing paving Q22/175 Proprietary pedestrian paving Q22/170 Proprietary vehicular paving Q23/220 Two coat proprietary fibre reinforced bonded chippings Q23/226 Proprietary resin bound chippings overlay Q30/560 Grass edging strips Q23/225 Proprietary resin bound chippings |
Specification data - Metal edgings
Classification data | |
Material and finish | Aluminium (6063A), anodized. Powder coated. Guidance for specification option: Optional, consult with manufacturer for details and insert requirements. |
Colour | Silver. Guidance for specification option: Standard |
Edging | |
Form | Straight. Guidance for specification option: Bent on site to form precise angles. |
Length (minimum) | 2200 mm. |
Size | 100 mm. Guidance for specification option: The 100 mm profile is commonly paired with block paving or macadam - however, as with all of the profiles, they can be used for anything.
|
Sustainability data
Material | Aluminium |
Recyclability | 100% Recyclable |
