Heavy duty gravel driveway stabilizer for up to 20% gradient.

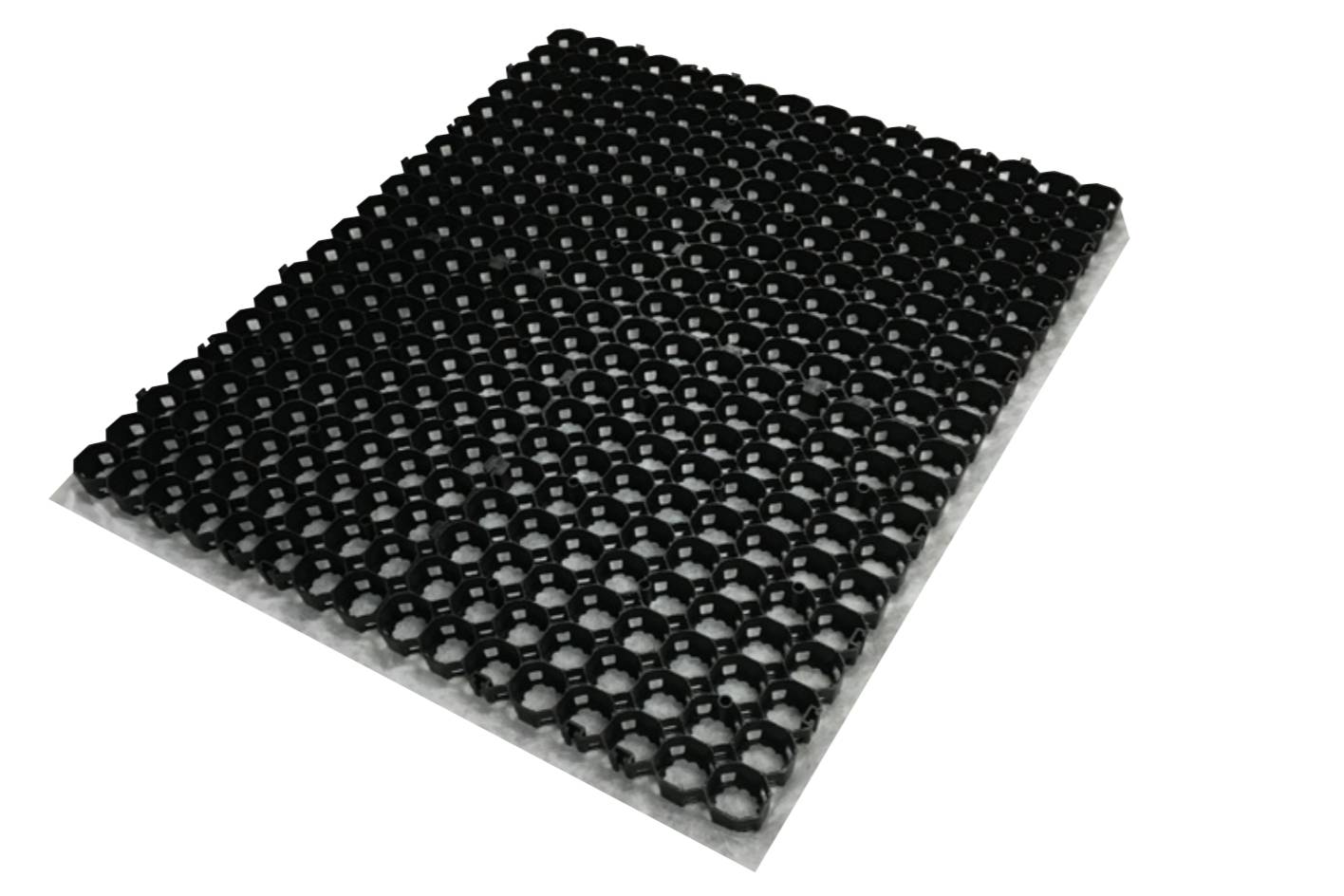

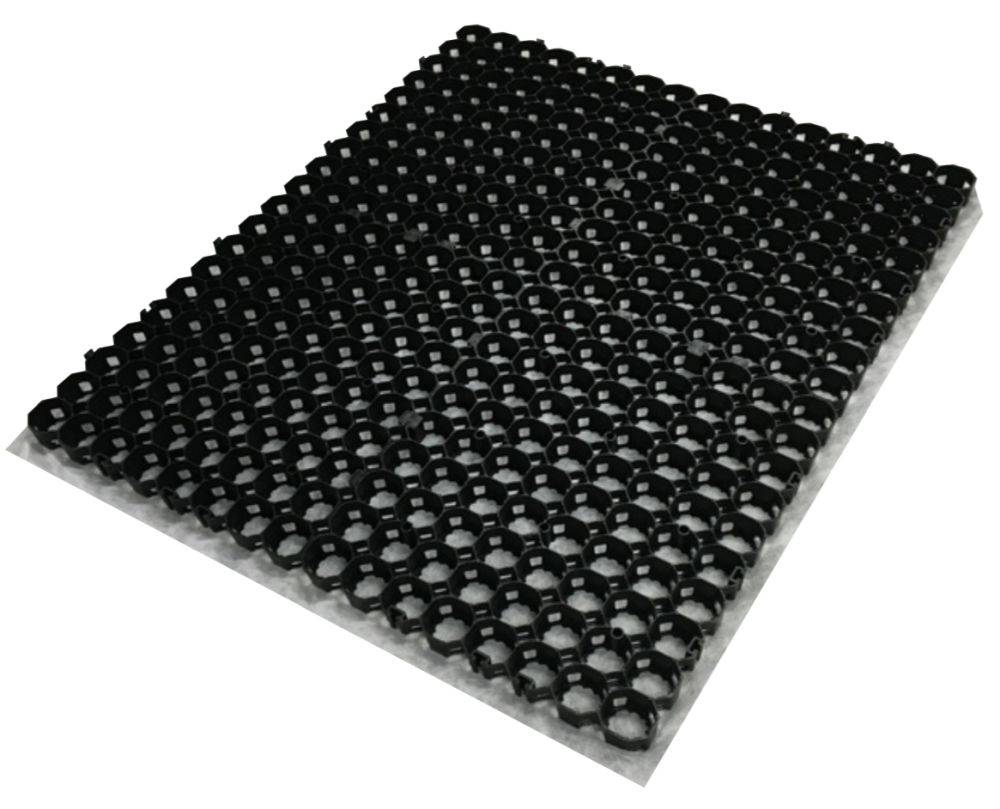

Gravel stabilizer most frequently used for driveways and private access roads with gradients of up to 20% (1 in 5). This grid is capable of taking heavier vehicles on a regular basis and occasional HGV through traffic. The large cell is designed to take up to 28 mm angular aggregate.
The sheets are supplied with a 50 g/m² non-woven weed membrane heat welded to the underside of the grid to improve surface durability by preventing below-surface weed growth and stopping gravel from migrating under the cell wall or into the sub base.
The sheets are durable and flexible, bending slightly to follow the contour of the ground for quick and easy installation. Each sheet has an interlocking mechanism on all four sides that allows all adjacent panels to be connected in every direction. This creates a continuous matrix across the entire surface.
This grid has a 10 mm foot at the base of the cell to evenly distribute the traffic load and cylindrical columns that allow pinning for steeper gradients (20%) using our galvanised 9 x 225 mm steel pins.
Features and benefits:
Application:
Color | Black |
Features | Easy to install, no weeds, line markings, strong, low cost, stabilises gravel |
Finish | Grid |
Material | Recycled Polypropylene |
Shape | Rectangular sheet |
Size | 40 x 60 mm |
Uniclass 2015 | |
CAWS | Q25/350 Plastics pavers |
Product Reference | CORE Drive - Gravel Driveway Stabiliser 60-40 HDR |
Physical properties | - |
Material | Recycled polypropylene |
PhysicalPropertiesColour | Black |
Top surface finish | Aggregate |
Profile | - |
PhysicalPropertiesProfilePaverType | 20 mm graded (maximum 24 mm) aggregate |
PhysicalPropertiesProfileInterlockingFeatures | Socket & Pin (all four sides) with attached 50 g/m² non-woven membrane |
Dimensions | - |
Plan size | (1150 x 1000 mm) 1.15 m² |
Thickness (minimum) | 40 mm (width 60mm) |
Pins | Not requiredOptional. 225 mm galvanized pins |
Standard product features | Colour: Black Features: Easy to install, no weeds, line markings, strong, low cost, stabilizes gravel. Material: Recycled polypropylene. Shape: Rectangular sheet. Size: 40 x 60 mm. |
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | - | 2 | 2.1 |
![]() | - | 2 | 2.1 |
