CORE Drive - Gravel Driveway Stabiliser 50-30
Application

  • Sloping driveway (up to 1 in 10),
  • Paths, patios and walkways,
  • Summer house/ shed base,
  • Disabled friendly access routes.

Description

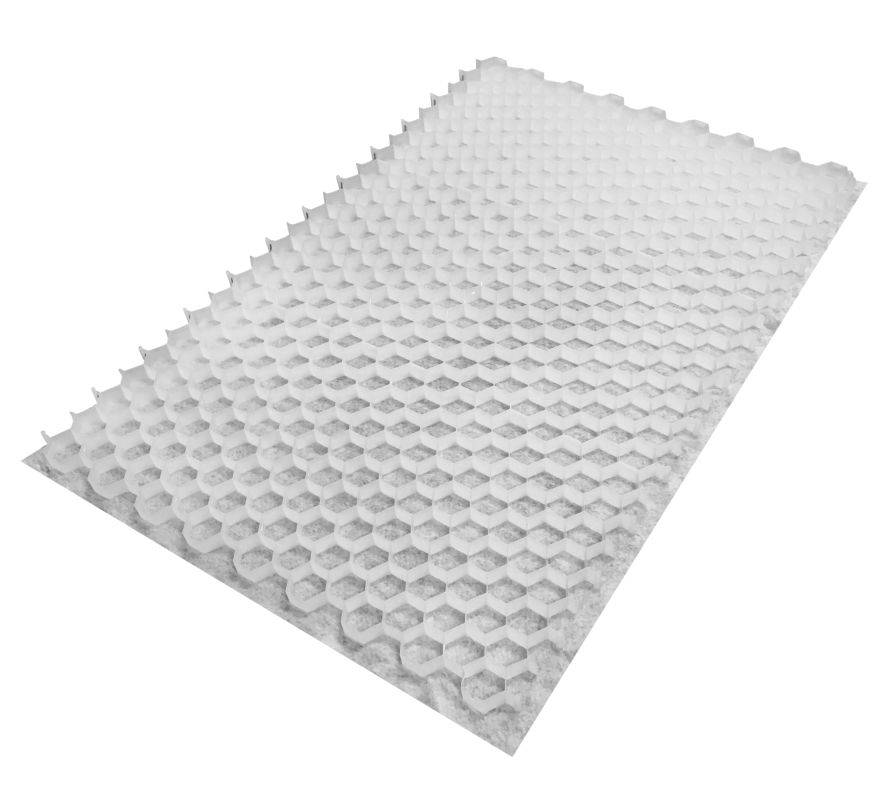

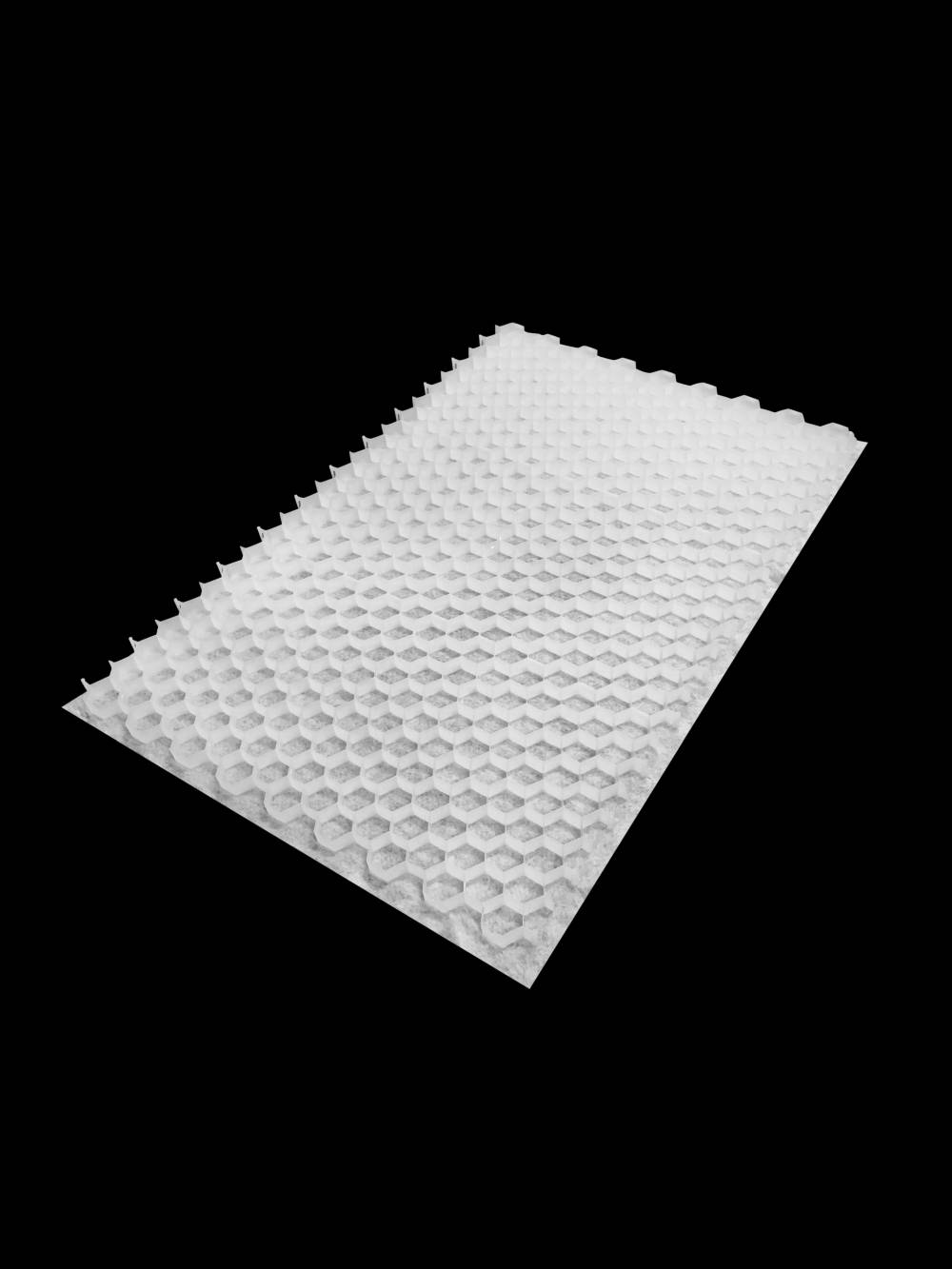

Most frequently used for light commercial and domestic driveways with up to a 10% gradient (1 in 10). It is designed for angular aggregates up to 24 mm and is manufactured from white virgin polypropylene material. Highly durable and flexible; making it ideal for stabilizing gravel on inclines.

The sheets are supplied with an 80 g/m² non-woven weed membrane heat welded to the underside of the grid to improve surface durability by preventing below-surface weed growth and stopping gravel from migrating under the cell wall or into the sub base.

The sheets are flexible, bending slightly to follow the contour of the ground for quick and easy installation. Each sheet also has an interlocking mechanism on all four sides that allows all adjacent panels to be connected in every direction. This creates a continuous matrix across the entire surface, so there is no need to pin or secure individual sheets to the ground.

CORE Drive can be installed as a new porous surface or over existing hard surfaces such as tarmacadam, concrete or compacted gravel with minimal preparation.

Features and benefits:

  • Available in two sheet sizes.
  • Suitable for line markings.
  • Stops weed growth.
  • DDA compliant.
  • Stabilizes gravel.
  • Strong.
  • Eco-friendly.
  • SUDS compliant.
  • Low cost.
  • Easy to install.

Cell:

  • Wall thickness: 1.2 mm.
  • Depth: 30 mm.
  • Width: 50 mm.

Aggregate coverage:

16–18 m²/tonne.

Application:

  • Sloping driveway (up to 1 in 10),
  • Paths, patios and walkways,
  • Summer house/ shed base,
  • Disabled friendly access routes.

General information
Color

White

Features

Equestrian, parking and access roads

Finish

Black HDE

Material

Virgin Polypropylene

Shape

rectangular interlocking sheet

Size

30 x 1200 x 800 mm

30 x 2400 x 1200 mm

Uniclass 2015
Pr_25_93_60_61 Plastics cellular paversPrimary
CAWS

Q25/350 Plastics pavers

Specification data - Plastics cellular pavers
Product Reference

CORE Drive - Gravel Driveway Stabiliser 50-30 Small

CORE Drive - Gravel Driveway Stabiliser 50-30 Large

Physical properties -
Material

Virgin polypropylene

PhysicalPropertiesColour

White

Top surface finish

Aggregate

Profile -
PhysicalPropertiesProfilePaverType

Angular aggregates up to 24 mm

PhysicalPropertiesProfileInterlockingFeatures

Socket & Pin (all 4 sides) with Attached 80 gsm non-woven membrane

Dimensions -
Plan size

1200 x 800 mm

0.96 m².

2400 x 1200 mm

2.88 m².

Thickness (minimum)

30 mm

Cell Size

30 x 50 mm

Standard product features

Colour:

White.

Features:

Ultra thin cell wall, sophisticated clipping mechanism, attached weed membrane .

Material:

Virgin polypropylene.

Shape:

Rectangular interlocking sheet.

Size:

30 x 1200 x 800 mm, 30 x 2400 x 1200 mm.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 2 2.1
Revit
- 2 2.1
Download now from NBS National BIM Library
