Description

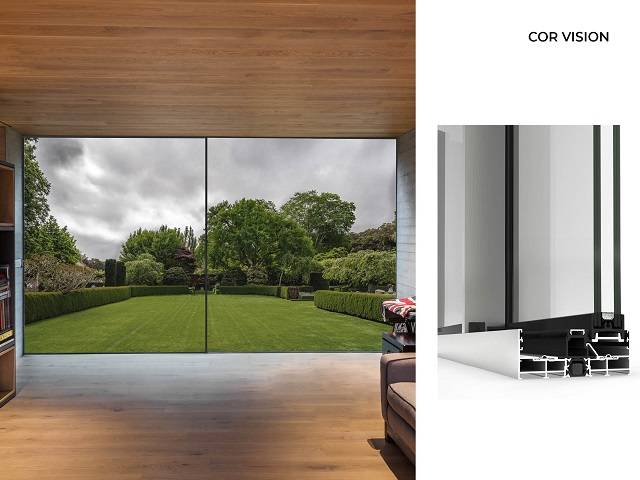

Minimalistic sliding door system suitable for large dimensions, creating maximum luminosity with the minimum sight view of aluminium. It is possible to cover large openings with a glass surface of 94%.

Features and benefits:

  • Constructed from aluminium alloy 6063 T5.
  • Accessories and hardware supplied by STAC, painted in the same colour as the aluminium profiles.
  • Sliding rail elements are constructed from stainless steel to ensure a smooth slide and a longer lifespan.
  • Water-tightness ensured by brushes, set of covers and wind-stoppers in the interlocking profile.
  • Optional Vision Security locking is available, flush in the sash profile.
  • Optional flush floor, open 90° corner solution (inner or outer rail; positive or negative angle). Consult manufacturer for details.
  • Optional supplementary profile and channel for concealed drainage - exposed area configuration.

General information
Size

As drawing

Insert reference.

As schedule

Insert reference.

Material

Aluminium alloy 6063 T5 profiles, including insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass (24 mm long in frames and 16 mm in sashes)

Uniclass 2015
Sliding door and partition sets (Pr_30_59_24_80)Primary
Specification data - Sliding door and partition sets
Product Reference

COR VISION Sliding Door

Size

As drawing

Insert reference.

As schedule

Insert reference.

Configuration

Two sashes

Three sashes

Four sashes

Six sashes

Rails

Two rails

Three rails

Glazing

Insert requirement, available up to 30 mm thickness.

Finish -
FinishType

Anodized

15–25 μ dependent on the class (Class 15, Class 20, Class 25), guaranteed by EWAA-EURAS Standard.

Polyester powder coated

Insert requirement, quality guaranteed by QUALICOAT Standard, with a thickness in the interval between 60–100 μ.

Colour

Insert requirement or insert 'Not applicable' for Anodized.

Hardware/ Accessories

Insert requirements, supplied by STAC, painted in the same colour as the aluminium profiles.

Standard product features

Material:

Aluminium alloy 6063 T5 profiles, including insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass (24 mm long in frames and 16 mm in sashes).

Profile thickness:

1.7 mm.

Depth:

  • Frame: 116 mm (two rails); 182 mm (three rails).
  • Sash: 37 mm.
  • Interlocking profile with only 20 mm of sight line.

Maximum weight per sash:

320 kg.

Thermal transmittance:

  • Average section (Uf): 3.9 W/m²K.
  • Door (Uw): ≥1.3 W/m²K.

Acoustic insulation (maximum):

Rw = 41 dB(A).

Performance (based on nine panels, 3 x 3.5 m):

  • Air permeability (to BS EN 12207): Class 4.
  • Water tightness (to BS EN 12208): Class 7A.
  • Wind resistance (to BS EN 12210): Class C5.

Product Options

Drawing:

Indicate whether standard sliding, pocket or open 90° corner solution.

Size:

Available up to 2500 x 3000 mm (w x h) per sash (maximum sash surface of 6 m²).
