Description

Euro-groove aluminium hinged window system with a basic depth of 70 mm.

Features and benefits:

  • Constructed from aluminium alloy 6063 T5.
  • Accessories and hardware supplied by STAC, painted in the same colour as the aluminium profiles.
  • Optional supplementary profile for concealed drainage.
  • Conceived with the objective of satisfying the needs of a wide market segment for a cost competitive window system.
  • Simple but versatile, providing a high degree of energy efficiency.

General information

Size

As drawing

Insert reference.

As schedule

Insert reference.

Material

Aluminium alloy 6063 T5 profiles, including 35 mm long insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass and perimeter polyolefin foam in rebate zone, as well as the interior of frames and sashes

Uniclass 2015

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium window units

Product Reference

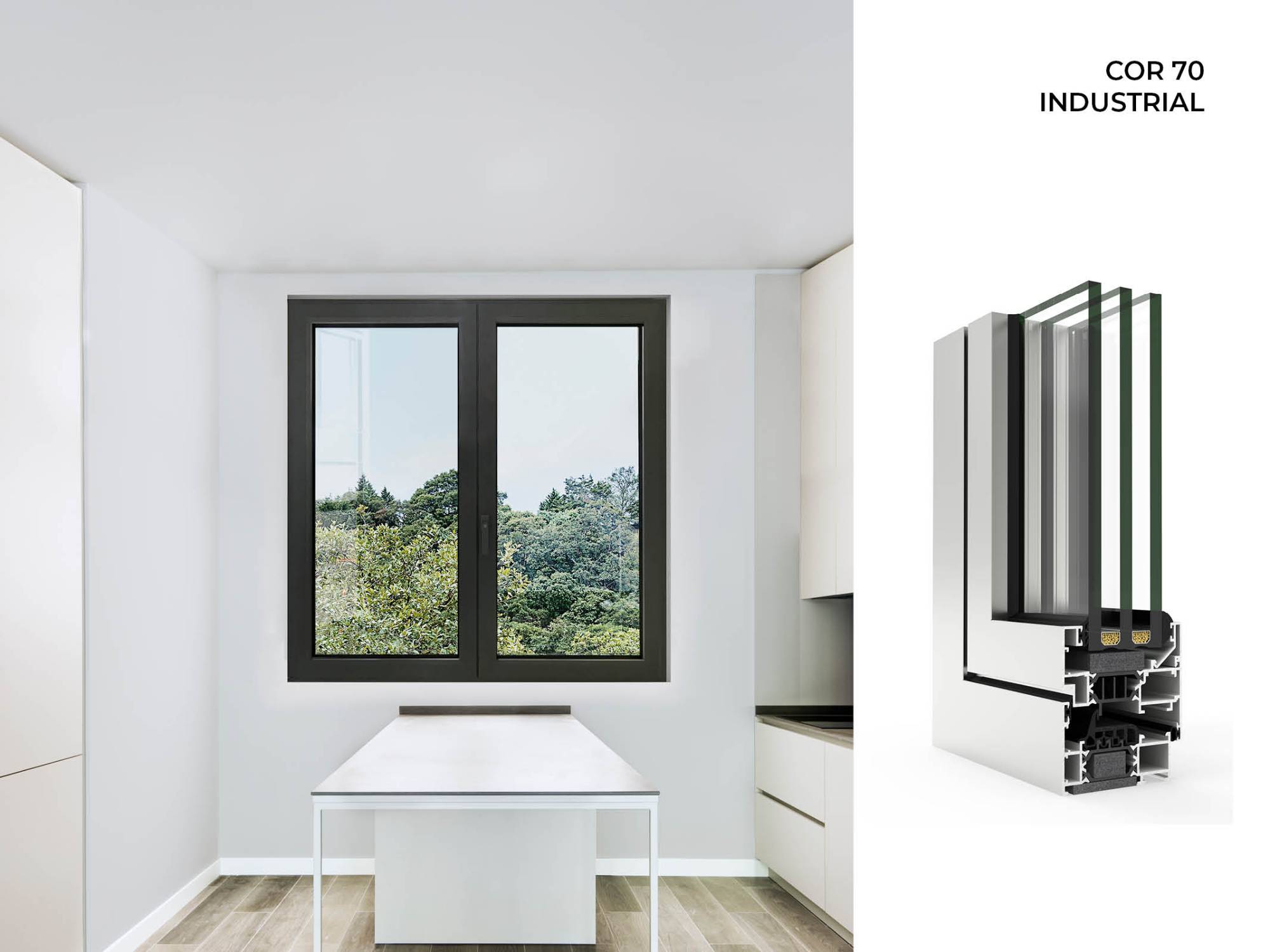

COR 70 Industrial Hinged Window

Size

As drawing

Insert reference.

As schedule

Insert reference.

Glazing

-

Configuration

Bottom hung, inwards opening

Fixed

Pivoting

Side hung, inwards opening

Side hung, outwards opening

Tilt and slide, inwards opening

Tilt and turn, inwards opening

Top hung, outwards opening

Thickness

Insert requirement, maximum thickness of 55 mm.

Finish

-

Type

Anodized

15–25 μ dependent on the class (Class 15, Class 20, Class 25), guaranteed by EWAA-EURAS Standard.

Polyester powder coated

Insert requirement, quality guaranteed by QUALICOAT Standard, with a thickness in the interval between 60–100 μ.

Colour

Insert requirement or insert 'Not applicable' for Anodized.

Gaskets with vulcanized corners

Not required

Required

Burglary resistance (to BS EN 1627)

None

WK2 (RC2) certified system

Using EVO Security hardware by STAC – SKG 2 and security glazing.

Hardware/ Accessories

Insert requirements, supplied by STAC, painted in the same colour as the aluminium profiles. See 'Options' for details.

Standard product features

Material:

Aluminium alloy 6063 T5 profiles, including 35 mm long insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass and perimeter polyolefin foam in rebate zone, as well as the interior of frames and sashes.

Profile thickness:

  • Window profile: 1.5 mm.
  • Balcony profile: 1.7 mm.

Depth:

  • Frame: 70 mm.
  • Sash: 78 mm.

Maximum weight per sash:

160 kg.

Gaskets:

Three ethylene-propylene diene monomer (EPDM) seals and co-extruded centre gasket.

Thermal transmittance:

  • Frame and sash (Uf): 1.9 W/m²K.
  • Window (Uw): ≥0.9 W/m²K.

Acoustic insulation (maximum):

Rw = 44 dB(A).

Performance (based on 1.23 x 1.48 m, two sashes):

  • Air permeability (to BS EN 12207): Class 4.
  • Water tightness (to BS EN 12208): Class E1200.
  • Wind resistance (to BS EN 12210): Class C5.

Product Options

Size:

  • Maximum width per sash: 1500 mm.
  • Maximum height per sash: 2600 mm.

Burglary resistance:

  • WK2 (RC2) Certification using reference test 2.52 x 1.47 m, one sash, with EVO Security hardware by STAC (SKG 2 Certified).

Hardware/ Accessories:

  • CORTIZO minimalist handle, concealed hinges 180° and hardware EVO Security by STAC (SKG 2 Certified) or EVO Soft by STAC available.
  • Supplementary profile for concealed drainage also available. Consult manufacturer for further details.
