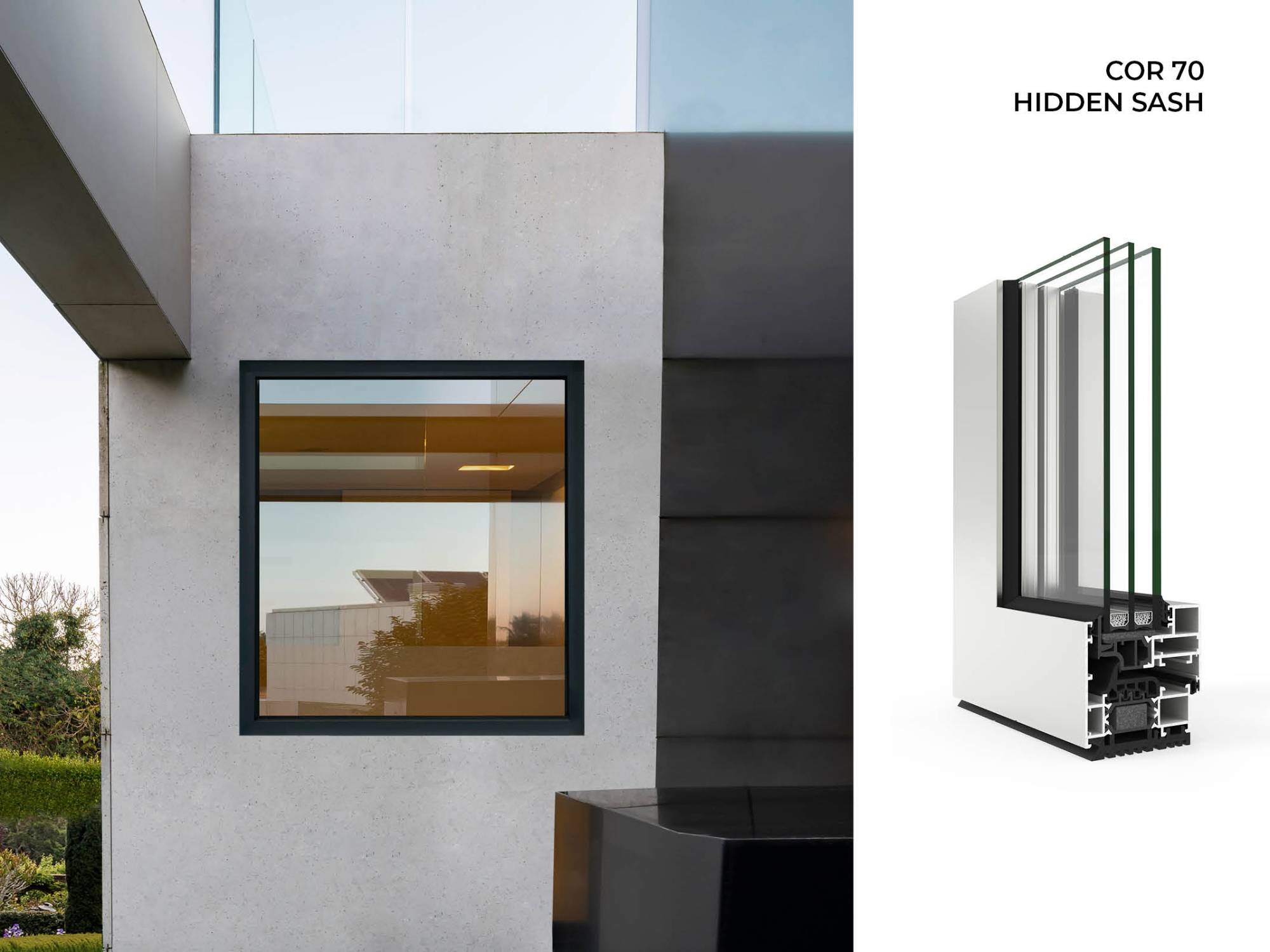

COR 70 Hidden Sash Hinged Window
A hidden sash aluminium hinged window with a basic depth of 70 mm.
Hidden sash window with a basic depth of 70 mm.
Features and benefits:
- Constructed from aluminium alloy 6063 T5.
- Accessories and hardware supplied by STAC, painted in the same colour as the aluminium profiles.
- Slim profiles of only 66 mm of sight line.
- Glazed surface is up to 85% of the total opening surface and is designed in such a way that it is impossible to distinguish the fixed lights from the openable windows.
Size | As drawing Insert reference. As schedule Insert reference. |
Material | Aluminium alloy 6063 T5 profiles, including 35 mm long insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass and perimeter polyolefin foam in rebate zone |
Uniclass 2015 | |
CAWS | L10/25 Aluminium windows L10/330 Aluminium windows |
Product Reference | COR 70 Hidden Sash Hinged Window |
Size | As drawingInsert reference. As scheduleInsert reference. |
Glazing | - |
Configuration | Bottom hungFixedSide hungTilt and turn |
Thickness | Insert requirement, maximum thickness of 40 mm. |
Finish | - |
Type | Anodized15–25 μ dependent on the class (Class 15, Class 20, Class 25), guaranteed by EWAA-EURAS Standard. Polyester powder coatedInsert requirement, quality guaranteed by QUALICOAT Standard, with a thickness in the interval between 60–100 μ. |
Colour | Insert requirement or insert 'Not applicable' for Anodized. |
Gaskets with vulcanized corners | Not requiredRequired |
Hardware/ Accessories | Insert requirements, supplied by STAC, painted in the same colour as the aluminium profiles. See 'Options' for details. |
Standard product features | Material: Aluminium alloy 6063 T5 profiles, including 35 mm long insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass and perimeter polyolefin foam in rebate zone. Profile thickness: 1.9 mm in window profiles. Depth: 70 mm (frames and sashes). Maximum weight per sash: 160 kg. Gaskets: Two ethylene-propylene diene monomer (EPDM) seals, co-extruded centre gasket and exterior polyvinyl chloride (PVC) glazing bead. Thermal transmittance:
Acoustic insulation (maximum): Rw = 46 dB(A). Performance (based on 1.23 x 1.48 m, two sashes):
|
Product Options | Size:
Hardware/ Accessories:
|
