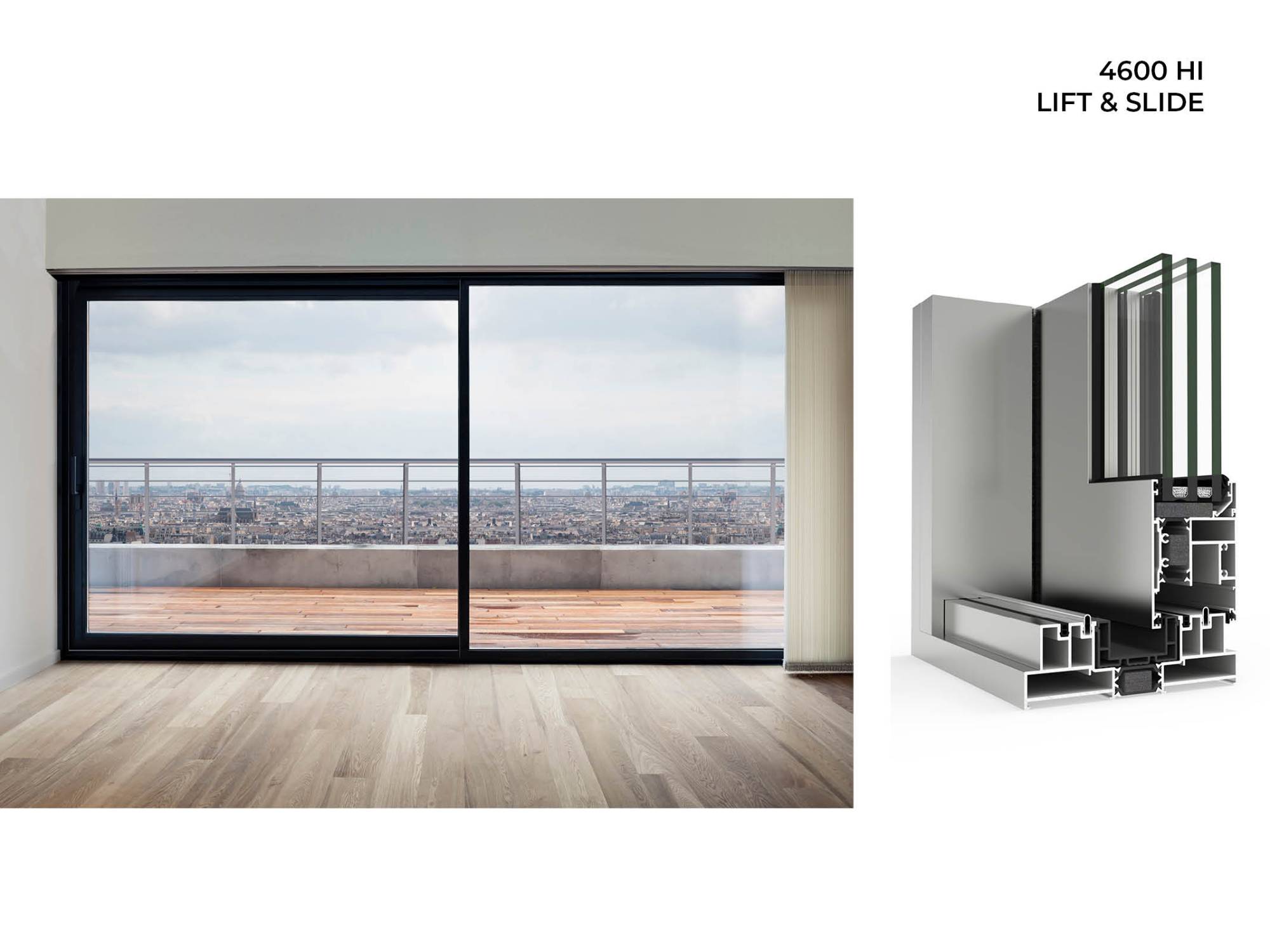

COR 4600 HI Lift and Slide Door
Aluminium lift and slide door system.
Lift and slide door system, suitable for large dimensions and thicker glazing, creating maximum luminosity with the minimum visible section of aluminium due to an interlocking profile and a 50 mm sight line.
Features and benefits:
- Constructed from aluminium alloy 6063 T5.
- Accessories and hardware supplied by STAC, painted in the same colour as the aluminium profiles.
- Sliding rail elements are constructed from stainless steel to ensure a smooth slide and a longer lifespan.
- Water-tightness ensured by ethylene propylene diene monomer (EPDM) joints, brushes, set of covers and wind-stoppers in the interlocking profile.
- Optional supplementary profile and channel for concealed drainage - exposed area configuration.
Size | As drawing Insert reference. As schedule Insert reference. |
Material | Aluminium alloy 6063 T5 profiles, including insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass (35 mm long in frames and 24 mm in sashes) |
Uniclass 2015 | |
CAWS | L20/520 Sliding doors |
Product Reference | COR 4600 HI Lift and Slide Door |
Size | As drawingInsert reference. As scheduleInsert reference. |
Configuration | One sashTwo sashesThree sashesFour sashesSix sashes |
Rails | One railTwo railsThree rails |
Glazing | Insert requirement, available up to 55 mm thickness. |
Interlocking frame profile | Not requiredRequired50 mm sight line. |
Finish | - |
FinishType | Anodized15–25 μ dependent on the class (Class 15, Class 20, Class 25), guaranteed by EWAA-EURAS Standard. Polyester powder coatedInsert requirement, quality guaranteed by QUALICOAT Standard, with a thickness in the interval between 60–100 μ. |
Colour | Insert requirement or insert 'Not applicable' for Anodized. |
Hardware/ Accessories | Insert requirements, supplied by STAC, painted in the same colour as the aluminium profiles. |
Standard product features | Material: Aluminium alloy 6063 T5 profiles, including insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass (35 mm long in frames and 24 mm in sashes). Profile thickness: 2 mm. Frame depth: 160 mm (two rails); 251 mm (three rails). Maximum weight per sash: 400 kg. Thermal transmittance:
Acoustic insulation (maximum): Rw = 43 dB(A). Performance (based on nine panels, 3 x 3.5 m):
|
Product Options | Drawing: Indicate whether standard sliding or fixed glazing and sash in two rails (possibility of having the fixed glazing in the external or internal rail). Size: Available up to 3300 x 3300 mm (w x h) per sash. |
