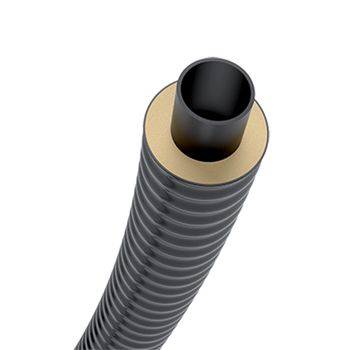

COOLFLEX - Insulated Cold Water Pipe
Verified by manufacturer 2 days ago
A flexible, continuous, insulated cooling or cold water pipe system with a PE carrier pipe.
Application
District cooling and wastewater pipes.
Description
The COOLFLEX is a flexible, continuous, insulated cooling or cold water pipe system with a PE carrier pipe.
Features and benefits:
- Operating temperature: -4 °F to +104 °F.
- Operating pressure: PN 16.
- Dimensions: DN 20–125.
- Carrier pipes: PE 100.
- Insulation: Polyurethane (PUR).
General information
Color | Black |
Material | Polyethylene Polyurethane (PUR) Linear low-density polyethylene (LLDPE) |
Shape | Circle |
Length | Bespoke |
Width | 50 mm 63 mm 75 mm 90 mm 110 mm |
Height | 50 mm 63 mm 75 mm 90 mm 110 mm |
Uniclass |
Specification data - Pre-insulated pipes
Classification data | |
Standards | |
Pipes | Pipe system to DIN EN 17414-1, DIN EN 17414-2 and DIN EN 17415-1. Carrier pipe to DIN 16892 and DIN 16893. |
Environmental performance | |
Environmental rating | Manufacturer's standard. |
Embodied carbon | Manufacturer's standard. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Recyclability | Manufacturer's standard. |
Third-party certification | Applus IMA tested. |
Accessories | PE electrofusion couplers straight sleeves. PE electrofusion couplers reduced sleeves. PE electrofusion couplers elbows (90°). PE electrofusion couplers T-connections. Screw connection with external thread. Screw connection pipe coupling. Screw connection T-connection. Screw connection steel with weld end. Clamp connector. T-I-L clip covers. Wall sealing ring, double sealing. Wall sealing ring. Distributor shaft. Shrink-on sleeve set. Plug-in end caps. Shink-on end caps. Pipe warning tape. |
Pipe diameter | 50 mm (1.50"). Guidance for specification option: Bending radius: 3'0". 63 mm (2.00"). Guidance for specification option: Bending radius: 3'3". 75 mm (2.50") Guidance for specification option: Bending radius: 3'5". 90 mm (3.00"). Guidance for specification option: Bending radius: 4'0". 110 mm (4.00"). Guidance for specification option: Bending radius: 4'0". Manufacturer guidanceNominal carrier pipe size. |
Pipe material | Carrier: polyethylene (PE) Insulation: polyurethane (PUR). Casing: linear low-density polyethylene (LLDPE). |
Operating pressure (maximum) | PN 16. |
Sustainability data
Country of product manufacture | Switzerland |
Material | Polyethylene Polyurethane (PUR) Linear low-density polyethylene (LLDPE) |
Literature

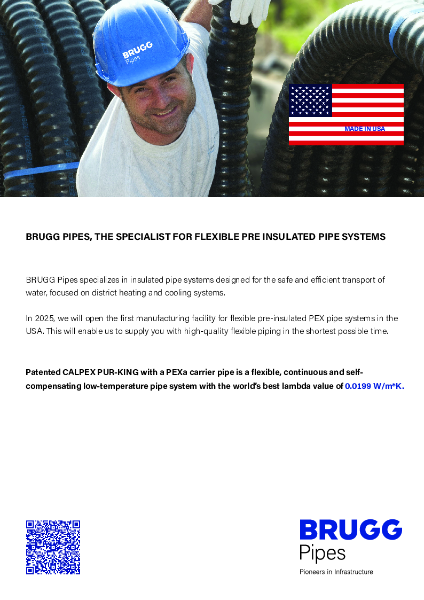

Coolflex Brochure
