Description

The Warmup Contura Floating Floor System insulates and heats dry construction floating floors. Floor finishes can be laid over the Contura System immediately after installation, unlike screeded floors which require time for the screed to cure. Replacing a traditional screed with thinner and lighter dry flooring panels significantly reduces the heated floor mass.

Consequently, the Contura System responds faster to heating demands than traditional screed systems. This faster warm up and cool down time is recognised within SAP with the calculated energy usage reducing as a result. The reduced system mass also has other benefits especially for multi-storey developments. The reduction in weight associated with moving from a screeded floor to a dry floor can have a significant impact on the structural requirements of a building leading to cheaper foundations and structural elements throughout the project.

The Contura Boards are simply laid over a flat and level (SR1) subfloor, the diffusion plates and pipe are then fitted into place.

Diffusion plates:

The Warmup Diffusion Plates are press-formed heat-diffusing aluminium plates. They are lightweight and easy to install, creating a responsive, efficient underfloor heating system with an even heat distribution.

Panels:

Warmup Contura expanded polystyrene (EPS) Insulation is a routed EPS insulation board for use in conjunction with Warmup Diffusion Plates. The insulation boards are provided in 1250 x 600 mm sheets and are available in 30, 40, 50, 60, 70, 80, 90 and 100 mm thicknesses.

This type of insulation is primarily used in new build on upper floors where insulation levels are higher which will lower heat requirements and can be installed under almost any type of floor finish.

Pipework:

The Warmup PEX-A pipe is formed as a single extrusion with an adhesive layer and EVOH oxygen barrier. The EVOH layer restricts the ingress of oxygen into the heating system, reducing oxidation of critical components in the primary system and extending their service life.

The minimum 70% cross-linking within the polyethylene (PE) material provides superior mechanical properties to the pipe, with a maximum working temperature and pressure of 95°C and 6 bar respectively. The PEX-A pipe has a high thermal conductivity of 0.41 W/mK, substantially greater than an equivalent polybutylene pipe at 0.22 W/mK. This enables the systems to emit between 3% and 6% more heat from the same water temperature as equivalent systems using PB pipe.

The Warmup PE-RT pipe is a five layer extrusion of polyethylene of raised temperature resistance. It is manufactured as follows, PE-RT/ Adhesive/ Oxygen barrier (EVOH)/ Adhesive/ PE-RT. This type of pipe is suitable in situations where there is an absolute guarantee that temperatures above 70ºC cannot be generated. This is a cost-competitive pipe and is ideal for all types of installations.

Manifold:

The Warmup Stainless Steel Manifold range provides flexible zoning and water regulation for 2 to 12 underfloor heating circuits. Supplied complete with Taconova Flow Meters, Fill/ Drain Valves, Air Vents and a Thermomanometer, it is equipped with all the features needed to commission an underfloor heating system quickly and confidently.

System build-up:

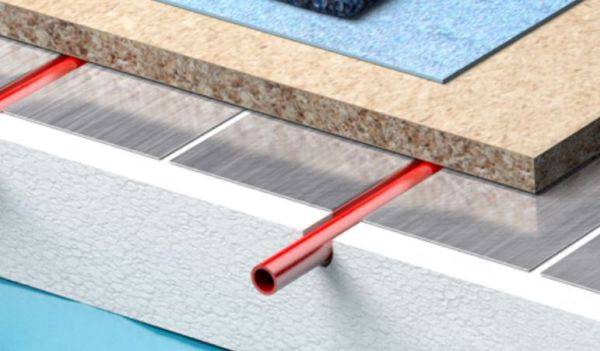

  • Floor finish.
  • Floating floor deck.
  • Warmup 16 mm pipework.
  • Warmup contura diffusion plate.
  • Warmup contura panel.
  • Damp-proof membrane.
  • Subfloor.

Features and benefits:

  • Contura System responds faster to heating demands than traditional screeded systems. This faster warm up and cool down time is recognised by SAP.
  • A completely dry system with no screeding required.
  • Comprehensive choice of board thicknesses available to match individual requirements.
  • Promotes fast heat-up response times.
  • Uses 4iE WIFI thermostat (see separate product).
  • Lifetime warranty when PEX-A pipe is used/ 50-year warranty for PE-RT or AL/PE-RT pipes.

General information
Specification data
Product Reference

Contura System

Panels

WHS-CO-P2030

Thickness: 30 mm. R-Value: 0.85 m²K/W.

WHS-CO-P2040

Thickness: 40 mm. R-Value: 1.14 m²K/W.

WHS-CO-P2050

Thickness: 50 mm. R-Value: 1.43 m²K/W.

WHS-CO-P2060

Thickness: 60 mm. R-Value: 1.71 m²K/W.

WHS-CO-P2070

Thickness: 70 mm. R-Value: 2.00 m²K/W.

WHS-CO-P2080

Thickness: 80 mm. R-Value: 2.29 m²K/W.

WHS-CO-P2090

Thickness: 90 mm. R-Value: 2.57 m²K/W.

WHS-CO-P2100

Thickness: 100 mm. R-Value: 2.85 m²K/W.

Pipework -
Type

PE-RT

PEX-A

Length

25 m

50 m

60 m

70 m

80 m

90 m

100 m

110 m

120 m

200 m

PEX-A only.

300 m

500 m

Diffusion plates

WHS-TE-ALUDP4

(Single groove plate) 0.6 x 190 x 1000 mm, 16 mm pipe.

WHS-TE-ALUDP5

(Single groove plate) 0.7 x 190 x 1000 mm, 16 mm pipe.

Standard product features

Technical characteristics:

- Panels:

  • Size: 1.2 x 1.2 m.
  • Thermal conductivity at 10°C: 0.035 W/m·K.
  • Fire rating to BS EN 13501: F.

- Pipework:

PE-RT:

  • Size: 16 x 2 mm.
  • Maximum working temperature: 70°C.
  • Maximum operating pressure: 6 bar.
  • Thermal conductivity: 0.40 W/m·K.
  • Water capacity: 16 mm pipe - 0.113 L/m.

PEX-A:

  • Size: 16 x 2 mm - Cross linked.
  • Maximum working temperature: 95°C.
  • Maximum operating pressure: 6 bar.
  • Thermal conductivity: 0.41 W/m·K (substantially greater than an equivalent polybutylene pipe at 0.22 W/m·K).
  • Water capacity: 16 mm pipe - 0.113 L/m.

- Manifold:

  • Material: 1.4301 (304) grade stainless steel.
  • Ports: 2–12.
  • Temperature range: -5°C to +60°C.
  • Maximum operating pressure: 6 bar. Maximum test pressure: 10 bar.
  • Adjustment range: 0–5 L/min.
  • Manifold arm size: 40 x 40 mm.
  • Pipe fitting centres: 50 mm/ 55 mm.
  • Pipe fitting diameters: G-1/2” (20x1.5).
