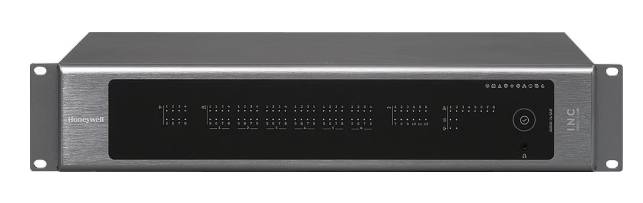

Controller INC-AUD IN/OUT- 585000.33 - Network Controller
Verified by manufacturer 2 days ago
Voice Alarm Intelligent network controller, 8 channel, with 6 x Audio inputs and 6 Audio outputs
Application
Ideal for high-traffic areas such as Airports, Stadia, Railway stations, Shopping Malls, Theatres, Commercial multi story tower blocks. Essential building usage for emergency guidance and routine communication within buildings with large public gatherings.
Description
The INC (Intelligent Network Controller), is the main controller of the VARIODYN® ONE PAVA system. It is responsible for managing and monitoring all key components of the system including power amplifiers, speaker lines and call stations, etc.
Features and benefits:
- Supports 8 to 48 speaker circuits per controller (expand using field mountable speaker circuit modules with eight speaker circuits per module).
- Inbuilt relay matrix mode.
- Supports up to eight amplifier channels.
- Supports eight simultaneous audio per controller.
- Inbuilt eight hours of audio storage.
- Intuitive LED interface ensuring you can easily understand the system status.
- Six audio inputs and six outputs.
General information
Color | Grey |
Material | Metal |
Shape | Rectangle |
Length | 415 mm |
Width | 483 mm |
Height | 88 mm |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems V90/590 Equipment |
SKU Code | 585000.23 |
Specification data - Voice alarm controllers
Classification data | |
Standard | To BS EN 54-16. |
Rated voltage | 24 V d.c. |
Power amplifiers | |
Type | Manufacturer guidanceIntelligent Network Controller controls external amplifiers. |
Rated power output | 500 W per channel (maximum). |
Overall efficiency (minimum) | Manufacturer guidanceRefer to efficiency of amplifier units. |
Frequency response at rated power output | 20 Hz to 20 kHz (±1 dB). |
Ventilation | Internal forced ventilation fans. |
Emergency message generators | |
Number of pre-recorded messages | Manufacturer guidance900 MB, 5 hours of Audio Broadcasting. Consult manufacturer for details. |
Languages | Messages can be recorded in any language. |
Messages | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Connection ports | |
Audio inputs | 6. |
Audio outputs | 6. |
Control inputs | 14. Guidance for specification option: Maximum I/O's. |
Control outputs | 14. Guidance for specification option: Maximum I/O's. |
Communications | 8 x RJ45 for DAL connection to remote microphones. 8 x RJ45 ethernet connections. 1 x RJ45 TWI (RS232). 1 x 3PIN (RS485). 1 x 3PIN CANbus. |
Controls | |
Features | Built-in memory. Display interface showing system status. |
Display type | LED interface. |
Event log | 1 GB. |
Battery charger | |
Standard | Manufacturer guidanceEN 54-4 chargers are from an external source. Consult manufacturers for details. |
Controls | |
Display the following conditions | Amplifier state speaker line indicators. Contact I/O indicators. DAL state indicators. General indicators. Systems indication. |
Enclosure | |
Colour | Grey. |
Environmental requirements | Operation temperature -5 to +55°C. Storage temperature -40 to 70°C. Air humidity <95% (non-condensing). |
Mounting method | Rack. |
Network type | Six potential-free audio inputs/ outputs Guidance for specification option:
|
Power supply | 21.5–28.8 V d.c. Manufacturer guidanceEmergency power supply. |
Dimensions | 483 x 88 x 415 mm. Manufacturer guidanceWidth x height x depth. |
Weight | 12.45 kg. |
Accessories | Not required. Eight speaker line module - 585020. Eight channel amplifier output cable - 585301. Four channel amplifier output cable - 585302. Two channel amplifier output cable - 585303. One channel amplifier output cable - 585304. Cat5 patch cable, 0.5 m (green) - 583491A. Control cable 12 for INC - 585308. |
Sustainability data
Material | Metal |
Literature
Literature type

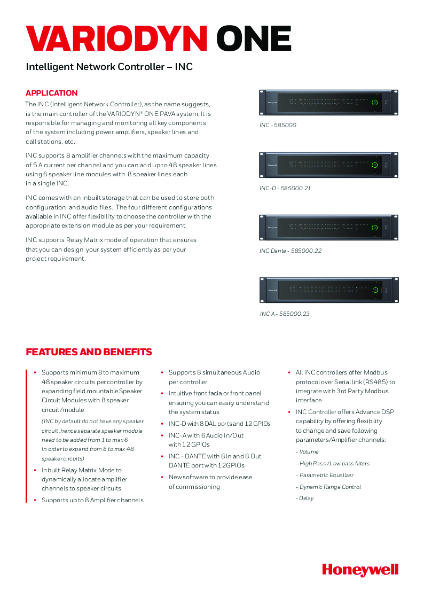

Product Sheet - Controller INC-DANTE - 585000.23
585000.23 INC Audio IN/OUT EN54-16 Declaration of Performance

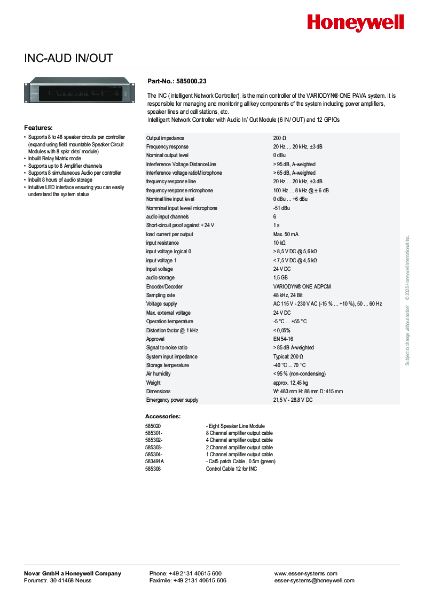

585000.23 INC Audio IN/OUT EN54-16

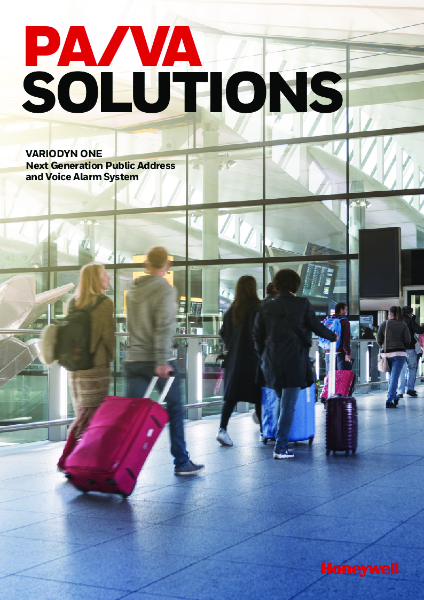

VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure

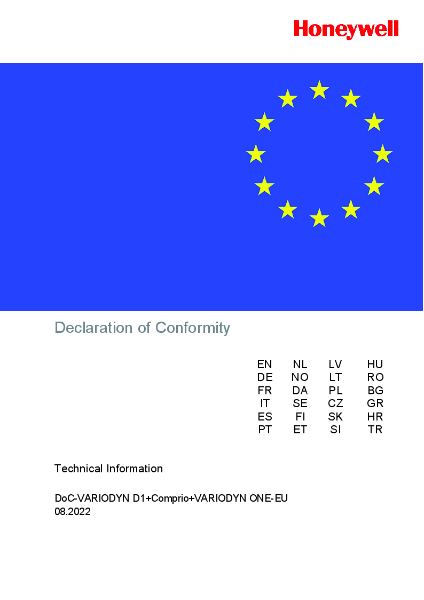

VARIODYN D1 + Comprio + VARIODYN ONE-EU Declaration of Conformity
