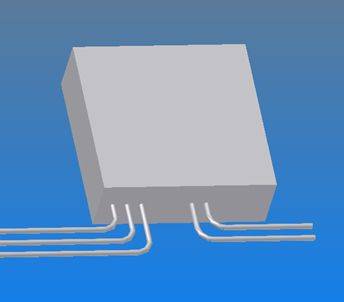

Control box enclosure, positioned remotely from the revolving door system.

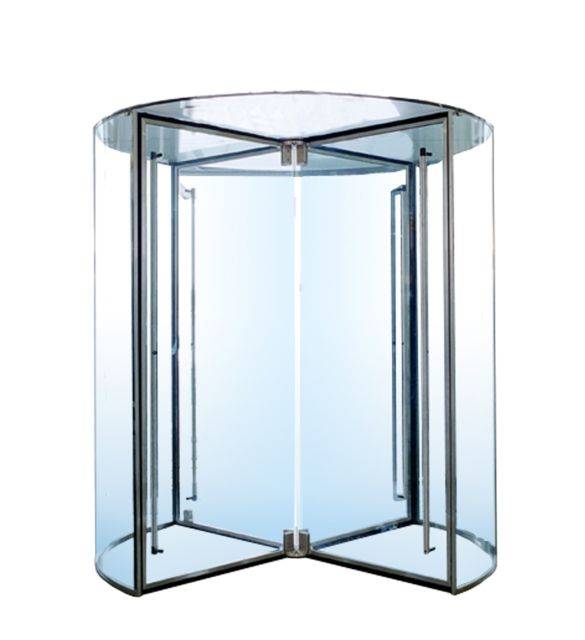

Revolving door using a combination of laminated and toughened glass to reduce the traditionally framed elements of the door to a bare minimum. The result is a virtually completely transparent revolving door. This stylish entrance solution is perfect for use with contemporary glass façades but still blends in beautifully with more classical architectural styles.
It has automatic operation and is available with three or four door wings in a wide range of sizes. The choice between clear and coloured glass ensures that it is not only highly functional but also the most stylish entrance solution available. The Crystal Tourniket’s versatility and style make it the perfect choice for medium traffic flow applications such as offices, hotels and many other types of buildings.
600 x 600 x 200 mm
L20/495 Automatic revolving doors
Crystal Tourniket Automatic
1650 mm installation width.
1850 mm installation width.
2050 mm installation width.
2250 mm installation width.
2450 mm installation width.
2650 mm installation width.
2850 mm installation width.
3050 mm installation width.
Insert requirement, available 2100–3000 mm.
Coloured interlayer to glass soffit, curved walls and night locking doors
Positioning, power assist and speed control unit (PPS)
Push-button temporary low speed
Stainless steel soffit
Standard product features
Throat opening width:
Glass soffit height:
200–240 V AC, 50/60 Hz.
The curved walls that form the drum of the Crystal Tourniket are completely frameless, constructed of 17 mm thick laminated glass with only small cappings where required for safety. The door set is constructed from 12 mm thick toughened glass with only the smallest possible profiles to retain the weather strip. The two piece glass soffit is fixed directly to the curved walls with specially designed clamps.
Standard safety features:
