Description

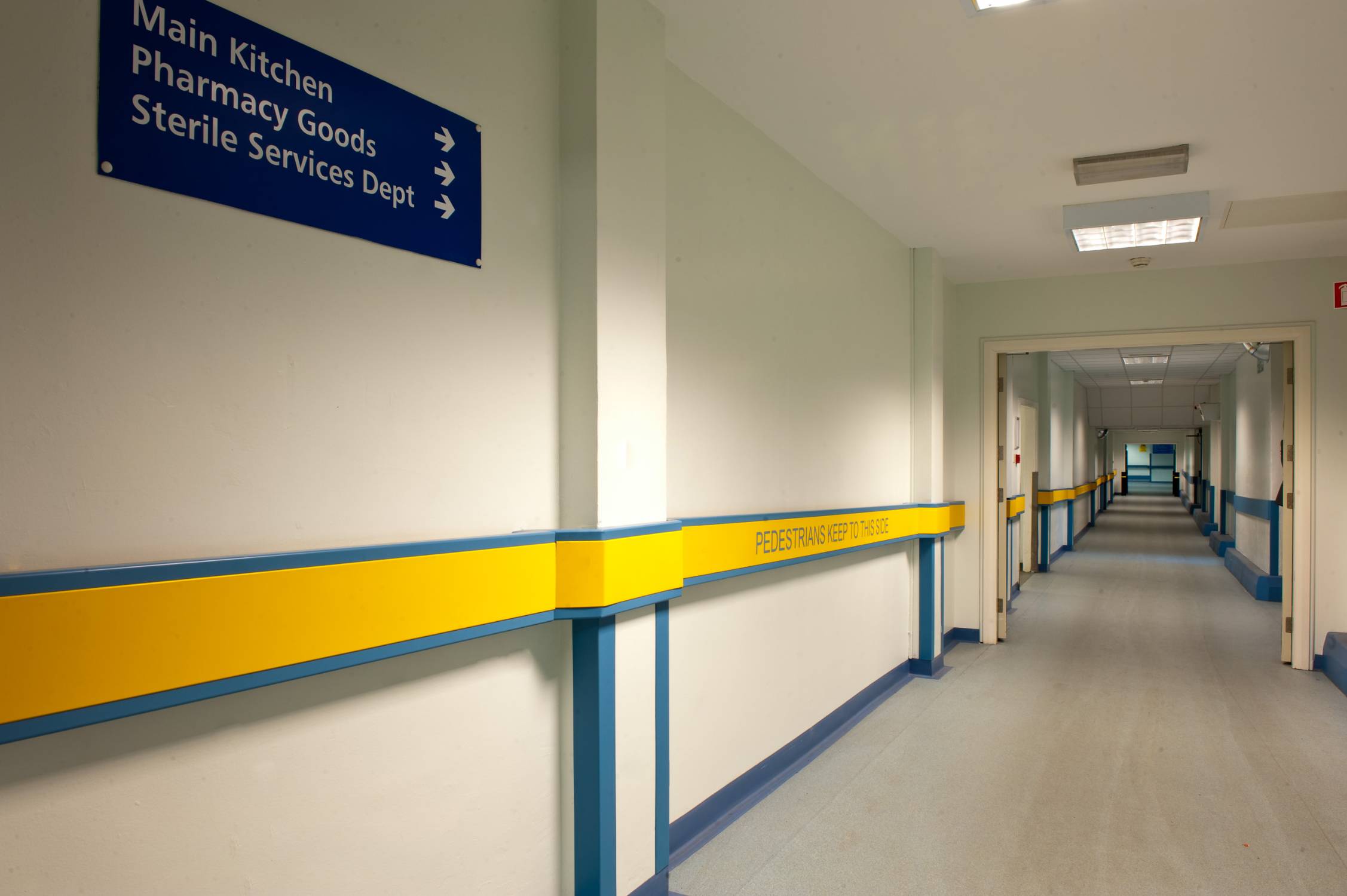

The design of Yeoman Shield Contra Protection Rail delivers an extra dimension on design. It includes a recess into which a feature strip is fitted, offering the added benefit of a further choice of colours and attractive two-tone finish to complement interiors. The Contra 200 and 125 Rails are ideal for use in hospitals, supermarkets, nursing homes, schools, banks, airports, offices and any other areas which are subject to damage by impact or abrasion.

Fixing:

  • Straight runs: Brackets at 700 mm centres, 50 mm from internal angles and 100 mm from external angles, plugged and screwed to substrate. Where MDF or steel core is used fix at 800 mm centres through rubber spacers.
  • To plasterboard: Appropriate length 5 mm machine screw, 5 mm rubber rawlnut.
  • To brickwork, breeze blockwork, concrete: Appropriate length no. 10 woodscrew, no. 10 plastic plug.
  • To lightweight blockwork: Appropriate length no 10 woodscrew, Fischer S8 plastic plug.

General information
Finish

Smooth (rail)

Material

Extruded Vinylac, a specially formulated PVC-U

Size

125 x 30 x 1500 mm

Uniclass 2015
Wall protection panels (Pr_35_90_43_86)Primary
Specification data - Wall protection panels
Product Reference

Contra Protection Rail 125

125 mm wide, 32 mm projection.

Contra Protection Rail 200

200 mm wide, 32 mm projection.

Core

MDF

Use where the rail will be subject to heavy impacts.

Steel

Recommended for use where the rail will span windows or radiators.

Vinylac

Standard core.

Colour

Standard

Mid-grey.

As schedule ___

Special colours are available subject to order quantity or premium.

Insert -
Colour

As schedule ___

Finish

FalmouthEx

HessianEx

Stippled

Accessories

External corner

Fixing clip

Not required where MDF or steel core is used.

Jointing clip

Not required where MDF or steel core is used.

Rubber spacers

Not required where MDF or steel core is used.

Signage text '___', colour ___

Stop end

Standard product features

Dimensions:

The rail is extruded in 3.5 m lengths. The colour contrasting insert is 50 mm narrower than the rail.

Finish:

The rail has a smooth finish; special colours are available subject to order quantity or premium. The insert is available in a range of finishes to help conceal the effects of impact and abrasion.

Materials:

Manufactured from Vinylac, a specially formulated PVCu.

Product Options

Insert colour:

The insert is available in a range of finishes to help conceal the effects of impact and abrasion; standard colours are listed but special colours are available subject to order quantity or premium. Signage can be incorporated within rails.

  • BS 00 A 01 - Light Grey.
  • BS 00 A 05 - Mild Grey.
  • BS 00 E 53 - Black.
  • BS 04 E 49 - Pink Rose.
  • BS 04 E 53 - Red.
  • BS 08 B 17 - Mushroom.
  • BS 08 B 21 - Mocha.
  • BS 08 B 29 - Brown.
  • BS 08 E 51 - Yellow.
  • BS 10 B 15 - Cream.
  • BS 10 C 33 - Primrose.
  • BS 10 E 50 - Grapefruit.
  • BS 14 C 31 - Sage Green.
  • BS 14 E 53 - Green.
  • BS 18 C 35 - Pigeon Blue.
  • BS 18 E 53 - Regatta Blue.
  • BS 20 C 33 - Powder Blue.
  • BS 22 B 17 - Lavender.
  • BS 24 C 39 - Aubergine.
  • RAL 1001 - Buff.
  • RAL 2012 - Tangerine.
  • RAL 3003 - Burgundy.
  • RAL 3027 - Red.
  • RAL 4001 - Lilac.
  • RAL 4004 - Bordeaux.
  • RAL 4012 - Amethyst.
  • RAL 5000 - Trafalgar Blue.
  • RAL 5001 - Steel Blue.
  • RAL 5002 - Dark Blue.
  • RAL 5012 - Cornflower Blue.
  • RAL 5017 - Royal Blue.
  • RAL 5018 - Aqua Blue.
  • RAL 5024 - Pastel Blue.
  • RAL 6004 - Opal Green.
  • RAL 6019 - Pastel Green.
  • RAL 6027 - Light Green.
  • RAL 7015 - Dark Grey.
  • RAL 7037 - Dusty Grey.
  • RAL 7046 - Graphite.
  • RAL 9016 - White.
  • Avocado.
  • Blush.
  • Heather.
  • Orange.
  • Sky Blue.
  • Slate Green.
  • Terracotta.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
Download now from NBS National BIM Library
