Contra Guardian Handrail
Handrail and protection rail with feature strip.

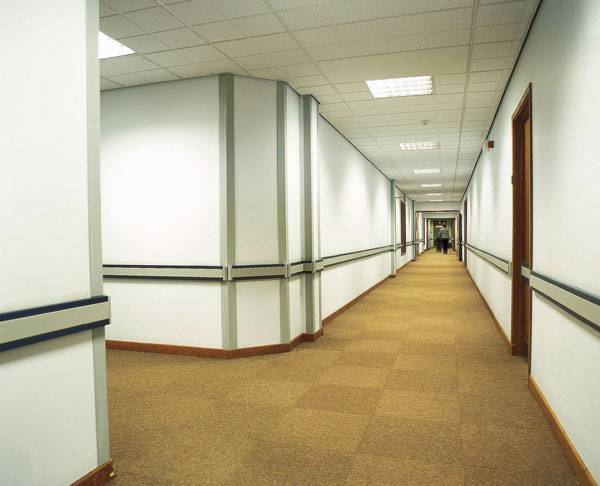

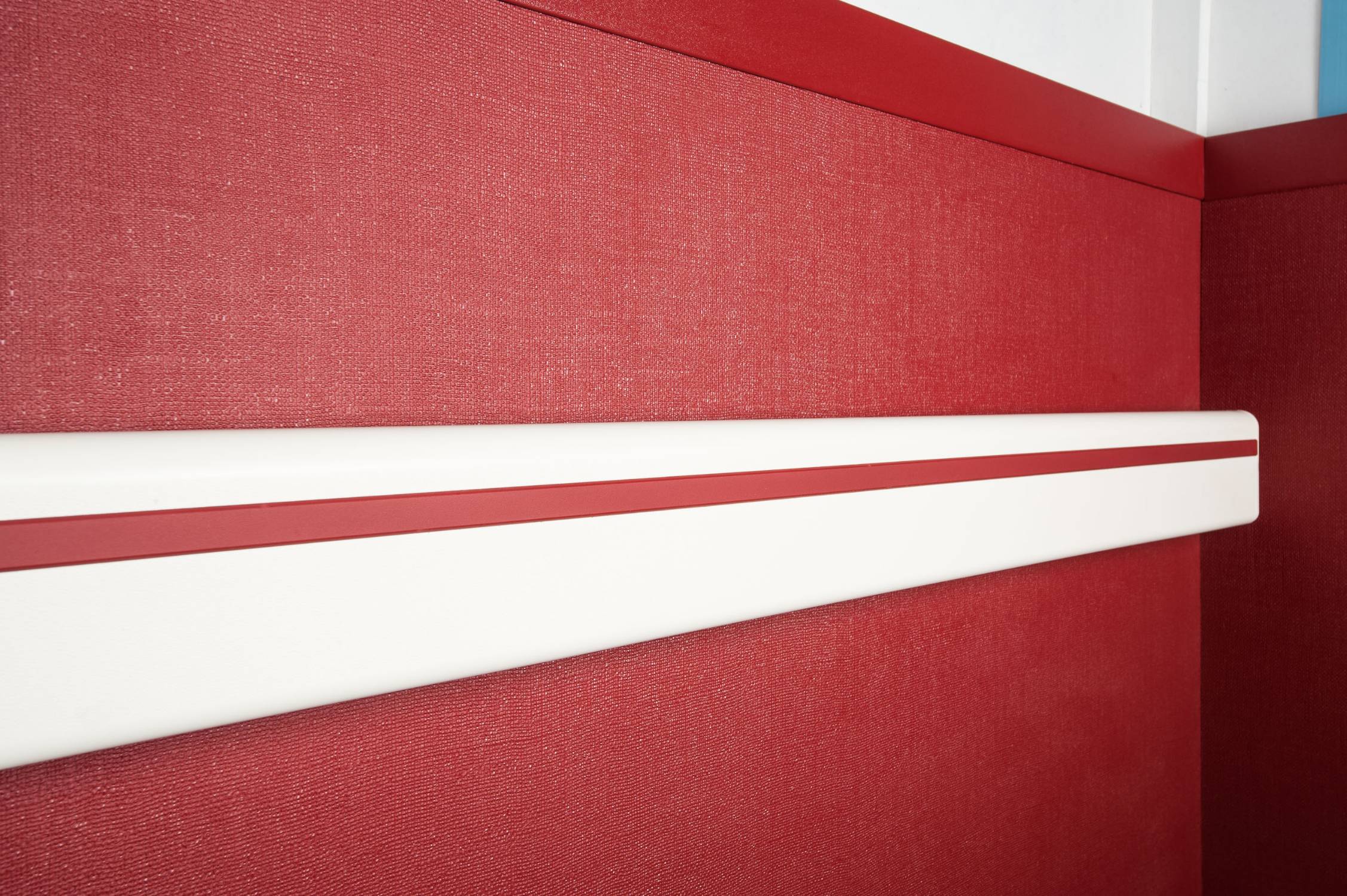

The design of Yeoman Shield Contra Protection Rail delivers an extra dimension on design. It includes a recess into which a feature strip is fitted, offering the added benefit of a further choice of colours and attractive two-tone finish to complement interiors. The Contra 200 and 125 Rails are ideal for use in hospitals, supermarkets, nursing homes, schools, banks, airports, offices and any other areas which are subject to damage by impact or abrasion.
Fixing:
- Straight runs: Brackets at 700 mm centres, 50 mm from internal angles and 100 mm from external angles, plugged and screwed to substrate. Where MDF or steel core is used fix at 800 mm centres through rubber spacers.
- To plasterboard: Appropriate length 5 mm machine screw, 5 mm rubber rawlnut.
- To brickwork, breeze blockwork, concrete: Appropriate length no. 10 woodscrew, no. 10 plastic plug.
- To lightweight blockwork: Appropriate length no 10 woodscrew, Fischer S8 plastic plug.
Finish | Smooth (rail) |
Material | Extruded Vinylac, a specially formulated PVC-U |
Size | 125 x 82 x 3500 mm |
Uniclass 2015 | |
CAWS | P20/170 Proprietary P20/30 Proprietary |
Product Reference | Contra Protection Rail 125125 mm wide, 32 mm projection. Contra Protection Rail 200200 mm wide, 32 mm projection. |
Core | MDFUse where the rail will be subject to heavy impacts. SteelRecommended for use where the rail will span windows or radiators. VinylacStandard core. |
Colour | StandardMid-grey. As schedule ___Special colours are available subject to order quantity or premium. |
Insert | - |
Colour | As schedule ___ |
Finish | FalmouthExHessianExStippled |
Accessories | External cornerFixing clipNot required where MDF or steel core is used. Jointing clipNot required where MDF or steel core is used. Rubber spacersNot required where MDF or steel core is used. Signage text '___', colour ___Stop end |
Standard product features | Dimensions: The rail is extruded in 3.5 m lengths. The colour contrasting insert is 50 mm narrower than the rail. Finish: The rail has a smooth finish; special colours are available subject to order quantity or premium. The insert is available in a range of finishes to help conceal the effects of impact and abrasion. Materials: Manufactured from Vinylac, a specially formulated PVCu. |
Product Options | Insert colour: The insert is available in a range of finishes to help conceal the effects of impact and abrasion; standard colours are listed but special colours are available subject to order quantity or premium. Signage can be incorporated within rails.
|
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | IFC2X3 | 2 | 1.3 |
 Revit | Revit 2015 | 2 | 1.3 |
