Description

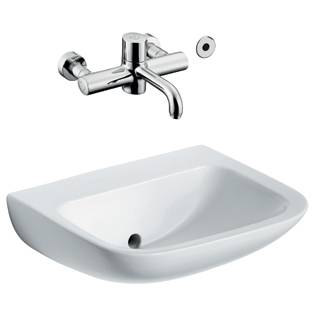

Panel-mounted wash basin. Available in standard, hand rinse and hospital-pattern configurations. To be specified with Venesta Washbasin Taps, Waste and Trap.

General information
Specification data
Product Reference

S212201 Contour 21 wash basin

370 mm wide, single central tap hole.

S215401 Contour 21 wash basin

500 mm wide, no tap hole.

S215401 Contour 21 hospital pattern wash basin

500 mm wide, no tap hole.

S215501 Contour 21 hospital pattern wash basin

600 mm wide, no tap hole.

S247301 Contour 21 hand rinse basin

370 mm wide, left hand tap hole.

S247401 Contour 21 hand rinse basin

370 mm wide, right hand tap hole.

Standard product features

Sealing:

Joint between basin and IPS Evolve panel sealed with white silicone sealant by Venesta.

Product Options

Product reference:

– S212201 Contour 21 wash basin:

  • General purpose wash basin.
  • Configuration: Single central tap hole.
  • Size (w x d): 370 x 370 mm.
  • Fixings: S911067 concealed steel hangers.

– S215401 Contour 21 wash basin:

  • General purpose wash basin.
  • Configuration: No tap hole.
  • Size (w x d): 500 x 420 mm.
  • Fixings: S911267 concealed hangers, toggle bolts and clips.

– S215401 Contour 21 hospital pattern wash basin:

  • For use in connection with washing associated with clinical procedures.
  • Configuration: No tap hole.
  • Size (w x d): 500 x 400 mm.
  • Fixings: S911267 concealed hangers, toggle bolts and clips.

– S215501 Contour 21 hospital pattern wash basin:

  • For use in connection with washing associated with clinical procedures.
  • Configuration: No tap hole.
  • Size (w x d): 600 x 480 mm.
  • Fixings: S911267 concealed hangers, toggle bolts and clips.

– S247301 Contour 21 hand rinse basin:

  • Configuration: Left hand tap hole, no overflow, no chainstay hole.
  • Width: 370 mm.
  • Fixings: 911067 concealed steel hangers.

– S247401 Contour 21 hand rinse basin:

  • Configuration: Right hand tap hole, no overflow, no chainstay hole.
  • Width: 370 mm.
  • Fixings: S911067 concealed steel hanger.
