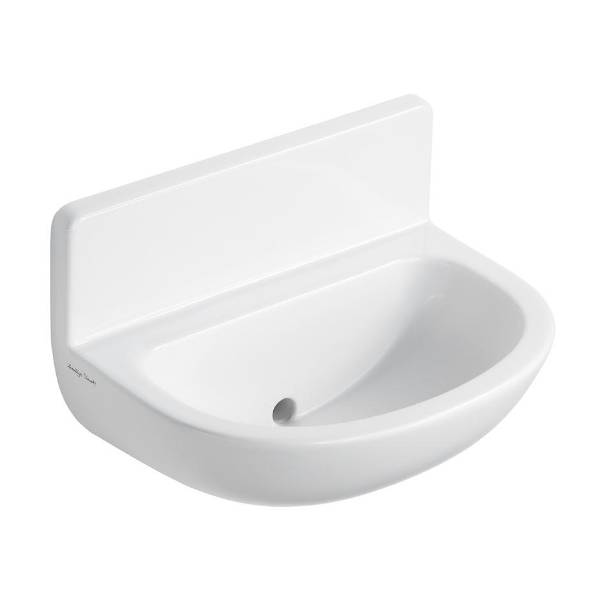

Contour 21 Upstand Washbasin

Contour 21 Upstand Washbasin

Armitage Shanks

LB H M hospital pattern basin, with 150 mm upstand and integral back outlet, for connection to concealed services with concealed fixings, no tapholes, no overflow, no chain hole, no plug.

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk
Description

Contour 21 back outlet washbasin, 50cm with 150mm upstand splashback, no tapholes, no overflow, no chainstay hole

  • Medium Hospital pattern basin
  • Washing under running water
  • Fully concealed services
  • Hygenic Integral splashback
  • 35cm reduced projection

General information

Finish

Chrome - (AA)

Neutral / No Finish - (67)

Size

500 x 353 x 337 mm

Color

White

Features

50 cm with 150 mm upstand splashback, no tapholes, no overflow, no chainstay hole

Material

Vitreous china

Shape

Sculptured

WarrantyDescription

Manufacturers warranty

Uniclass 2015

Pr_40_20_96_96 Wall-hung washbasinsPrimary
Specification data - Wall-hung washbasins

Product Reference

S2144 - HBN 00-10 HTM64 (LB H M) Contour 21 Upstand Washbasin

Contour 21 Washbasin 50cm Upstand splashback

Ancillary

A6252 - 100mm Spout

Spout 100mm for Markwik 21 Mixer, Demountable With Bioguard

F960847 - Brassware

Nozzle Anti-Pseudomonas Outlet for Markwik 21

A6256 - Filter For Spout

Filter Adaptor for Markwik 21 Demountable Mixer Spout

Not required

Finish

Chrome - (AA)

Neutral / No Finish - (67)

Standard product features

WashBasin:

  • Material: Vitreous China
  • Weight: 14.00 kg

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 4.00 kg
  • Flowrate: 7.50 lpm @ 3bar

Washbasin Outlet Connector:

  • Material: Plastic
  • Weight: 0.17 kg

Trap:

  • Material: Plastic
  • Weight: 2.00 kg

Washbasin Support Bracket:

  • Material: Metal
  • Weight: 0.47 kg

Product Options

Toggle bolts and outlet adaptor suitable for maximum panel thickness of 18mm. For use in connection with washing associated with clinical procedures. Suggested rim height 780-800mm. Washbasin wall mounted using S9112 hangers with additional toggle bolt and clips when panel mounted. Suitable for dedicated wall mounted taps will need to be positioned sufficiently above the upstand to a maximum of 200mm from base of outlet to lip of washbasin.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2013 1 1.2
Download now from NBS National BIM Library
