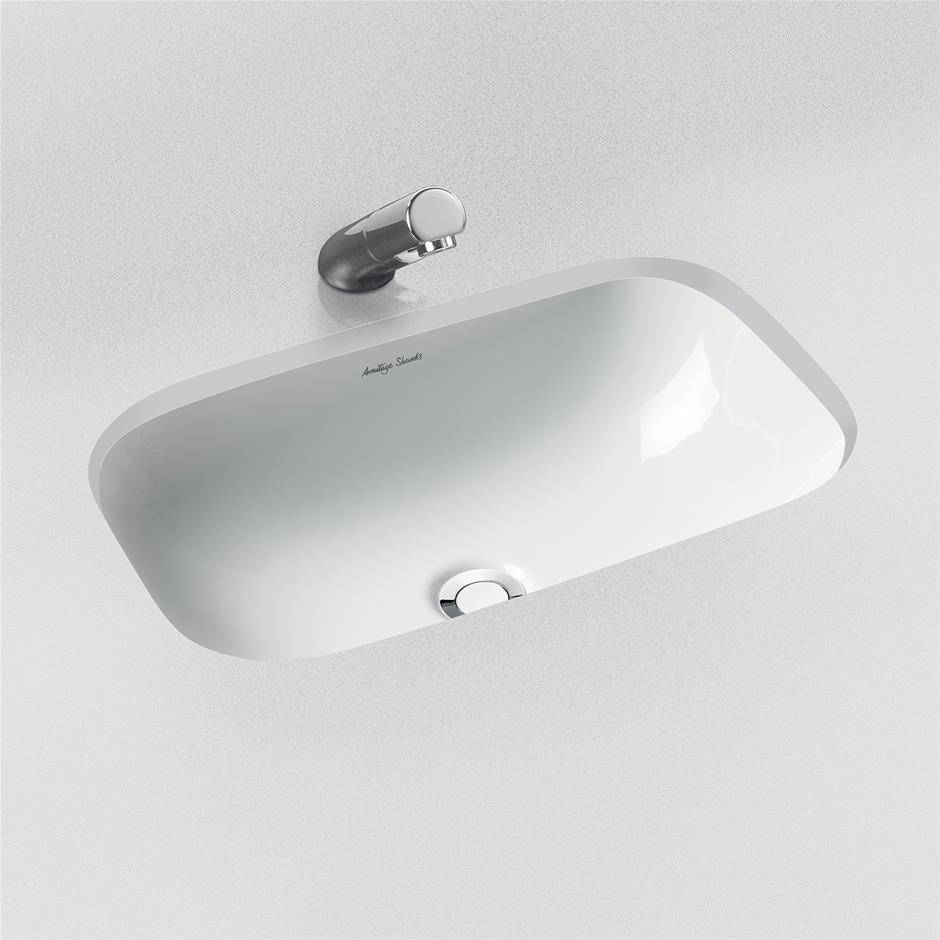

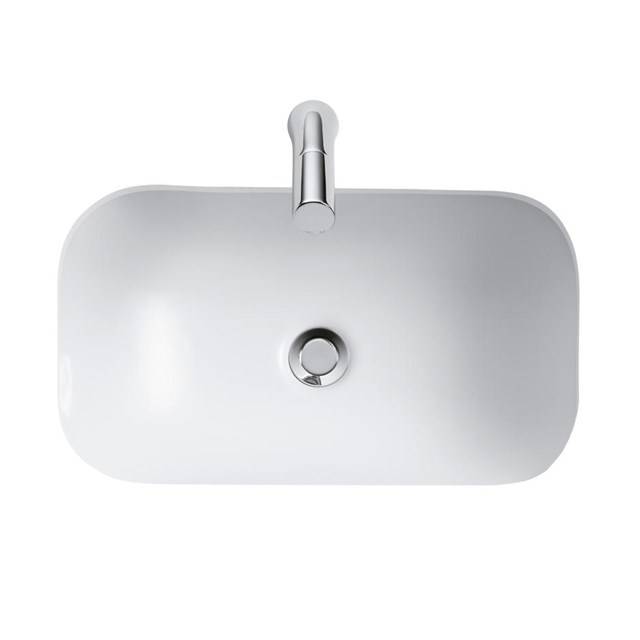

Contour 21 Under-countertop Washbasin
Description

Contour 21 50cm under-countertop washbasin with overflow, unglazed rim

  • Domestic and commercial use
  • Part of an extensive suite

General information

Finish

Chrome - (AA)

Neutral / No Finish - (67)

Ultra Steel - (GN)

White - (01)

Color

White

Features

50 cm under-countertop washbasin, overflow, unglazed rim, glazed back, no logo

50 cm under-countertop washbasin, with overflow, unglazed rim

Material

Vitreous china

Shape

Soft Square

Size

555 x 350 x 175 mm

WarrantyDescription

Manufacturers warranty

CAWS

N13/335 Washbasins

Specification data

Product Reference

S2496 - Contour 21 50cm Under-Countertop Washbasin

Contour 21 50cm Under-Countertop Washbasin, With Overflow, Unglazed Rim

S2516 - Contour 21 50cm Under-Countertop Washbasin

Contour 21 50cm Under-Countertop Washbasin, Overflow, Unglazed Rim, Glazed Back, No Logo

Finish

Chrome - (AA)

Neutral / No Finish - (67)

Ultra Steel - (GN)

White - (01)

Brassware

A4852 - Sensorflow 21 Compact Mixer

Sensorflow 21 Compact Washbasin Spout Integral Sensor, Mains

A4845 - Sensorflow 21 Compact Wall Spout 15/23cm - Copy

Sensorflow 21 Compact Tubular 15cm Panel Spout Integral Sensor, Battery

A4847 - Sensorflow 21 Compact Wall Spout 15/23cm - Copy

Sensorflow 21 Compact Tubular 15cm Panel Spout Integral Sensor, Link

A4846 - Sensorflow 21 Compact Wall Spout 15cm

Sensorflow 21 Compact Tubular 15cm Panel Spout Integral Sensor, Mains

B8260 - Washbasin Mixer

Piccolo 21 Single Lever 1 Hole Washbasin Mixer

Not required

Waste

S8722 - 1¼" Brass Strainer Waste

1¼" Slotted Strainer Waste

Not required

Trap

S8910 - Trap 1¼" Plastic Bottle

1¼"x75mm Seal Plastic Bottle Trap

S8920 - Trap 1¼" Plastic Bottle Resealing

1¼"x75mm Resealing Plastic Bottle Trap

Not required

Washbasin Fixing Clips

S9118 - Washbasin Fixing Clips

Marlow Fixing Clips

Not required

Thermostatic Valve

A5900 - 15mm Thermostatic Mixing Valve

TMV Thermostatic Mixing Valve 15mm

Not required

Standard product features

Washbasin:

  • Capacity: 5.2 litres
  • Material: Fine Fireclay
  • Weight: 8.59 kg
  • Standards: Vitreous china to BS 3402. Washbasin to BS EN 14688 & BS EN 31

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 1.60 kg
  • Flowrate: 3.70 lpm @ 3bar

Waste:

  • Material: Chrome Plated Metal
  • Weight: 0.22 kg

Trap:

  • Material: Plastic
  • Weight: 0.20 kg

Product Options

This washbasin is not suitable for separate pillar taps. Washbasin mounted on underside of countertop using S9118 fixing clips. Joint sealed using waterproof sealant (not supplied). Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device see A5900AA

Digital objects
Platform Compatible Version Certified to
Revit

Revit 2014

1

1.2
Download now from NBS National BIM Library
