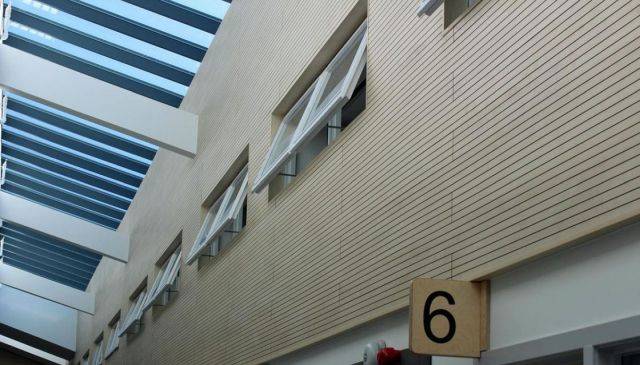

Continuously slotted absorption wall panels providing a versatile solution for the control of reverberation.
For use as wall linings.
Continuously slotted absorption wall panels providing a versatile solution for the control of reverberation where true flexibility, aesthetic appeal and acoustic performance is required. It is available in planked and complete panels. This product enables the creation of a seamless appearance with clean lines to greatly improve the ambiance of any room.
The panels have continuous slots (grooves) to the face and reverse, with the boards being drilled from edge to edge through the core to create acoustic cavities which absorb sound.
Panels are prefabricated and secretly fixed on site using a split battens system or a modular system depending on site conditions. The split batten thickness will vary depending on the thickness of the insulation (absorption class rating). The system offers an accurate and high-quality seamless finish.
Applications:
For use as wall linings.
Size | 3600 x 192 mm Special order Insert requirement. |
Material | Medium density fibreboard (MDF) core with a black acoustically transparent tissue backing |
Uniclass 2015 | |
CAWS | K13/170 Acoustic panel lining |
Product Reference | Continuously Slotted Acoustic Wall Lining |
Size | 3600 x 192 mmSpecial orderInsert requirement. |
Face finish | Insert requirement, available in melamine, painted or veneer finishes, consult manufacturer's literature for information. |
Slots | 9/314/213/328/4Special orderInsert slot width and spacing requirement. |
Core fire rating | Euro Class DFire rated |
Standard product features | Material: Medium density fibreboard (MDF) core with a black acoustically transparent tissue backing. Thickness: 16 mm. Edges:
Sound absorber class (to BS EN ISO 11654): Class D, C, B or A (dependent on insulation and depth of cavity behind panels). Sound absorption coefficient (to BS EN ISO 11654): Dependent on air gap, insulation and depth of cavity behind panels. Fire performance: B-s3, d0 - Euro Class B |
