Continuous Louvre Blade Linius L.066

Name: Continuous Louvre Blade Linius L.066
Brand: 3hj6c8Tsu2WBkYFEZHEprf
SKU: d11BKp76fEyVNWbD87R4Yx

Renson Fabrications Ltd

Continuous aluminium louvre array.

Jump to:

+44 (0)1622 754123 www.rensonuk.net

Description

Continuous Louvre Blade Linius L.066:

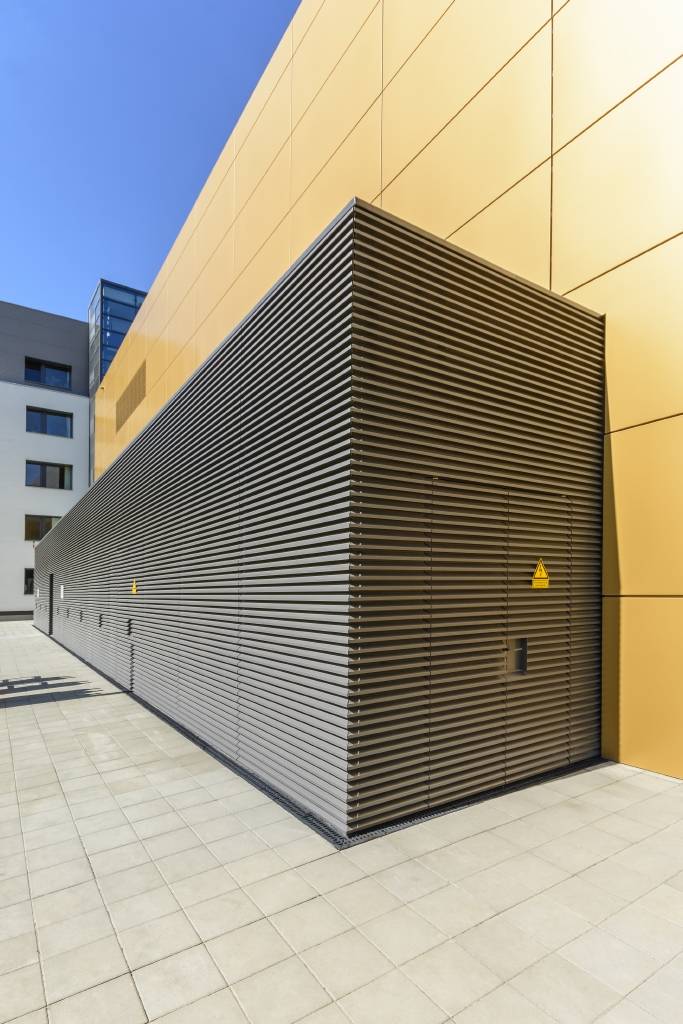

Face mount, vertical panel, weathered horizontal blade, continuous aluminium louvre array, for visual screening, sunshading or ventilation.

Provides ventilation in combination with weather protection. Physical free area: 47 %. Rain protection at airspeed 1 m/s (with mesh 2.3 x 2.3 mm): Average.

Aluminium profiles with choice of finish. Blade centres (vertical): 66 mm. Blade projection (without brackets): 55 mm.

Blades clip onto blade supports type L.066.11. Blade support centres (maximum): 1.4 m.

Suitable for spanning varied substrates.

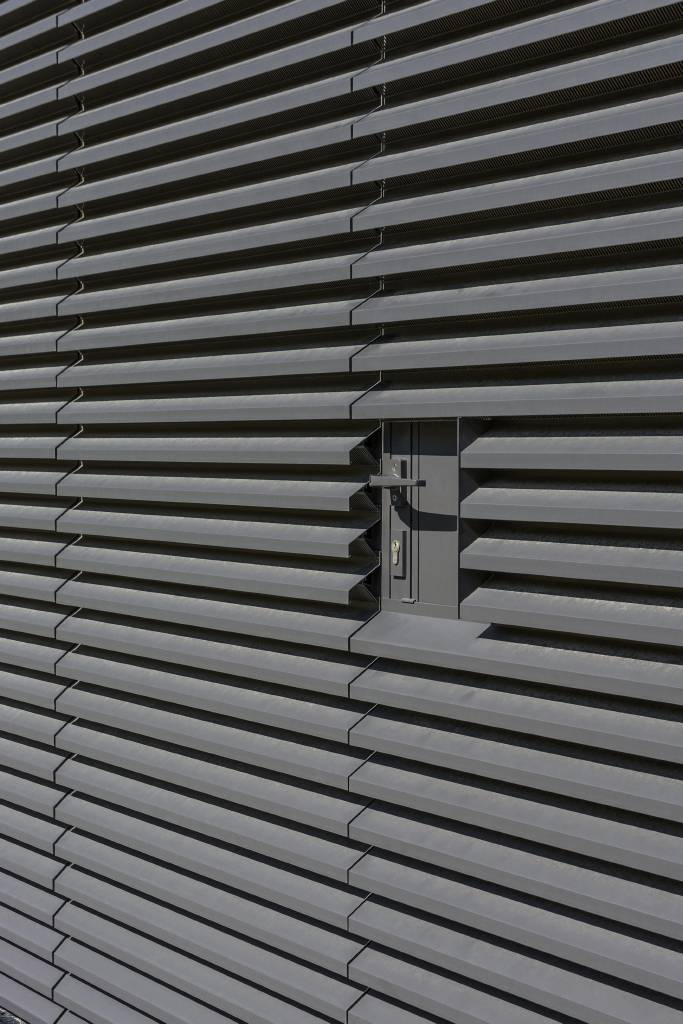

Matching louvre-clad doorsets available with top and bottom pivots.

Continuous Louvre Blade Linius L.066P:

Reduces solar heat gain. Manufacturer offers sunpath diagram analysis, loading analysis and component proposals related to wind conditions of proposed applications.

Enables secure ventilation. Physical free area: 77 %.

Extruded, rectangular section aluminium profiles with choice of finish. Blades at 66 mm centres. Blade projection (without brackets): 53 mm.

Suitable for spanning varied substrates as visual screening.

Blades can be matched to Loggia sliding units.

Suitable for internal use as vertical screen or open ceiling.

General information

Finish [Finish, Other anodized or polyester powder coating finishes may be available to special order]	-
Material	Aluminium alloy: EN AW-6063 T66 (AlMg0.7Si)

Uniclass 2015	Pr_30_59_48_04 Aluminium louvre panel unitsPrimary
CAWS	L10/650 Metal louvres

Product range	Continuous Louvres System / Standard Blades

Specification data - Aluminium louvre panel units

Product Reference	Continuous Louvre Blade Linius L.066 Weathered horizontal blade. Continuous Louvre Blade Linius L.066P
Array	-
Overall dimensions (w x h)	___ x ___ mm As drawing ___
Brackets	-
Type	LZ.4202 60 x 30 mm (l x w). Engages rear of vertical support profile. LZ.4203, angle bracket 80 x 80 x 5 mm (height x projection x gauge). Use with LZ.4211. LZ.4206 60 x 70 mm (l x w). Engages rear of vertical support profile. LZ.4209, angle bracket 80 x 50 x 4 mm (height x projection x gauge). Use with LZ.4211. LZ.4211, rotation bracket Use with angle bracket. Engages rear of vertical support profile. Submit proposal
Vertical centres	___ mm Maximum varies with choice of vertical support profile. As drawing ___ Submit proposal
Vertical support profiles	-
Type	SD.014 40 x 14.5 mm (w x d). Wall or frame mount. Vertical span (maximum): 600 mm. SD.054 40 x 54 mm (w x d). Wall or frame mount. Vertical span (maximum): 2.1 m. SD.100 40 x 100 mm (w x d). Capable of spanning between floors. Vertical span (maximum): 3.8 m. SD.110.11 60.5 x 110 mm (w x d). SD.110.12 101 x 110 mm (w x d). LD.0065, vertical framing 30 x 6.5 mm (w x d). Light duty. Wall or frame mount. LD.0195, vertical framing 36 x 17.5 mm (w x d). Average duty. Wall or frame mount. Vertical span (maximum): 600 mm. LD.0460, vertical framing 36 x 44 mm (w x d). Heavy duty. Wall or frame mount. Vertical span (maximum): 2 m. LD.0995, vertical framing 36 x 97.5 mm (w x d). Heavy duty. Capable of spanning between floors. Vertical span (maximum): 2.8 m. LD.0108 30 x 10.8 mm (w x d). Adaptor profile required for SD.014, SD.054 and SD.100. Submit proposal
Vertical centres	___ mm Maximum varies with choice of blade. As drawing ___ Submit proposal
Blade support clips	-
Type	L.066P.11 For single blade. L.066P.12 For double blade. Allows thermal expansion.
Vertical centres	___ mm As drawing ___
Corners	Not required Corner, mitred externally, angle ___ º, expansion tolerance Corner, mitred externally, angle ___ º, tight tolerance Corner, mitred internally, angle ___ º, expansion tolerance Corner, mitred internally, angle ___ º, tight tolerance As drawing ___ Submit proposal
Finish (aluminium components)	Anodized, natural 20 µ. Polyester powder coating, RAL colour ___, sheen ___ % 60–70 µ. Polyester powder coating, Syntha Pulvin colour ___, sheen ___ % 60–70 µ.

Standard product features	Material: Aluminium alloy: EN AW-6063 T66 (AlMg0.7Si).
Product Options	Finish: Other anodized or polyester powder coating finishes may be available to special order.
