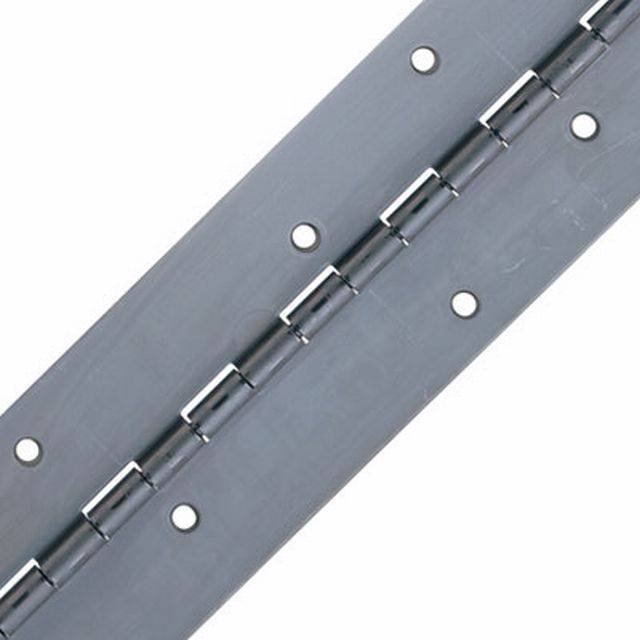

Continuous hinges
Description

A range of continuous hinges in a variety of sizes and finishes.

General information

Uniclass 2015

Pr_30_36_36_17 Cranked hingesPrimary

CAWS

P21/320 Door hinges

P21/8 Door hinges

Specification data - Cranked hinges

Product Reference

Continuous hinges

Type

351.12.000

101 mm open width

351.13.000

39 mm open width

351.13.010

51 mm open width

351.14.000

32 mm open width

351.14.010

38 mm open width

351.14.020

51 mm open width

351.15.900

25 mm open width

351.15.910

32 mm open width

351.15.920

38 mm open width

351.16.800

38 mm open width

351.16.810

51 mm open width

Accessories

Hospa special fixing screws

2.5 mm diameter

Hospa special fixing screws

2.5 mm diameter

Hospa special fixing screws

2.5 mm diameter

Hospa special fixing screws

2.5 mm diameter

Standard product features

351.12.000:

  • Open width: 101 mm.
  • Length: 2100 mm.
  • Thickness: 1.6 mm.
  • Extra heavy duty, suitable for vandal resisting door applications.
  • Material: Matt stainless steel with stainless steel pin.
  • Fixing screws: 5 mm diameter.

351.13.000 and 010:

  • Open width: 39 or 51 mm.
  • Length: 1800 mm.
  • Thickness: 1.0 mm.
  • Heavy duty.
  • Material: Matt stainless steel with stainless steel pin.
  • Fixing screws: 4 mm diameter.

351.14.000, 010 and 020:

  • Open width: 32, 38 or 51 mm.
  • Length: 1800 mm.
  • Thickness: 1.0 mm.
  • Medium duty.
  • Material: Polished stainless steel with stainless steel pin.
  • Fixing screws: 3.5 mm diameter.

351.16.800 and 810:

  • Open width: 38 or 51 mm.
  • Length: 1800 mm.
  • Thickness: 0.9 mm or 1.2 mm.
  • Medium duty.
  • Material: Polished brass.
  • Fixing screws: 3.5 mm diameter.

351.15.900, 910 and 920:

  • Open width: 25, 32 or 38 mm.
  • Length: 1800 mm.
  • Thickness: 1.0 mm.
  • Medium duty.
  • Material: Polished aluminium.
  • Fixing screws: 2.5 mm diameter.

Product Options

Accessories:

Hospa special fixing screws:

  • Countersunk head with Pozidriv® cross slot.
  • Sizes: 3.5, 4 and 5 mm diameter.
  • Finishes: Available to match the hinges.
