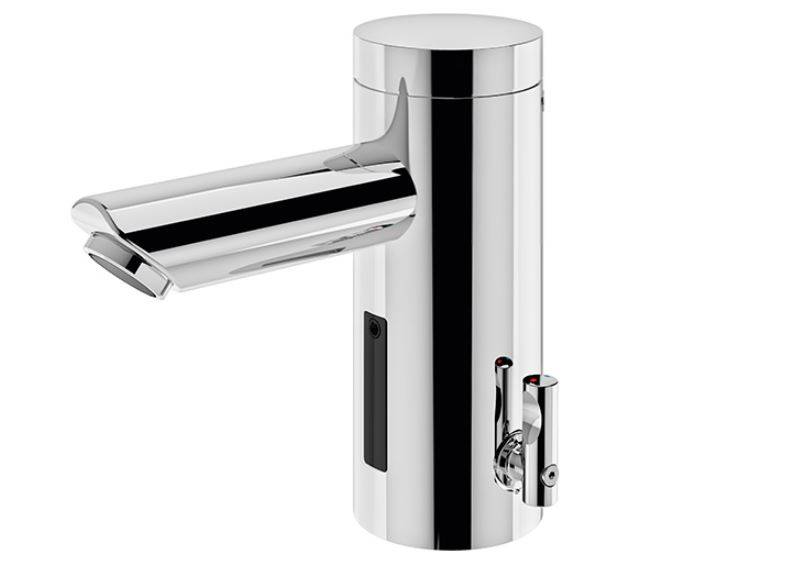

CONTI+ Lino Lavatory Faucet L10/L20/L30/L40 With IR Sensor, Temperature-Mixing, G3/8

Verified by manufacturer 5 months ago

120.028.11 - lino lavatory faucet L30

Ecoprod Technique Variant:

Touchless, electronically controlled lavatory faucets with IR sensors and temperature-mixing.

Jump to:
01483 773373 Website

Application

For use in public bathrooms.

Description

Touchless, electronically controlled lavatory faucets with IR sensors, temperature-mixing and low pressure (for open water heating).


Features and benefits:

  • Cold water supply connection and decentralized water treatment (boiler).
  • Built in 0.5 mm mesh filter.
  • Modular single-piece design without separate installation box, sturdy brass housing, chromed.
  • Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator.
  • Infrared sensor (with automatic setting feature), microprocessor.
  • Follow-up time and sensor sensitivity adjustable with function key.
  • Cold water supply connection for decentralized water treatment (boiler).
  • With flexible high-pressure hoses, flow limiters and built-in filters.
  • Continuous water flow time and hygienic flush time adjustable with function key.
  • Temperature adjustable or fixable (vandal-resistant construction).
  • Adjustable hot water limitation (mechanically).
  • 12, 24 or 48-hour hygienic flush activatable with function key.
  • Compatible with CNX and Service APP: control of stored operational data, settings and control functions.
  • Variant available with thermal protection.

General information

Color

Silver

Grey

Gold

Finish

Chrome

Polished

Brushed

Material

Brass

Nickel

Shape

Other

Length

110 mm

Guidance for specification option:

Water supply to spout. Consult manufacturer for further details.

Width

33 mm

Guidance for specification option:

Base diameter.

Height

136 mm

Guidance for specification option:

Base to spout height.

Warranty description

Two year

Uniclass

Pr_40_20_87_98 Washbasin tapsPrimary

CAWS

N13/335 Washbasins

N13/30 Washbasins

Specification data - Washbasin taps

Standards

To DIN EN 200.

Approvals

Water Regulations Approval Scheme (WRAS)-approved.

Form

Automatic-action taps (touchless).

Materials

-

Body

Brass.

Finish and colour

Chrome-plated.

Flow rate (maximum)

6 L/min at 3 bar.

Guidance for specification option:

Operating pressure: 0.3–10 bar.

Water supply temperature (maximum)

80°C.

Integral accessories

IR sensor.

Accessories

Not required.

Connections

Angle valve: G3/8".

Power supply

Photovoltaic cells with 6 V Lithium CRP2 (support batteries).

Guidance for specification option:

Lifetime up to six years.

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Material

Brass

Nickel

Similar products from Ecoprod Technique

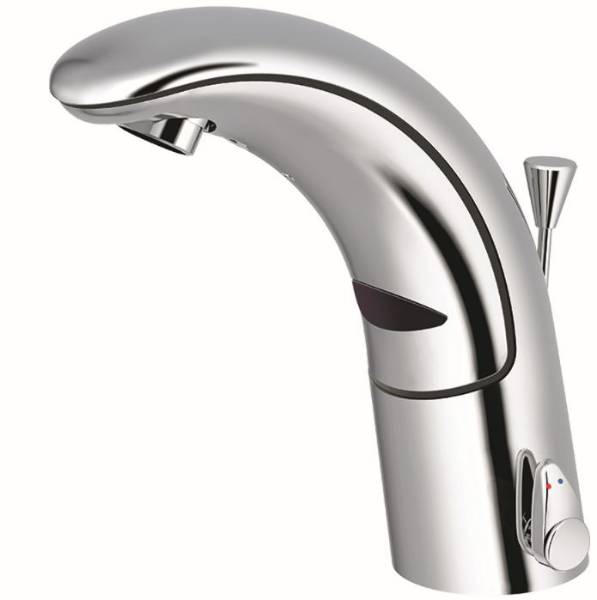

CONTI+ iQ Lavatory Faucet A30, Chrome, IR-Sensor, Click G3/8

CONTI+ iQ Lavatory Faucet A30, Chrome, IR-Sensor, Click G3/8

CONTI+ Lino AS L13 Pillar Taps With Thermostatic Anti-Scald Protection

CONTI+ Lino AS L13 Pillar Taps With Thermostatic Anti-Scald Protection

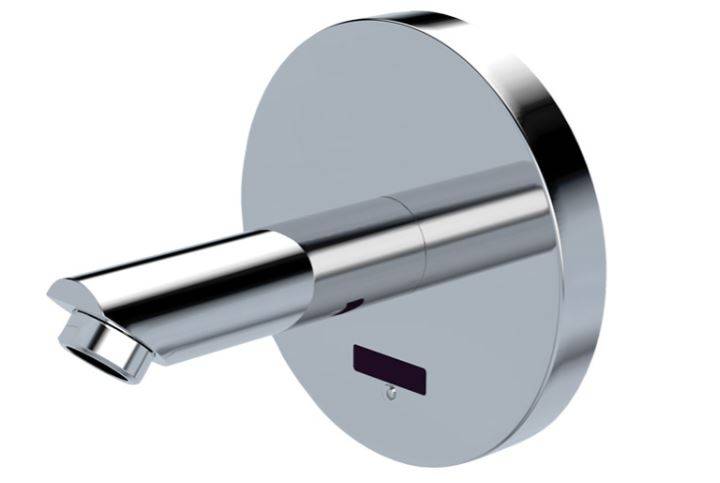

CONTI+ Lino Concealed Wall-Mounted Faucet WV10/WV20, Chrome, IR Sensor

CONTI+ Lino Concealed Wall-Mounted Faucet WV10/WV20, Chrome, IR Sensor

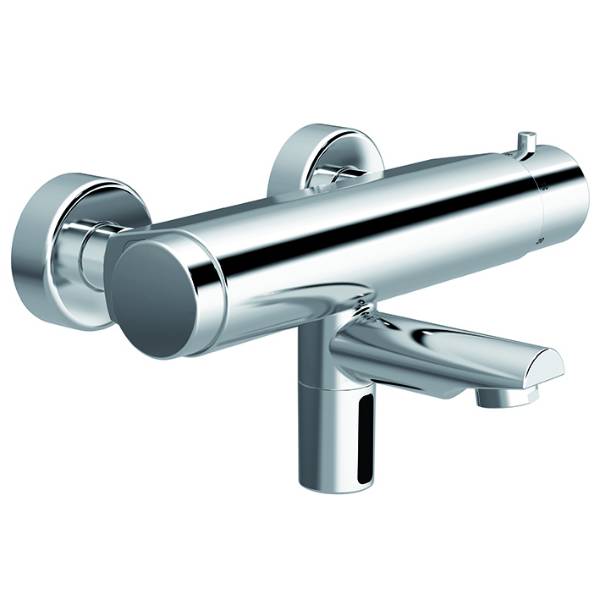

CONTI+ Lino Exposed Wall-Mounted Faucet With Thermostat, G3/8
