Application

Lofts

Description

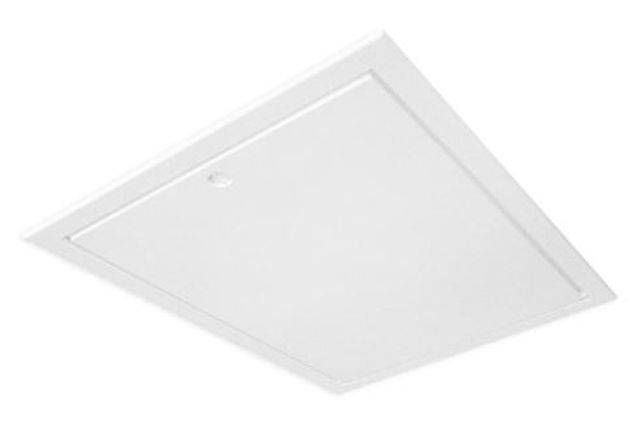

Loft hatch which is compliant with Part L of the Building Requirements.


Features and benefits:

  • Manufactured from high impact white styrene plastic and 100 mm of expanded polystyrene (EPS) insulation.
  • Flush-fitting.
  • Features a concealed inner and outer frame seal.
  • UV stable.
  • Smooth satin finish as standard.
  • Has Global Warming Potential and Ozone Depletion Potential rating of zero.
  • Exceeds NHBC requirements.
  • Air tested in UKAS accredited test house.

General information

Color

White

Finish

Satin

Smooth

Material

Polystyrene

Guidance for specification option:

Insulation.

Plastic

Guidance for specification option:

Main body: White styrene plastic.

Shape

Rectangle

Size

533 x 630 mm (clear opening once installed)

Guidance for specification option:

Structural opening: 562 x 762 mm.

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

L20/630 Hatches

Product range

Access

Specification data - Access panels

Position

Ceiling mounted.

Size

533 x 630 mm (clear opening once installed).

Guidance for specification option:

Structural opening: 562 x 762 mm.

Panel

-

Material

White styrene plastic.

Integral finish

Smooth satin.

Weight

2.8 kg.

Thermal transmittance (U-Value)

0.35 W/m²K.

Depth

100 mm.
