QA Certificate
Certificate type
BSI Kitemark
Certificate type

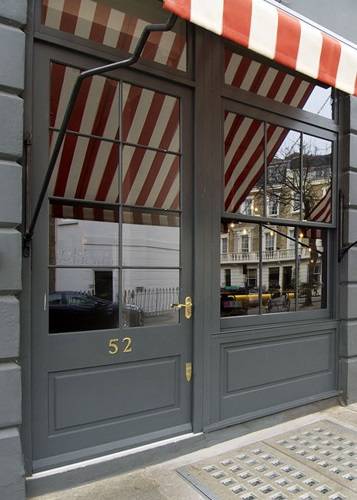

Traditionally styled timber single doors providing outstanding high security performance and equipped with multi point locking systems which are Secured by Design accredited.

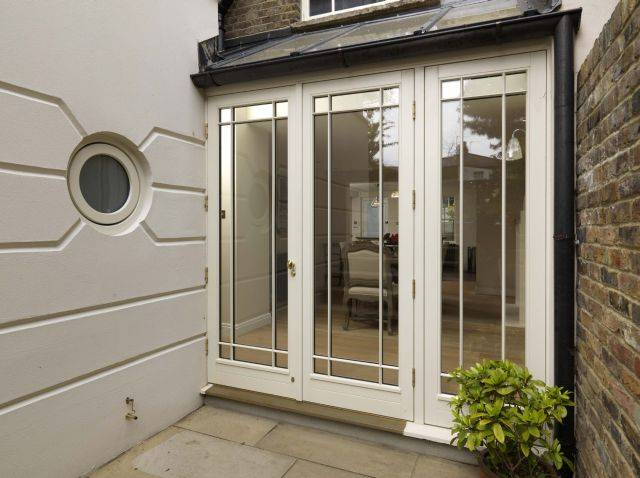

Single and French doorsets in traditional profiles to complement the sash and casement window products.
Finish | Colour from RAL classic range Insert requirement. Colour match Insert requirement. Dual finish Insert requirement. Three coats of spray applied water based micro-porous M and W stain Three coats of spray applied water based micro-porous white paint (RAL 9003) |
Color | All RAL colours and stain options |
Material | Wood |
WarrantyDescription | Timber: 30; Glazing, ironmongery and seals: 10; Paint finish: 10; Stain finish: 5 |
Uniclass 2015 | |
CAWS | L20/420 Wood doorsets L20/55 Doorsets |
Product Reference | Conservation Single and French Doors |
Timber | Engineered AccoyaRecommended in coastal areas. Engineered clear grade knot free Siberian Larch frame and door leaves with Hardwood Sapele SillAs standard. Engineered Hardwood Red Grandis |
Frame sections (width x depth) | 68 x 93 mm90 x 93 mm timber sill44 x 142 mm Hardwood Sapele timber sub sill with low level aluminium threshold mobility compliant)Low level aluminium threshold (mobility compliant) no timber sub sill |
Sill projection | 60 mm35 mm85 mm110 mm140 mm90 x 93 mm sill required. Flush |
Horns | Not requiredAs drawing/ specified |
Opening | Open inOpen out |
Door pattern | See Options and insert requirements. |
Hinges | 29 mm projection hingesAntique brass fixed pin hingesBrass fixed pin hingesLift off hinges powder coated to RAL colourInsert requirement. Lift off hinges powder coated white (RAL 9003)Oil rubbed bronze fixed pin hingesPolished chrome fixed pin hingesSatin chrome fixed pin hinges |
Cabin hooks | Not requiredRequiredRecommended with projection hinges. |
Head drip | Not requiredRequired |
Finish | Colour from RAL classic rangeInsert requirement. Colour matchInsert requirement. Dual finishInsert requirement. Three coats of spray applied water based micro-porous M and W stainThree coats of spray applied water based micro-porous white paint (RAL 9003) |
Frame profile moulding | Lambs TongueOvoloSquare |
Internal Glazing Bars and/or Perimeter Bead | 18 mm Fine Lambs Tongue18 mm Ovolo18 mm Square22 mm Lambs Tongue22 mm Ovolo22 mm Square28 mm OvoloBlack warm edge perimeter spacer and integral glazing bars within unit cavity - 24 & 24.8 glazingWhite warm edge perimeter spacer and integral glazing bars within unit cavity - 24 & 24.8 glazingBlack aluminium perimeter spacer - 14 & 14.8 glazingWhite aluminium perimeter spacer - 14 & 14.8 glazing |
External Glazing Bars | 18 mm chamfered putty bar22 mm chamfered putty bar28 mm chamfered putty bar6 mm ‘antiqued’ lead to internal and external faces of the outer pane9 mm ‘antiqued’ lead to internal and external faces of the outer pane12 mm ‘antiqued’ lead to internal and external faces of the outer pane |
Glass units and whole product U-values/ G-values | Fully glazed door with 24 mm double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Planitherm OneWhole door U-value: 1.4 W/m²K / G-value: 0.52. Fully glazed door with 24 mm double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Planitherm Total+Whole door U-value: 1.4 W/m²K / G-value: 0.73. Fully glazed door with 24.8 mm sound control laminated double glass unit comprising 6.4 mm sound control laminated / 14 mm Argon / 4 mm Tough Planitherm Total+Whole door U-value: 1.5 W/m²K / G-value: 0.66. Fully glazed door with 14 mm double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Planitherm OneWhole door U-value: 1.6 W/m²K / G-value: 0.52. Fully glazed door with 14.8 mm laminated double glazed unit comprising 6.8 mm laminated / 4 mm Krypton / 4 mm Tough Planitherm OneWhole door U-value: 1.9 W/m²K / G-value: 0.52 (Silver aluminium spacer only). Half panel/ Half glazed door with 24 mm double glass unit comprising 4 mm Tough / 16 mm Argon / Tough Planitherm Total+Whole door U-value: 1.4 Wm²K / G-value: 0.72. Full PanelWhole door U-value: 1.4 Wm²K for Open out / 1.5 Wm²K for Open in. |
Panels | Not required28 mm insulated flat panel28 mm insulated flat panel with bolection moulding28 mm insulated grooved panel28 mm insulated grooved panel with bolection moulding45 mm insulated raised and fielded panel |
Ironmongery | Black iron lever handleBrass straight lever handleBrass swan neck lever handlePewter lever handlePolished chrome straight lever handlePolished chrome swan lever handleSatin chrome straight lever handleSatin chrome swan lever handle |
Trickle ventilation | Not requiredConcealed with timber head dripTrickle ventilator (4600 mm EA)Surface mounted. |
Standard product features | Timber: Engineered clear grade knot free timber, all FSC certified. Chain of Custody can be specified. Finish: Three coat spray applied factory finish using water based micro-porous paint/ stain. Weatherseal: Deventer TPE Thermoplastic Elastomer. Glazing: Internally dry glazed and vented with glazing tapes in accordance with Glass and Glazing Federation requirements. Beading: Internal cassette beading. Performance:
Security: Secured by Design. |
Product Options | Type: Include specific dimensions and/ or drawing with specification. Door pattern: A wide range of pattern and size options is available; consult manufacturer's literature and insert requirement. Available patterns include:
Ironmongery: Selected Croft ironmongery available on request. |
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | IFC2X3 | 2 | 1.3 |
![]() | Revit 2015 | 2 | 1.3 |
