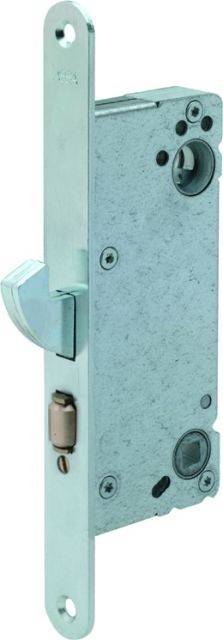

Connect Roller Bolt Lock 313
Lockcase for interior doors, sliding and swing doors, shops and entrance doors etc.
Locks for shops and entrance doors to private houses, industrial premises, offices or for any situation where a key operated hookbolt lock is required plus a roller latch and lever handles.
Application:
Locks for shops and entrance doors to private houses, industrial premises, offices or for any situation where a key operated hookbolt lock is required plus a roller latch and lever handles.
Features:
- Available with backset 35, 50 or 70 mm.
- Steel hookbolt thrown 23.5 mm by 90° turn of key or thumbturn. Interlocks door and frame.
- Brass roller latch retains door in closed position. The roller latch may be retracted by lever handle, or simply by pushing/pulling the door. Note that the key/thumbturn does not retract the roller latch.
Function:
- The hook bolt is operated with key or thumbturn.
- The roller latch is depressed by the striking plate.
Suitable cylinders:
Scandinavian oval or round:
- ASSA 5-Pin.
- ASSA Flexcore Plus.
- ASSA 4800.
- ASSA Twin Combi.
- ASSA dp4400.
- ASSA CLIQ.
Additional information for this product is available from:
http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644145
| Features | Available with backset 35, 50 or 70 mm Steel hookbolt thrown 23.5 mm by 90° turn of key or thumbturn. Interlocks door and frame Brass roller latch retains door in closed position. The roller latch may be retracted by lever handle, or simply by pushing/pulling the door. Note that the key/thumbturn does not retract the roller latch |
| Uniclass 2015 | |
| CAWS | P21/24 Door locks P21/515 Door locks |
| Product Reference | Connect Roller Bolt Lock 313, Double CylinderConnect Roller Bolt Lock 313, Single CylinderConnect Roller Bolt Lock 313, Single Cylinder And Thumbturn |
| Handing | Not applicableDouble doors. Left hand inward openingLeft hand outward openingRight hand inward openingRight hand outward opening |
| Backset | 35 mm50 mm70 mm |
| Colour/ Finish | Bright zincSatin chromeSpecial finish. |
| Striking plate | Not required36 05 85Single swing strikes, for 44 mm doors. 36 05 87Single swing strikes, for 54 mm doors. 36 05 86Double swing strikes, for 44 mm doors. 36 05 88Double swing strikes, for 54 mm doors. |
