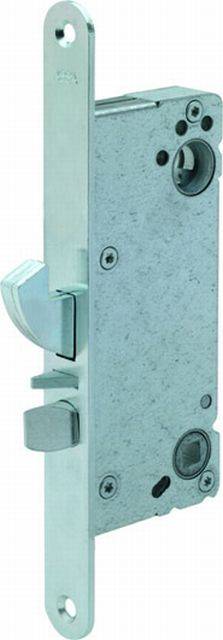

Connect Escape Sash Lock 640
Application

Locks for doors where unrestricted exit at all times is required. Suitable for classrooms, offices, industrial premises, doors to flats and apartments, hotel bedrooms and commercial premises.

Description

Application:

Locks for doors where unrestricted exit at all times is required. Suitable for classrooms, offices, industrial premises, doors to flats and apartments, hotel bedrooms and commercial premises.

Features:

  • Available with backset 35, 50 or 70 mm.
  • Hardened steel hookbolt thrown 23.5 mm by 90° turn of key or thumbturn. Latchbolt deadlocks automatically when door is closed.
  • Latchbolt operated by external lever handle. Internal lever handle retracts both bolts, giving single-action exit at all times.
  • Available with built-in microswitch.
  • Handing of the latchbolts is reversible.
  • Latchbolts of steel for fire-rated doors.
  • Supplied with striking plate.
  • Can be combined with electric strikes.

Function:

- Outside:

  • The deadbolt is operated with key.
  • The latchbolt is retracted with handle.

- Inside:

  • The deadbolt is operated with thumbturn.
  • Latchbolt and deadbolt are retracted with handle.

Suitable cylinders:

Scandinavian oval or round:

  • ASSA 5-Pin.
  • ASSA Flexcore Plus.
  • ASSA 4800.
  • ASSA Twin Combi.
  • ASSA dp4400.
  • ASSA CLIQ.

Additional information for this product is available from:

http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644145

General information

Features

Available with backset 35, 50 or 70 mm

Hardened steel hookbolt thrown 23.5 mm by 90° turn of key or thumbturn. Latchbolt deadlocks automatically when door is closed

Latchbolt operated by external lever handle. Internal lever handle retracts both bolts, giving single-action exit at all times

Available with built-in microswitch

Handing of the latchbolts is reversible

Show more

Uniclass 2015

Pr_30_36_08_24 Door latches

CAWS

P21/24 Door locks

P21/515 Door locks

Specification data - Door latches

Product Reference

Connect Escape Sash Lock 640, Double Cylinder

Connect Escape Sash Lock 640, Single Cylinder

Connect Escape Sash Lock 640, Single Cylinder And Thumbturn

Handing

Left hand inward opening

Left hand outward opening

Right hand inward opening

Right hand outward opening

Backset

35 mm

50 mm

70 mm

Colour/ Finish

Bright zinc

Satin chrome

Special finish.

Microswitch

Not required

MA

Monitor bolt deadlocking and bolt withdrawn.
