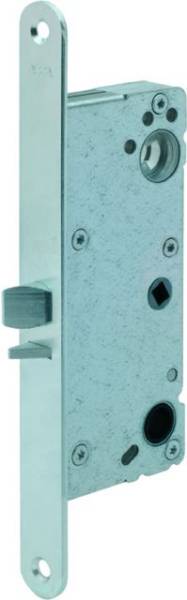

Connect Emergency Nightlatch 732
Application

Locks permitting escape to non-keyholders in an emergency situation. Ideal for offices, emergency access doors, etc.

Description

Application:

Locks permitting escape to non-keyholders in an emergency situation. Ideal for offices, emergency access doors, etc.

Features:

  • Available with backset 35, 50 or 70 mm.
  • Bolt deadlocks automatically when door is closed. Key for locking bolt into lockcase. Bolt reversible without opening lockcase.
  • Emergency handle on inside withdraws latchbolt to permit escape; door re-locks automatically when closed.
  • Supplied with striking plate.
  • The latchbolt can be locked back.
  • Handing of the latchbolt is reversible.
  • Can be combined with electric strikes.
  • Available with a built-in microswitch.

Function:

  • Deadlocking latchbolt is retracted with key or thumbturn
  • The lock-back mechanism in the faceplate has the following function: Latchbolt is locked back with a faceplate key.

Suitable cylinders:

Scandinavian oval or round:

  • ASSA 5-Pin.
  • ASSA Flexcore Plus.
  • ASSA 4800.
  • ASSA Twin Combi.
  • ASSA dp4400.
  • ASSA CLIQ.

Additional information for this product is available from:

http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644145

General information
Features

Available with backset 35, 50 or 70 mm

Bolt deadlocks automatically when door is closed. Key for locking bolt into lockcase. Bolt reversible without opening lockcase

Emergency handle on inside withdraws latchbolt to permit escape; door re-locks automatically when closed

Supplied with striking plate

The latchbolt can be locked back

Handing of the latchbolt is reversible

Can be combined with electric strikes

Available with a built-in microswitch

Uniclass 2015
Pr_30_36_08_24 Door latchesPrimary
CAWS

P21/24 Door locks

P21/515 Door locks

Specification data - Door latches
Product Reference

Connect Emergency Nightlatch 732, Double Cylinders

Connect Emergency Nightlatch 732, Single Cylinder

Handing

Left hand inward opening

Left hand outward opening

Right hand inward opening

Right hand outward opening

Backset

35 mm

50 mm

70 mm

Colour/ Finish

Bright zinc

Satin chrome

Special finish.

Microswitch

Not required

MG

Monitors bolt deadlatching, use of cylinder or thumbturn and use of emergency accessory.

Accessories

None

179B

Emergency accessory set.

179B Double

As 179B, supplied in pairs for emergency access from both sides of the door.

S4 179B

As 179B, for 35 mm backset lock.

Product Options

Accessories:

Emergency accessory sets feature backplates and lever handle. The handle can be secured by a breakable green plastic chain, which gives a clear visual indication when the door has been opened.

  • 179A: With handle and cylinder holes: For use with 711 deadlock and 732 nightlatch (50 or 70 mm backset only). Tested and approved to BS EN 179.
