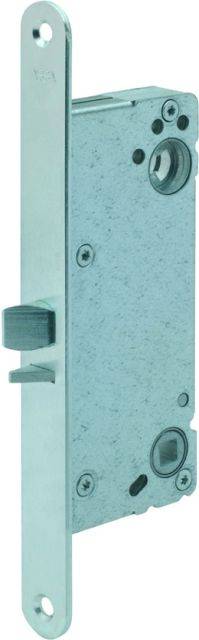

Connect Emergency Nightlatch 235
Lockcases for perimeter and escape doors, high voltage rooms, power supply rooms etc.
Locks for exit doors offering a high degree of security, but with unrestricted exit in an emergency. Ideally suited for hotels, factories, hospitals, schools, offices etc.
Application:
Locks for exit doors offering a high degree of security, but with unrestricted exit in an emergency. Ideally suited for hotels, factories, hospitals, schools, offices etc.
Features:
- Available with backset 35, 50 or 70 mm.
- Bolt deadlocks automatically when door is closed. Key for locking bolt into lockcase. Bolt reversible without opening lockcase.
- Light handle follower springing, suitable for use with emergency break-dome thumbturn.
- Supplied with striking plate.
- Steel latchbolts for fire-rated doors.
- Can be combined with electric strikes.
- Available with a built-in microswitch.
Function:
- Latchbolt is retracted with key, thumbturn or break-dome emergency exit device.
- The lock-back mechanism in the faceplate has the following functions: Latchbolt cannot be locked back.
Suitable cylinders:
Scandinavian oval or round:
- ASSA 5-Pin.
- ASSA Flexcore Plus.
- ASSA 4800.
- ASSA Twin Combi.
- ASSA dp4400.
- ASSA CLIQ.
Additional information for this product is available from:
http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644145
| Features | Available with backset 35, 50 or 70 mm Bolt deadlocks automatically when door is closed. Key for locking bolt into lockcase. Bolt reversible without opening lockcase Light handle follower springing, suitable for use with emergency break-dome thumbturn Supplied with striking plate Steel latchbolts for fire-rated doors Can be combined with electric strikes Available with a built-in microswitch |
| Uniclass 2015 | |
| CAWS | P21/24 Door locks P21/515 Door locks |
| Product Reference | Connect Light Sprung Nightlatch Without Lock-Back 235, Double CylinderConnect Light Sprung Nightlatch Without Lock-Back 235, Single CylinderConnect Light Sprung Nightlatch Without Lock-Back 235, Single Cylinder And Thumbturn |
| Handing | Left hand inward openingLeft hand outward openingRight hand inward openingRight hand outward opening |
| Backset | 35 mm50 mm70 mm |
| Colour/ Finish | Bright zincSatin chromeSpecial finish. |
| Microswitch | Not requiredMCMicroswitch monitors bolt deadlatching, use of cylinder or thumbturn and use of emergency accessory. |
| Product Options | Variation: Various options available, please consult technical literature for more details. |
