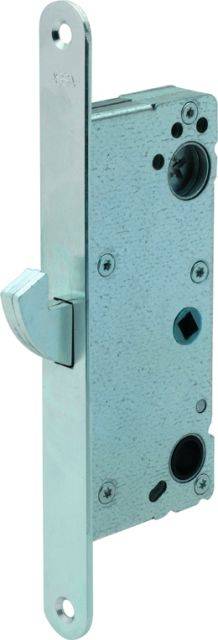

Connect Emergency Deadlock 711
Application

Locks permitting escape to non-keyholders in an emergency situation. Ideal for offices, emergency access doors, etc.

Description

Application:

Locks permitting escape to non-keyholders in an emergency situation. Ideal for offices, emergency access doors, etc.

Features:

  • Available with backset 35, 50 or 70 mm.
  • Steel hookbolt thrown 23.5 mm by 90° turn of key or thumbturn.
  • Emergency handle on inside withdraws hookbolt to permit escape; hookbolt remains retracted until re-locked by key.
  • Supplied with striking plate.
  • Available with built-in microswitch.

Function:

The hook bolt is operated with key, thumbturn or escape handle.

Suitable cylinders:

Scandinavian oval or round:

  • ASSA 5-Pin.
  • ASSA Flexcore Plus.
  • ASSA 4800.
  • ASSA Twin Combi.
  • ASSA dp4400.
  • ASSA CLIQ.

Additional information for this product is available from:

http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644145

General information

Features

Available with backset 35, 50 or 70 mm

Steel hookbolt thrown 23.5 mm by 90° turn of key or thumbturn

Emergency handle on inside withdraws hookbolt to permit escape; hookbolt remains retracted until re-locked by key

Supplied with striking plate

Available with built-in microswitch

Uniclass 2015

Pr_30_36_08_24 Door latches

CAWS

P21/24 Door locks

P21/515 Door locks

Specification data - Door latches

Product Reference

Connect Emergency Deadlock 711, Double Cylinders

Connect Emergency Deadlock 711, Single Cylinder

Handing

Left hand inward opening

Left hand outward opening

Right hand inward opening

Right hand outward opening

Backset

35 mm

50 mm

70 mm

Colour/ Finish

Bright zinc

Satin chrome

Special finish.

Microswitch

Not required

ME

Monitors bolt deadlocking and use of emergency accessory.

Accessories

None

179B

Emergency accessory set.

179B Double

As 179B, supplied in pairs for emergency access from both sides of the door.

S4 179B

As 179B, for 35 mm backset lock.

Product Options

Accessories:

Emergency accessory sets feature backplates and lever handle. The handle can be secured by a breakable green plastic chain, which gives a clear visual indication when the door has been opened.

  • 179A: With handle and cylinder holes: For use with 711 deadlock (50 or 70 mm backset only). Tested and approved to BS EN 179.
