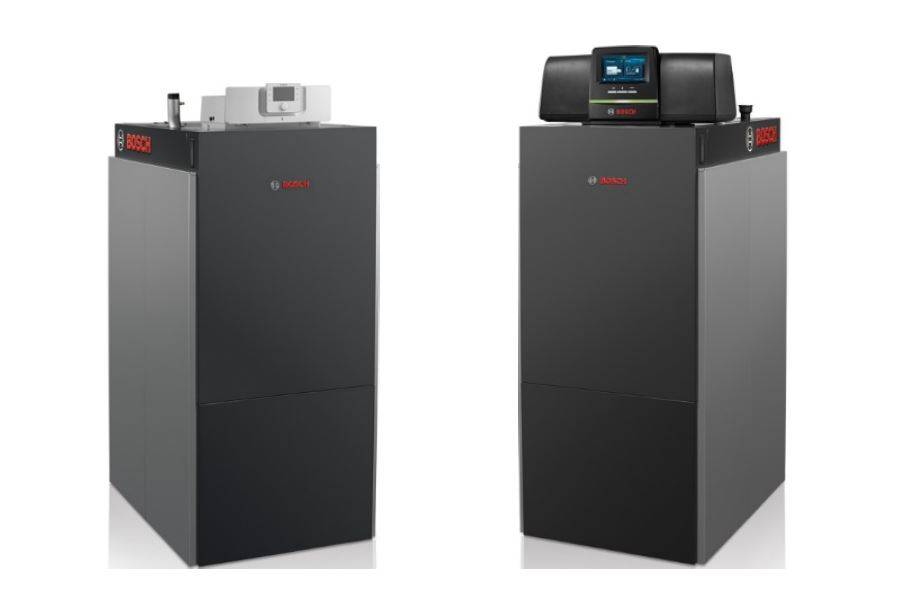

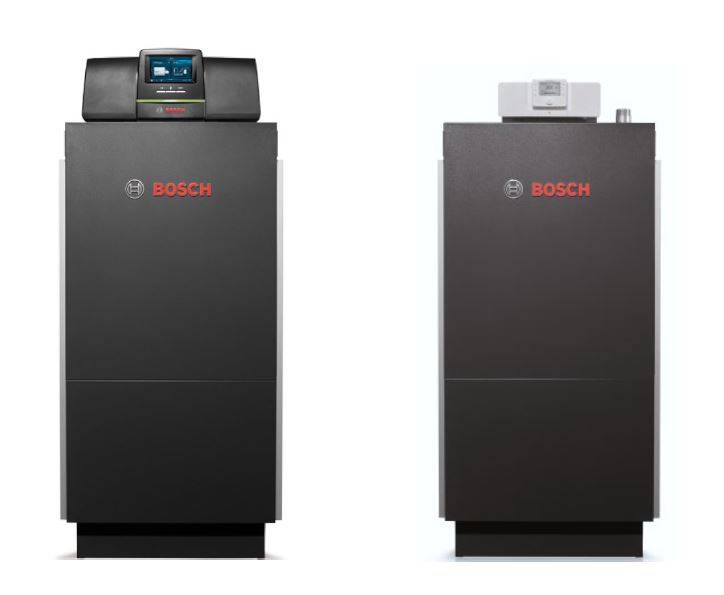

Condens 7000 F/FP - Condensing Boiler

Verified by manufacturer 1 month ago

Condens 7000F - 75

Bosch Thermotechnology Ltd Variant:

Condensing floor-standing commercial boilers, suitable for all heating systems.

Jump to:
+44 (0)1905 754624 Website

Application

  • Suitable for medium to large commercial applications of 75 to 500 kW.
  • Suitable for all heating systems.

Description

Condensing floor-standing commercial boilers, suitable for all heating systems. The boiler is available in nine different output ratings from 75 to 500 kW. Cascading 16x allows you to achieve outputs of up to 8MW. This makes the Condens 7000 F/FP the suitable solution not only for single-family homes and apartment buildings, but for commercial premises too.


Features and benefits:

  • For medium to large commercial applications of 75 to 500 kW.
  • Removable side panels and directly accessible components allow for quick servicing.
  • Simple integration in a variety of heating systems possible.
  • Easy to operate with the intelligent Control 8000.
  • Effortlessly change the fuel type from natural gas to liquid gas (and vice versa).
  • The boiler's compact dimensions and low weight make it relatively easy to transport.
  • Installation is quick and easy thanks to the specially developed X frame and the straightforward flue gas connection, which can be set up either behind or in front of the boiler.
  • The modulating gas premix burner automatically adapts to the current heat demand.
  • This boiler will enable the heating system to work extremely efficiently even under partial load.
  • The boiler boasts an integrated Internet interface, making it easy and convenient to control remotely using a smartphone or tablet with EasyRemote or HomeCom from Bosch.

General information

Color

Black

Finish

Other

Material

Metal

Aluminium

Shape

Rectangle

Length

736 mm

914 mm

1317 mm

1903 mm

2088 mm

Width

670 mm

803 mm

Height

1470 mm

1582 mm

Warranty description

Two year

Uniclass

Pr_60_60_08_34 Gas-fired condensing boilersPrimary

CAWS

T90/312 Boilers, gas-fired condensing

T90/312 Boilers, gas-fired condensing

Specification data - Gas-fired condensing boilers

Standards

-

Boilers with heat input greater than 70 kW but not exceeding 1000 kW

To BS EN 15502-1 and BS EN 15502-2-1.

Guidance for specification option:

IGE/up/10 and BS 6644 for installation standards.

Output

15.5—69.4 kW (80/60 °C); 17.2—75.0 kW (50/30 °C).

Manufacturer guidance

Nominal Heat Output.

Seasonal efficiency (gross calorific value (minimum))

95.9%.

NOx emissions (maximum)

45 mg/kW·h.

Mounting

Floor mounted.

Operating pressure

6 bar.

Guidance for specification option:

4 bar safety valve with pump group as standard, optional 6 bar safety valve as additional extra.

Operating temperature

95℃.

Guidance for specification option:

The maximum flow temperature is dependent on controls used. Maximum of 95°C is possible with 8000 series controls, with the MX controls, the maximum temperature is reduced to 85°C.

Manufacturer guidance

Maximum flow temperature.

Heat exchanger

Aluminium.

Fuel

LPG.

Natural gas.

Electrical supply type

Single phase.

Accessories

Not required.

Flue.

Hydraulic.

Safety and control accessories.

Manufacturer guidance

Consult manufacturer for information and insert requirements.

Input

15.8—70.8 kW.

Manufacturer guidance

Rated Heat Input.

Efficiency

98.0—108.4%.

Manufacturer guidance

Net efficiency.

Partial load 30% in accordance with EN 15502.

Flow rate (maximum)

7.1—32.5 g/s (80/60℃); 6.8—31.8 g/s (50/30℃).

Manufacturer guidance

Flue gas mass flow rate.

Resistance

70—2 mbar.

Manufacturer guidance

Water flow resistance.

ΔT 10 k—ΔT 50 k.

Noise level at 1 m maximum

57.4 db (A).

Manufacturer guidance

Full load.

Power supply

230 VAC, 50 Hz.

Manufacturer guidance

Rating.

Ingress protection

IPX0D.

Dimensions

1470 x 736 x 670 mm.

Weight

132 kg.

Temperature

110℃.

Manufacturer guidance

Safety temperature cut-out.

WaterContent

18.2 L.

Pressure

150 Pa.

Manufacturer guidance

Available flue pressure.

Power consumption

28—83 W. `

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Germany

Recyclability

85%
