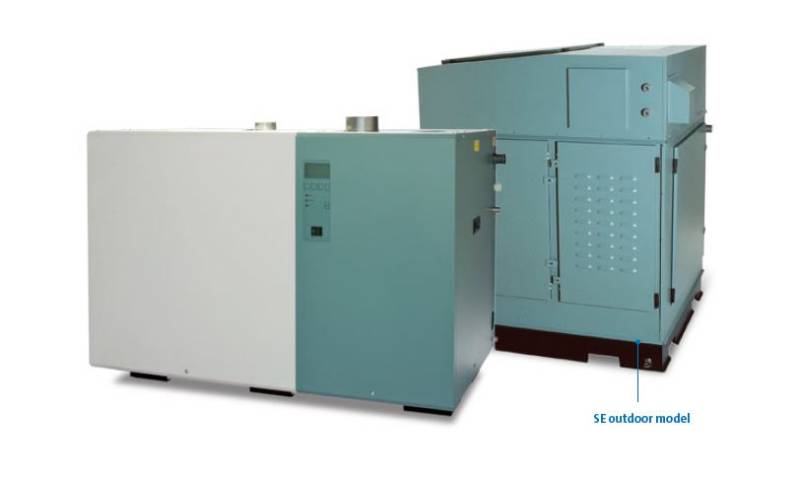

Condair SE - Steam-To-Steam Humidifier
Compare variants

Condair SE - Steam-To-Steam Humidifier

SE 050

Condair Limited Variant:

Steam exchange humidifiers, designed to deliver humidity from facility steam boilers.

Jump to:
+44 (0)1903 850200 www.condair.co.uk

Application

  • Hospitals.
  • Educational facilities.
  • Government buildings.
  • Institutional buildings.
  • Printing plants.
  • Museums and galleries.
  • Commercial offices.

Description

Steam exchange humidifiers, designed to deliver humidity from facility steam boilers. It utilizes the central facility steam as an energy source to boil potable, reverse osmosis (RO) or deionized (DI) water.


Features and benefits:

  • Clean, hygienic humidification steam, completely free of boiler chemicals and amines.
  • Complete cabinetry with insulation.
  • Designed for easy installation, reliable operation and rapid maintenance.
  • Available capacities range from 23 to 475 kg/h, when supplied with facility steam pressure at a maximum of 1 bar.
  • Two models available: Premium SETC and rugged outdoor SETC.
  • Automatic scale management based on steam production.
  • All components suitable for RO, DI or potable water.
  • Built-in drain water cooling.
  • Fully modulating down to 15% of capacity.
  • Built-in float and thermostatic steam trap (or traps) and P-trap.
  • Fully insulated tank for efficient operation.
  • Pre-cleaning sequence for easier and faster maintenance.
  • Includes valve, actuator and strainer.
  • Building management system compatible.

General information

Shape

Rectangle

Color

White

Turquoise

Material

Stainless steel

Steel

Size

Housing: W x H x D.

651 x 524 x 467 mm

1178 x 814 x 508 mm

1178 x 814 x 671 mm

1178 x 814 x 1067 mm

1178 x 814 x 1473 mm

Uniclass

Pr_65_67_39_84 Steam humidifiersPrimary

Specification data - Steam humidifiers Enhanced data

Electrical supply type

Single phase.

Steam source

Mains steam.

Material

Stainless steel.

Accessories

Not required.

Freeze protection.

Not available for SE 050.

Floor stand.

Available for all models.

e-links.

  • Available for all models.
  • Offers monitoring and control allowing humidifier(s) to communicate with a Building Management System (BMS).
  • Consult manufacturer for further details.

Outdoor model.

Not available for SE 050.

Keep warm feature.

Not available for SE 050.

Dimensions

Housing: W x H x D.

651 x 524 x 467 mm.

Operating voltage

230 V, 1 Phase, 50 Hz.

Performance

Maximum capacities at 1.03 bar steam pressure.

23 kg/h.

PressureRange

0.34–1.03 bar.

Actuator

Electric Modulating 0–10 V d.c., 24 V a.c.

Standard actuator with fail-safe spring return.

Control switch

Float and thermostatic built-in steam trap.

Loading

0.65 FLA (SETC), 2.7–6.9 FLA (SETC OD).

Full load amps (FLA).

Power consumption

0.15 kW (SETC), 0.65–1.65 kW (SETC OD).

OutletDiameter

Steam outlet.

1 x 44 mm.
