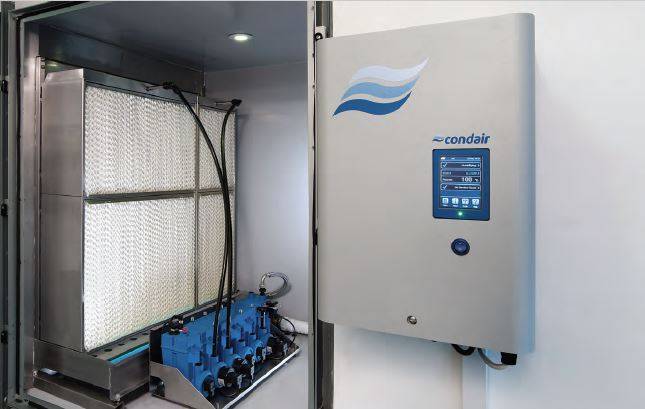

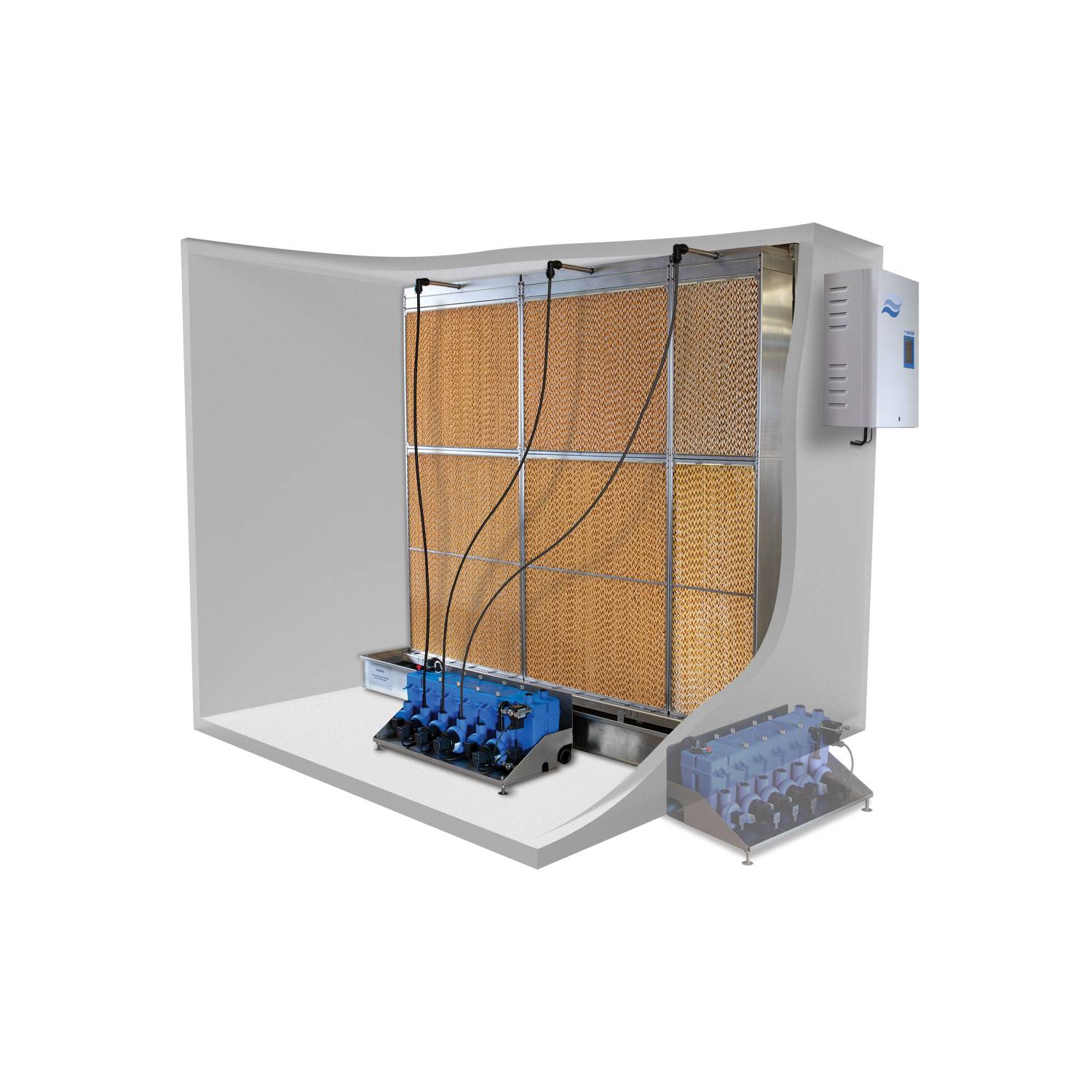

Condair ME - Evaporative Humidifier / Cooler

Application

  • Suitable for operation on mains or demineralized water.
  • Suitable for use in data centres.
  • Due to instant evaporation, it can be suitably accommodated in a very short section length within the duct or AHU.

Description

In-duct evaporative humidifier and cooler, with low energy operation.


Features and benefits:

  • Evaporative modules are custom built ranging from 600 to 4200 mm wide and 625 to 4000 mm high.
  • Multiple systems can be combined for larger AHUs.
  • Polyester or glass fibre evaporative cassettes, with low pressure drop.
  • Drain tray with optional submerged UV, which combats microbial growth in the water after it has been exposed to contaminants in the airstream, and continues to treat the water when the humidifier is not operational.
  • Temperature and conductivity sensor, allowing routine hygiene flush cycles to be timer controlled or activated by optional temperature and conductivity sensors.
  • Multi-stage pump system.
  • Touch screen control panel.
  • In-line RO/ UV/ silver ion.
  • Single drain connection.
  • Interior or exterior hydraulic unit.


Control system:

  • Evaporative module (flat packed), stainless steel 304.
  • Fully assembled hydraulic unit with connected cable harness.
  • Control panel.
  • Inter-connecting hoses.

General information

Shape

Rectangle

Color

Grey

Material

Stainless steel

Grade 304.

Steel

Size

  • Width ranging from 600 to 4200 mm.
  • Height ranging from 625 to 4000 mm.

-

Uniclass

Pr_65_67_39_28 Evaporative humidifiersPrimary

Specification data - Evaporative humidifiers Enhanced data

Accessories

Not required.

Submerged UV.

Conductivity and temperature sensor.

Remote fault indication.

Pump fault detection.

Leak detection.

BMS connectivity.

BTL certified BACnet or LonMark certified LonWorks.

Hydraulic module protective cover.

Freeze protection sensor.

Evaporative module blanking kit.

Hydraulic module external install kit.

In-line silver ion water treatment.

In-line UV water treatment.

Dosing pump (Condair 'Wet').

Disinfection pump.

Inlet.

Drain and purge valve kit.

Stage control valves.

On/ off control panel.

Stage control panel.

Evaporative module pre-assembled.

Up to certain sizes only, consult manufacturer for details.

Third party certification:

To Euro Class A2-S2-D0 (UL 900) fire rating and to be non-particle releasing.

Glass fibre cassettes certified by SP Institute of Sweden.

Integral accessories

BMS connectivity (ModBus)/ BACnet IP/ MSTP.

Multi-function touch screen control panel.

Cassette

Evaporative cassette.

Fleece Matrix, polyester.

Fibre Matrix, glass fibre.

Cassette length

600–4200 mm.

Evaporative module.

Cassette height

625–4000 mm.

Evaporative module.

Efficiency

For efficiency scenarios, consult manufacturer.

85%.

Fleece and fibre matrix.

95%.

Fleece and fibre matrix.

75%.

Fibre matrix only.

FireRating

Class F1 to DIN EN 53438.

Class AS-S2 to Euro, D0 (UL 900).

MaximumVelocity

Air velocity.

3.8 m/s.

Fleece matrix, no droplet separator.

3.5 m/s.

Fibre matrix, no droplet separator.

4.5 m/s.

Fleece and fibre matrix, with droplet separator.

Pressure

2–5 bar.

Admissible water supply pressure.

Power supply

110–250 V a.c., 1 Phase, 50–60 Hz.

Power consumption

85–536 W.

Ingress protection (IP) rating

IP2X.
