Application

Suitable for most building sectors:

  • Corporate.
  • Retail.
  • Leisure.
  • Public space.
  • Hospitality.
  • Healthcare.
  • Education.
  • Residential.

Description

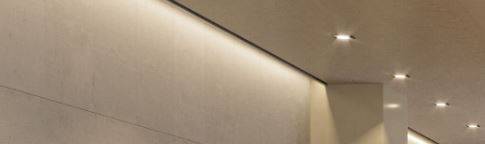

Concrete veneer wall panels combine two key elements: the perforated MDF core plate is given a finely perforated 1.5 mm cement veneer, creating an aesthetic finish that absorbs ambient noise.


Features and benefits:

  • 16 mm fire-retardant MDF with 1.5 mm cement veneer.
  • Multiple shades available.
  • Available with nano-perforation.
  • Sustainable materials including MDF with FSC certification.
  •  Available as ceiling and wall panels (ceiling system specified separately).
  •  Can be cut to size with regular wood saw.
  • Individually demountable.

General information

Color

White

Grey

Black

Finish

Cement

Matt

Material

Concrete

Medium density fibreboard (MDF)

Shape

Rectangle

Length

3020 mm

Bespoke

Width

1250 mm

Bespoke

Height

16 mm

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K11/875 Medium-density fibreboard

K11/59 Medium-density fibreboard

Specification data - Sound attenuator infill units

Standard

To EN 13501-1, ISO 354:2003, ISO 11654.

Fire performance

-

Reaction to fire

To BS EN 13501-1, Class B-s1, d0.

Dimensions

-

Size (length x width)

2400 x 600 mm.

2400 x 1200 mm.

3000 x 600 mm.

3000 x 1200 mm.

Manufacturer guidance

Other sizes available upon request, contact manufacturer for details.

Thickness (overall)

19 mm.

Guidance for specification option:

16 mm-thick MDF with 1.5 mm-thick top and back layers.

Edges

Concrete.

Matching melamine.

Surface pattern

As per face veneer.

Colour

Natural white.

Stone grey.

Original.

Vintage.

Dark graphite.

Third-party certification

MDF certified, FSC/PEFC quality mark.

Weight

15 kg/m².

Face veneer

1.5 mm-thick concrete with matt lacquer finish.

Guidance for specification option:

Finish: Two-component acrylic matt lacquer, water-based.

Manufacturer guidance

100% cement finish.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Netherlands

Material

Concrete

Medium density fibreboard (MDF)
