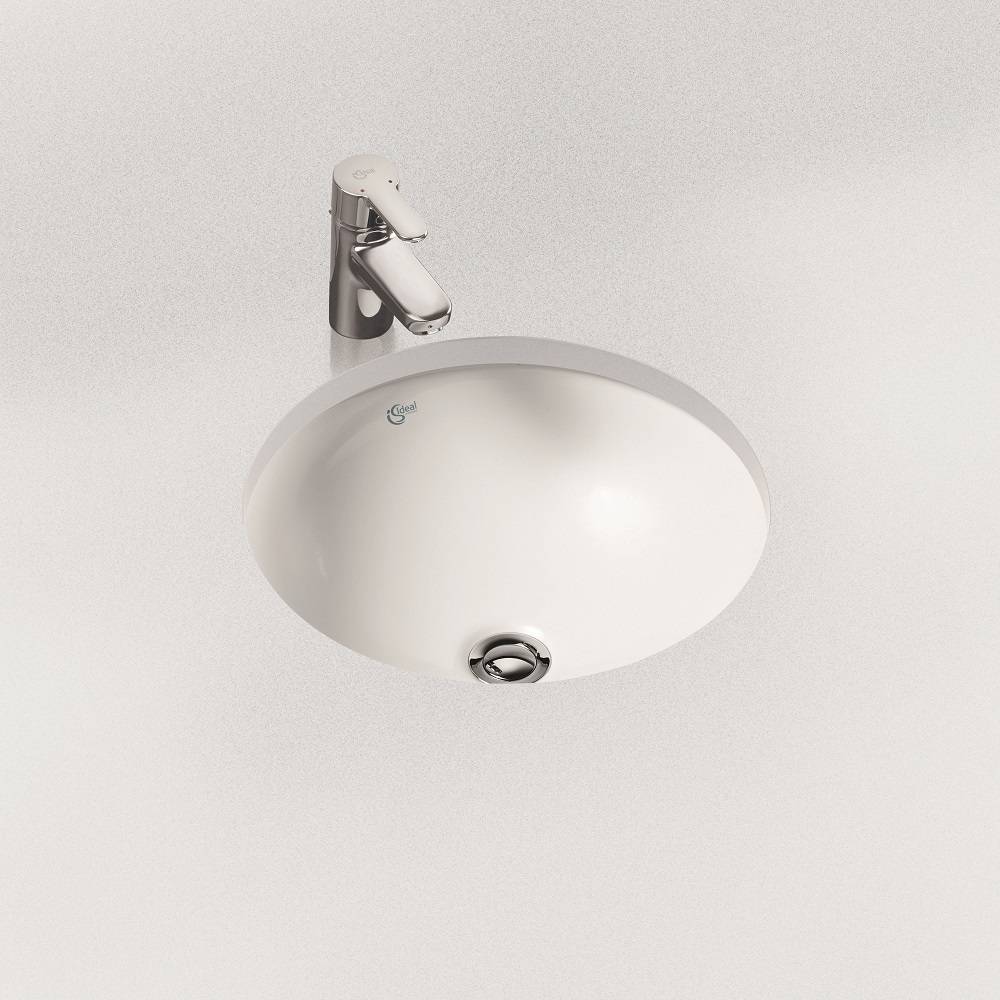

Concept Sphere 48 cm Under-countertop Washbasin

Concept Sphere 48 cm Under-countertop Washbasin

Ideal Standard (UK) Ltd

Concept countertop washbasins are available in three shapes and a wide choice of size and configuration options, providing solutions for any bathroom or washroom environment.

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk

Description

Concept Sphere 38cm under-countertop washbasin with overflow

  • Domestic and commercial use
  • Part of the extensive Concept suite

General information

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Color

White

Features

48 cm under-countertop washbasin with overflow

Material

Vitreous china

Shape

Circle

Size

480 x 480 x 175 mm

WarrantyDescription

Manufacturers Warranty

CAWS

N13/335 Washbasins

Specification data

Product Reference

E5024 - Concept Sphere 38/48cm Under-Countertop Washbasin

Concept Sphere 38cm Under-Countertop Washbasin

E5026 - Concept Sphere 38/48cm Under-Countertop Washbasin

Concept Sphere 48cm Under-Countertop Washbasin

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Brassware

B9915 - Concept Blue Basin Mixer

Concept Blue Washbasin Mixer 1 Hole With Pop-up Waste

Not required

Trap

E0079 - 1¼" Contemporary Bottle Trap

1¼" Contemporary Bottle Trap, 75mm seal

S8910 - Trap 1¼" Plastic Bottle

1¼"x75mm Seal Plastic Bottle Trap

Not required

Thermostatic Valve

A5900 - 15mm Thermostatic Mixing Valve

TMV Thermostatic Mixing Valve 15mm

Not required

Standard product features

Washbasin:

  • Capacity: 2.5 litres
  • Material: Fine Fireclay
  • Weight: 5.05 kg
  • Standards: Washbasin to BS EN 14688 & BS EN 31

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 1.89 kg
  • Flowrate: 5.00 lpm @ 3bar

Trap:

  • Material: Plastic
  • Weight: 0.20 kg

Product Options

This washbasin is not suitable for separate pillar taps. Washbasin mounted on underside of countertop using S9118 fixing clips. Joint sealed using waterproof sealant (not supplied). Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device see A5900AA

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2013

1

1.2
Download now from NBS National BIM Library
