Concept Space Sphere 55 cm Washbasin, short projection

Concept Space Sphere 55 cm Washbasin, short projection

Ideal Standard (UK) Ltd

Concept Space consists of a wide range of ceramic pieces, storage and bathing solutions with innovative features providing the best possible use of space in any bathroom area.

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk

Description

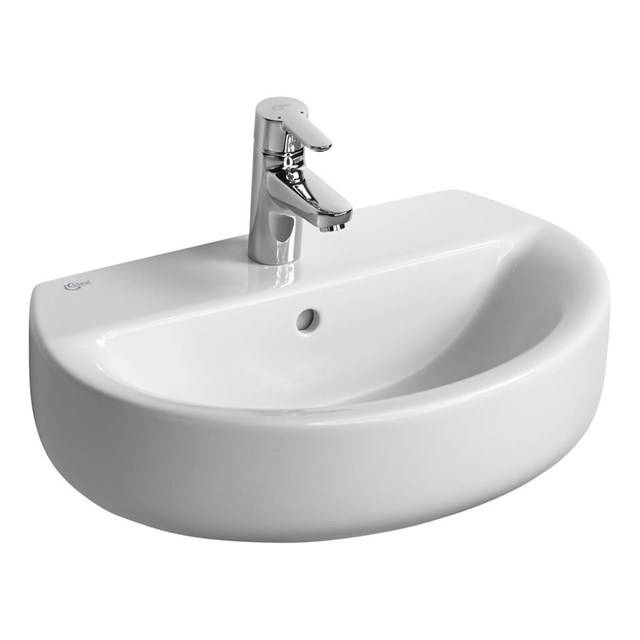

Concept Space 55cm Sphere short projection pedestal washbasin, 1 taphole

  • Domestic and commercial use
  • Part of the extensive Concept Space suite
  • Space saving design

General information

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Color

White

Features

Short projection pedestal washbasin, 1 taphole

Material

Vitreous china

Shape

Oval

Size

550 x 380 x 172 mm

WarrantyDescription

Manufacturers Warranty

Uniclass 2015

Pr_40_20_96_63 Pedestal washbasinsPrimary

Specification data - Pedestal washbasins

Product Reference

E1346 - Concept Space Sphere 55cm Washbasin - Short Projection

Concept Space 55cm Sphere Short Proj. Washbasin 1 Taphole

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Pedestal

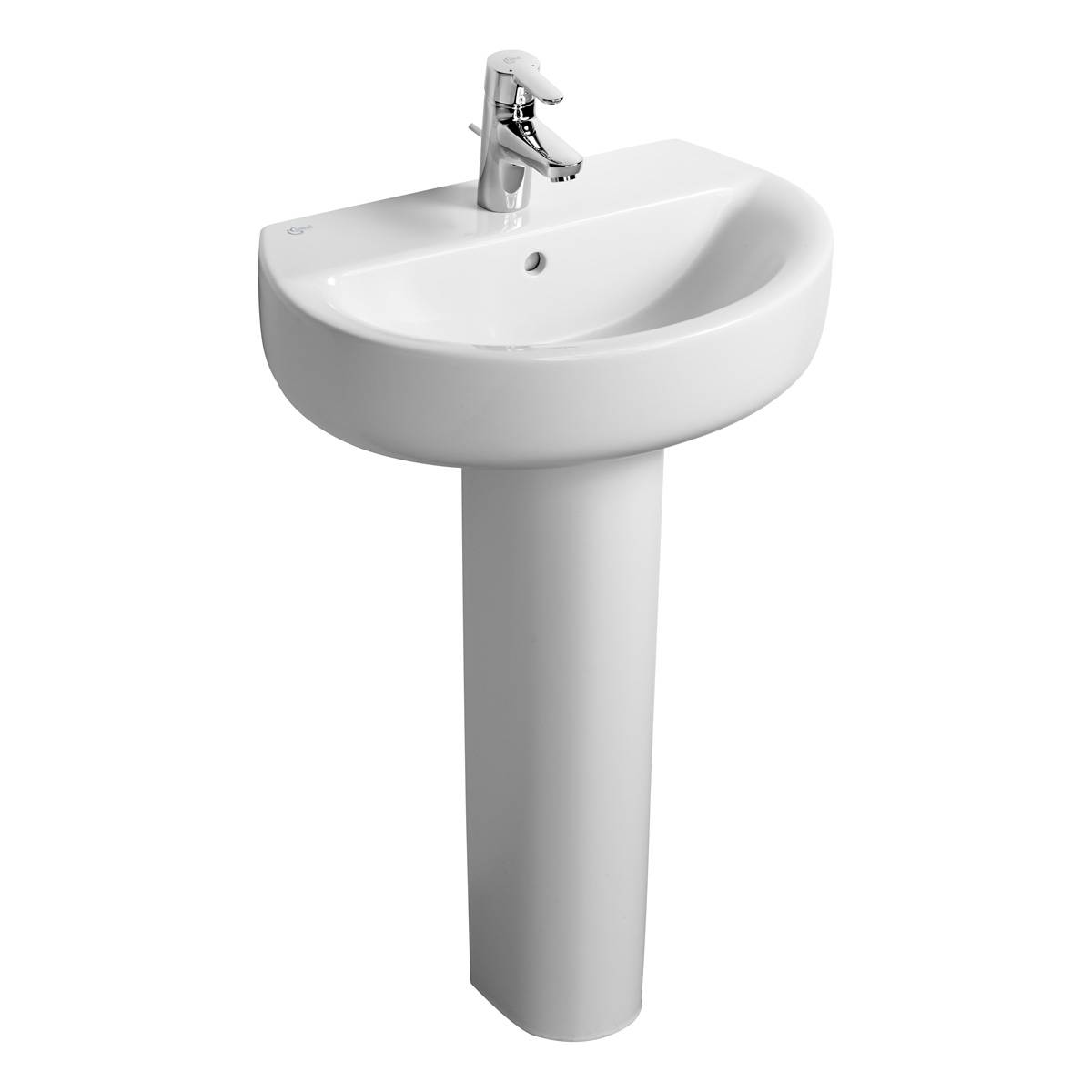

E7837 - Full Pedestal

Concept Full Pedestal

E7839 - Semi Pedestal

Concept Semi Pedestal

Not required

Standard product features

Washbasin:

  • Capacity: 3.2 litres
  • Material: Vitreous China
  • Weight: 13.80 kg
  • Standards: Vitreous china to BS 3402. Washbasin to BS EN 14688 & BS EN 31

Pedestal:

  • Material: Fine Fireclay
  • Weight: 6.88 kg

Washbasin Wall Fixings:

  • Material: Metal
  • Weight: 0.16 kg

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 1.89 kg
  • Flowrate: 5.00 lpm @ 3bar

Trap:

  • Material: Plastic
  • Weight: 0.20 kg

Product Options

Washbasin wall mounted using E0157 wall fixing set with semi-pedestal screwed to wall or full pedestal mounted using 2 screws through the back of the basin (not supplied)

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2013

1

1.2
Download now from NBS National BIM Library
