Concept Space Arc 50 cm Semi-Countertop Washbasin

Concept Space Arc 50 cm Semi-Countertop Washbasin

Ideal Standard (UK) Ltd

Concept Space consists of a wide range of ceramic pieces, storage and bathing solutions with innovative features providing the best possible use of space in any bathroom area.

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk
Description

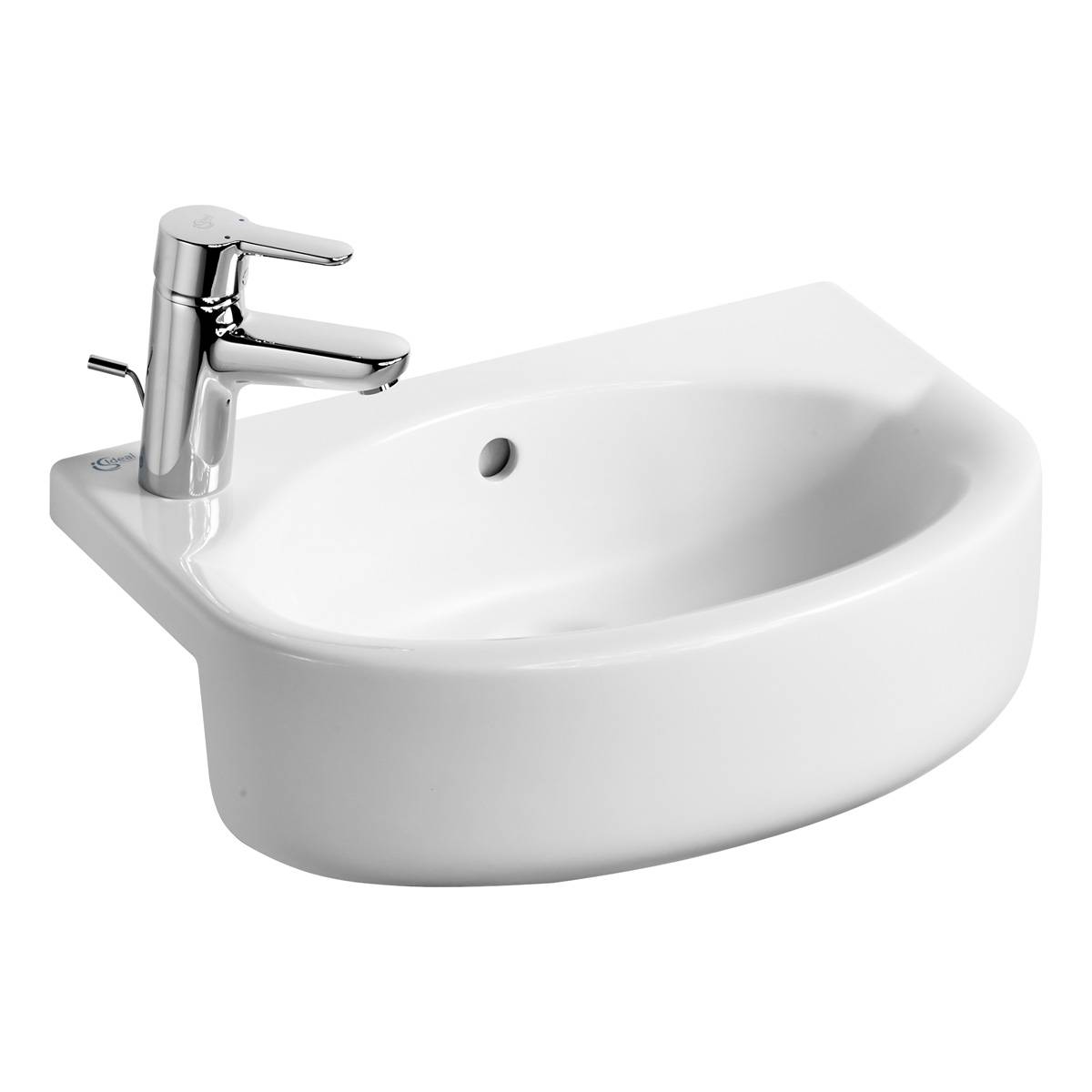

Concept Space 50cm Arc short projection semi countertop washbasin, 1 left hand taphole with overflow

  • Domestic or commercial use
  • Short projection
  • Part of an extensive suite
  • Matching slimline furniture base unit with 5 finish options

General information

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Color

White

Features

50 cm arc short projection semi countertop washbasin, 1 left hand taphole with overflow

50 cm arc short projection semi countertop washbasin, 1 right hand taphole with overflow

Material

Vitreous china

Shape

Sculptured

Size

501 x 362 x 167 mm

WarrantyDescription

Manufacturers Warranty

Uniclass 2015

Pr_40_20_96_18 Countertop washbasinsPrimary

CAWS

N13/335 Washbasins

Specification data - Countertop washbasins

Product Reference

E1344 - Concept Space Arc 50cm Semi-Countertop Washbasin

Concept Space 50cm Arc Short Projection Semi-Countertop Washbasin, 1 LH Taphole

E1374 - Concept Space Arc 50cm Semi-Countertop Washbasin

Concept Space 50cm Arc Short Projection Semi-Countertop Washbasin, 1 RH Taphole

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Brassware

B9915 - Concept Blue Basin Mixer

Concept Blue Washbasin Mixer 1 Hole With Pop-up Waste

B9918 - Concept Blue Basin Mixer

Concept Blue Washbasin Mixer 1 Hole

Not required

Waste

S8803 - 1¼" Waste Click Plug

Waste Click Waste Slotted

Not required

Trap

S8910 - Trap 1¼" Plastic Bottle

1¼"x75mm Seal Plastic Bottle Trap

S8950 - Trap 1¼" Plastic Bottle

1¼" Plastic P Trap For Cloaks Pedestal

S8920 - Trap 1¼" Plastic Bottle Resealing

1¼"x75mm Resealing Plastic Bottle Trap

Not required

Standard product features

Washbasin:

  • Capacity: 3.7 litres
  • Material: Fine Fireclay
  • Weight: 11.30 kg
  • Standards: Vitreous china to BS 3402. Washbasin to BS EN 14688 & BS EN 31

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 1.89 kg
  • Flowrate: 5.00 lpm @ 3bar

Trap:

  • Material: Plastic
  • Weight: 0.20 kg

Product Options

Washbasin fixed to countertop with securing clips provided. Joint sealed with waterproof sealant (not supplied). Basin designed to leave a 10mm gap at rear to tile down onto worktop. We only recommend the use of our 210mm units with this basin.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2013 1 1.2
Download now from NBS National BIM Library
