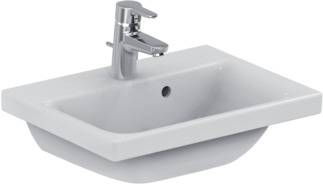

Concept Space 50 cm Washbasin 1 Taphole

Application

Suitable for hotel, office, residential and leisure use.

Description

Concept Space consists of a wide range of ceramic pieces, storage and bathing solutions.

The washbasin is wall mounted using the E015767 wall fixing set, with semi-pedestal screwed to wall or full pedestal mounted using two screws through the back of the basin. The washbasin can also be supported on dedicated furniture units.


Features and benefits:

  • Furniture or pedestal use.
  • Dedicated Furniture unit with five finish options.
  • Space saving.
  • Part of an extensive suite.

General information

Color

White

Material

Fireclay

Fine.

Shape

Rectangle

Width

500 mm

Height

380 mm

Uniclass

Pr_40_20_96_63 Pedestal washbasinsPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

Specification data - Pedestal washbasins

Standard

To BS 3402 and BS EN 14688.

Form

Mixer taps.

Materials

-

Body

Fine fireclay.

Finish and colour

White.

Size

Width x height x depth.

500 x 380 x 380 mm.

Water supply, overflow and waste holes

-

Water supply

Single tap hole, centred.

Integral accessories

E015767 wall fixing set.

Capacity

3.8 L.

Net weight

12.3 kg.
