Concept Air Cube 50 cm Washbasin

Concept Air Cube 50 cm Washbasin

Ideal Standard (UK) Ltd

Concept Air offers a modern design which incorporates thin ceramic walls for a light, sleek look. The range has limitless versatility and a design matched, cross category offer with new options.

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk

Description

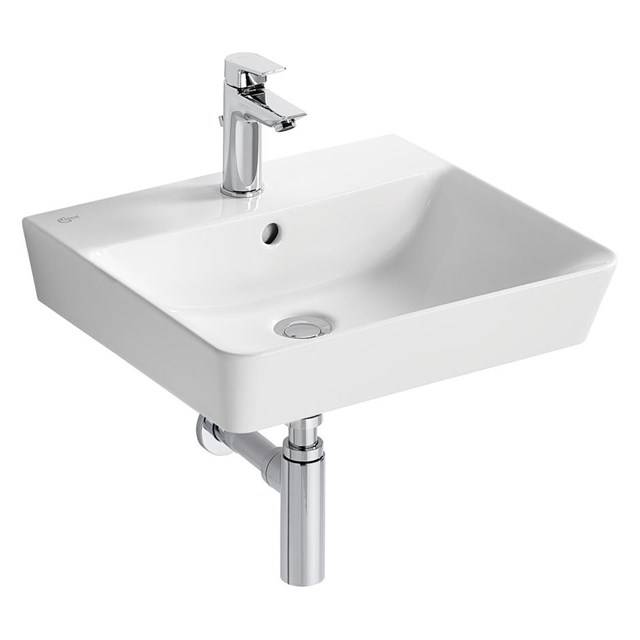

Concept Air Cube 50cm washbasin, 1 taphole with overflow

  • Domestic and commercial use
  • Part of an extensive range
  • Furniture or pedestal use
  • Pedestal or semi pedestal options

General information

Finish

Chrome - (AA)

Neutral / No Finish - (67)

Color

White

Features

50 cm washbasin, 1 taphole with overflow

Material

Vitreous china

Shape

Sculptured

Size

500 x 450 x 160 mm

WarrantyDescription

Manufacturers Warranty

Uniclass 2015

Pr_40_20_96_18 Countertop washbasinsPrimary

Product range

Washbasins / Pedestal or Wall

Specification data - Countertop washbasins

Product Reference

E0768 - Concept Air Cube 50cm Washbasin

Concept Air Cube 50cm Washbasin

Finish

Chrome - (AA)

Neutral / No Finish - (67)

Pedestal

E0772 - Pedestal

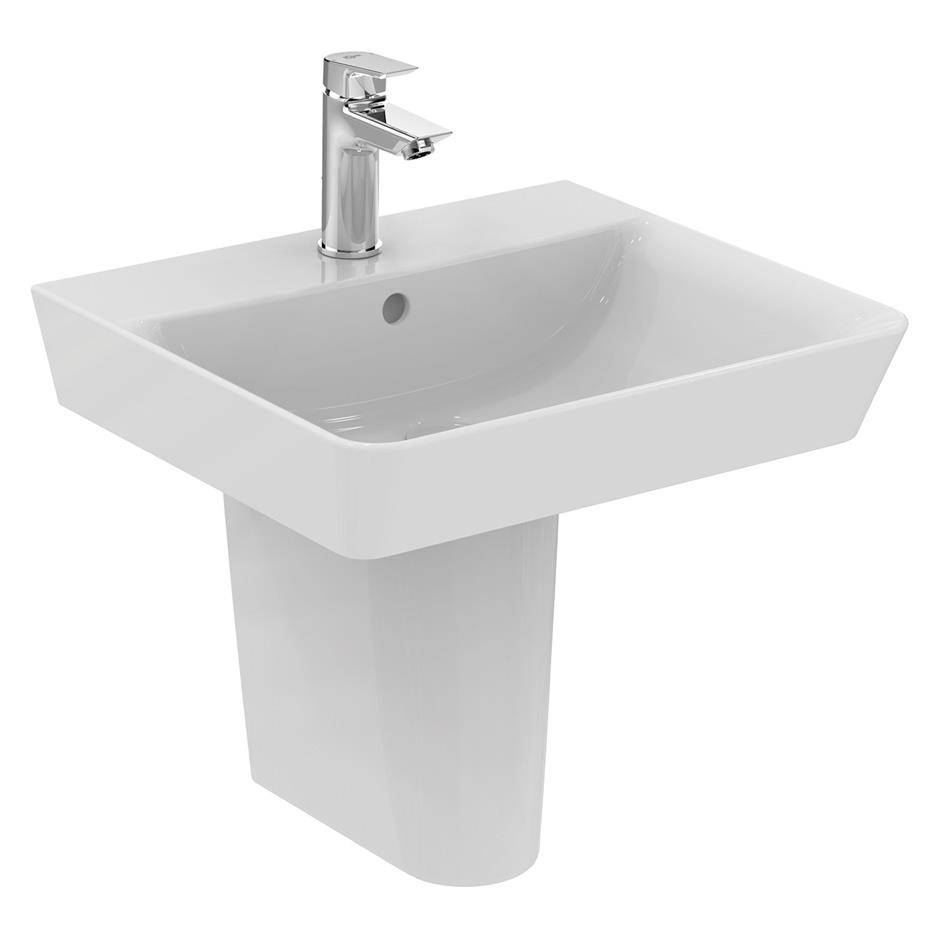

Concept Air Semi Pedestal

E0781 - Pedestal

Concept Air Pedestal

Not required

Standard product features

Washbasin:

  • Capacity: 4.8 litres
  • Material: Fine Fireclay
  • Weight: 12.00 kg
  • Standards: Washbasin to BS EN 14688 and BS EN 31

Washbasin Wall Fixings:

  • Material: Metal
  • Weight: 0.16 kg

Brassware:

  • Material: Chrome Plated Metal
  • Weight: 1.71 kg
  • Flowrate: 5.00 lpm @ 3bar

Trap:

  • Material: Chrome Plated Metal
  • Weight: 1.45 kg

Product Options

Washbasin wall mounted using E0157 wall fixing set, with semi pedestal fixed to wall with brackets supplied or full pedestal mounted using 2 screws through the back of wall (not supplied). When fitted to furniture washbasin must be secured to wall with E0157 wall fixing set. Can be used with dedicated Concept Air basin unit - see furniture section.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2014

1

1.2
Download now from NBS National BIM Library
