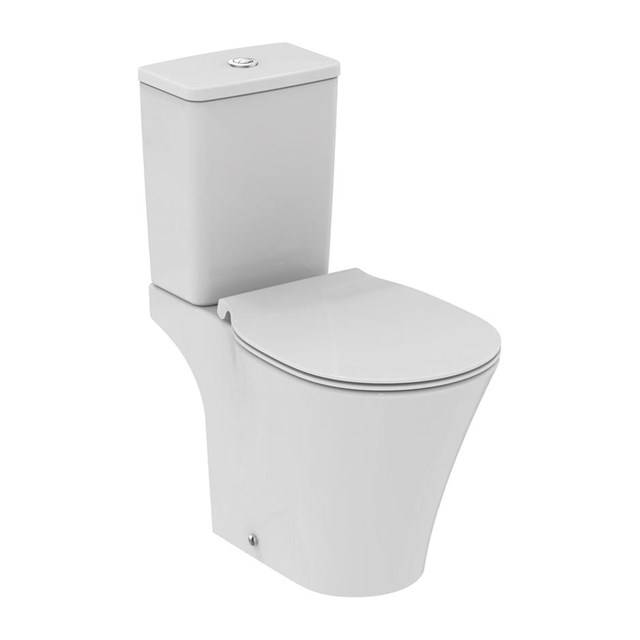

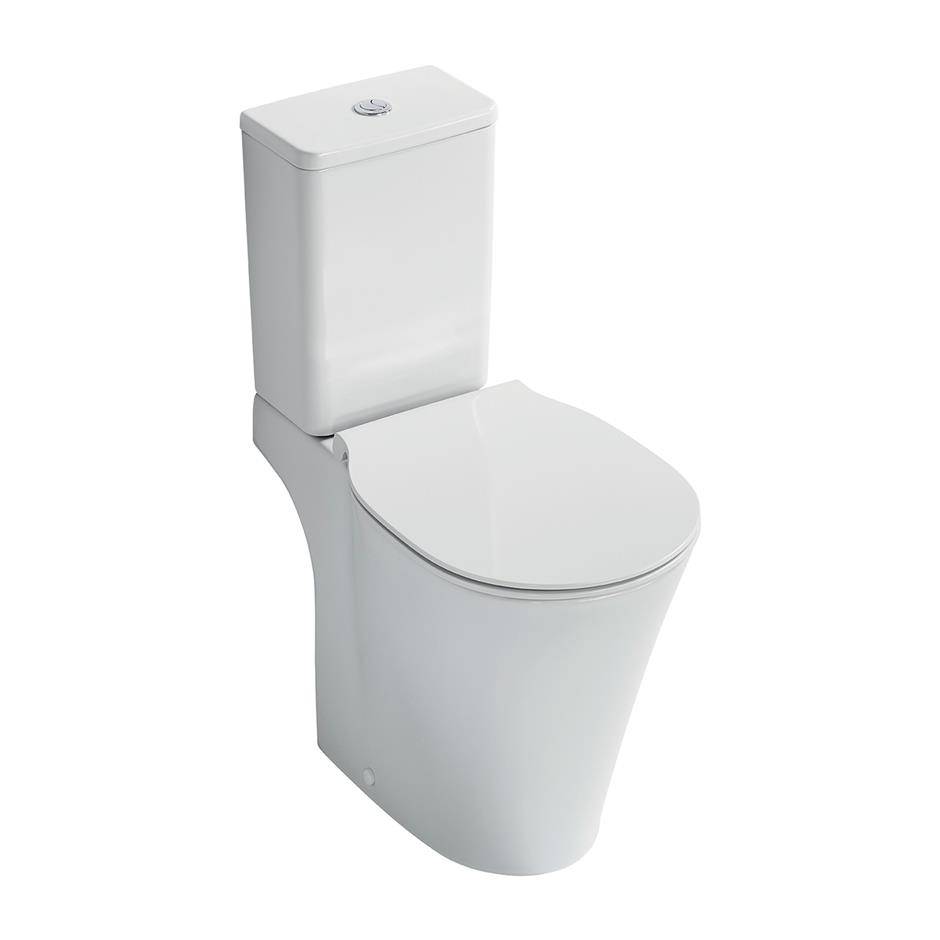

Concept Air Close Coupled WC Suite
Description

Concept Air close coupled wc pan with Aquablade technology, horizontal outlet

  • Domestic and commercial use
  • Push button dual flush cistern
  • Part of an extensive range
  • Slow close seat option
  • Water efficient
  • Choice of seat style
  • Aquablade flushing technology

General information
Finish

White - (01)

Features

Air close coupled bowl with aquablade technology, horizontal outlet-sandwich slim seat

Air close coupled bowl with aquablade technology, horizontal outlet-wrapover seat

Shape

Sculptured

Size

364 x 600 x 400mm

WarrantyDescription

Manufacturers Warranty

Uniclass 2015
Pr_40_20_93_94 WC pansPrimary
Specification data - WC pans
Product Reference

E0797 - Concept Air Close Coupled WC Suite With Aquablade Technology

Concept Air Close Coupled WC Pan

Finish

White - (01)

Standard product features

WC Pan:

  • Material: Vitreous China
  • Weight: 24.30 kg
  • Standards: Vitreous china to BS3402. WC pan to BS EN 997 and BS EN 33

Cistern:

  • Capacity: 4.0 litres
  • Secondary Capacity: 2.6 litres
  • Material: Vitreous China
  • Weight: 10.44 kg

WC Seat:

  • Material: Plastic
  • Weight: 2.10 kg

Product Options

WC screwed to floor using concealed brackets (supplied) and cistern screwed to wall.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2014 1 1.3
