Concealed Hinges

Verified by manufacturer 11 days ago

8094 Concealed 3D Adjustable Hinge 120 kg Load FD60

Allgood Ltd Variant:

A range of concealed door hinges.

Jump to:
+44 (0)121 359 4415 Website

Application

Suitable for use internally in wood and metal doors and door frames.

Description

A range of concealed door hinges.

Features and benefits:

  • Concealed.
  • 80–120 kg load capacity.
  • FD30 or FD60 fire rated with three hinges.

General information

Color

Silver

Finish

Stainless steel

Other

Material

Stainless steel

Shape

Rectangle

Length

155 mm

160 mm

200 mm

Width

26 mm

28 mm

32 mm

Uniclass

Pr_30_36_36_17 Cranked hingesPrimary

CAWS

P21/320 Door hinges

P21/8 Door hinges

SKU Code

8098, 8095, 8094, 8096, 8097, 8099

Specification data - Cranked hinges

Form

Cranked.

Size

155 x 26 mm.

Material and finish

Stainless steel.

Colour

SS (Simulated stainless steel).

FireRating

FD60.

Guidance for specification option:

Three hinges must be fitted.

Load capacity

120 kg.

Guidance for specification option:

Based on two hinges on a 2000 x 1000 mm door.

Accessories

Not required.

Receiver for metal doors.

Receiver for metal frames.

Sustainability data

Contains Red List materials

No

Material

Stainless steel

Literature

8094-Datasheet Issue 02

8094-Datasheet Issue 02

8095-Datasheet Issue 02

8095-Datasheet Issue 02

8096-Datasheet Issue 02

8096-Datasheet Issue 02

8097-Datasheet Issue 02

8097-Datasheet Issue 02

8098-Datasheet Issue 02

8098-Datasheet Issue 02

8099-Datasheet Issue 02

8099-Datasheet Issue 02

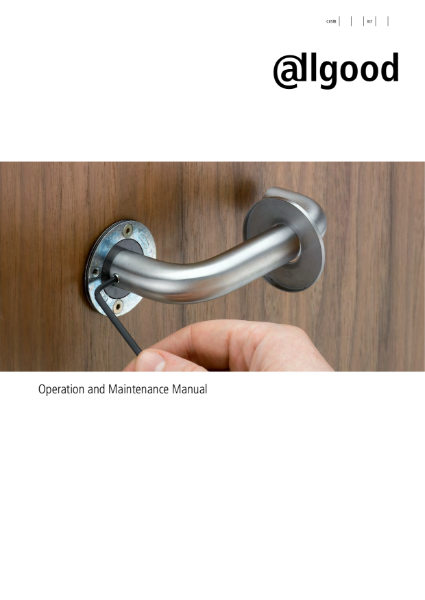

01 - O & M Manual
