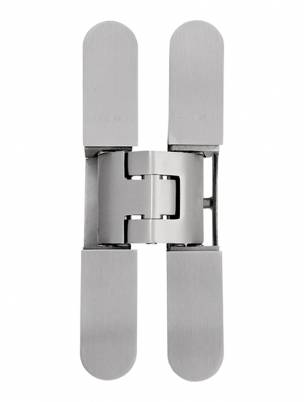

Concealed Hinge (CCH330) - Hardware
Verified by manufacturer 1 day ago
3D adjustable concealed hinge made from Grade 304 satin stainless steel, reversible, with up to 180° open angle and fire certification.
Application
Suitable for use on timber and steel doors, including fire door applications up to FD60 rating.
Description
3D adjustable concealed hinge, reversible for left and right.
Features and benefits:
- All components are made from Grade 304 satin stainless steel.
- Load capacity: Two hinges support up to 120 kg, three hinges support up to 140 kg.
- Open angle up to 180 degrees.
- Minimum wooden door thickness: 37 mm.
- Minimum steel door thickness: 32 mm.
- Side adjustment: ±3.0 mm.
- Height adjustment: ±3.0 mm.
- Depth adjustment: ±1.0 mm.
- UL10c certified and fire tested to BS EN 1634-1:2008, suitable for use on up to FD60 timber door applications.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 28 mm |
Width | 39.2 mm |
Height | 185 mm |
Uniclass | |
CAWS | P21/320 Door hinges P21/8 Door hinges P21/310 Single-axis door hinges P21/7 Single-axis door hinges |
SKU Code | CCH330 |
Specification data - Butt door hinges
Classification data | |
Form | Concealed. |
Size | 182 x 28 x 39.2 mm. Guidance for specification option: Height x length x width. |
Material and finish | Satin stainless steel, Grade 1.4301 (304). |
Colour | SSS - Stain stainless steel. Other. Guidance for specification option: Available on request, consult manufacturer and insert requirements. |
Load capacity | 120 kg (two hinges), 140 kg (three hinges). |
Sustainability data
Material | Stainless steel |
Literature
CCH330 - Product Data Sheet
