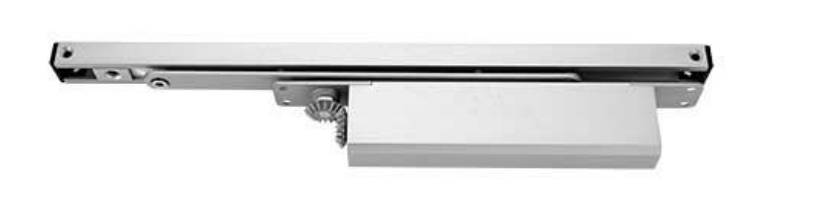

Concealed Door Closer (CDCC3/CDCC4) - Door Closer

Name: Concealed Door Closer (CDCC3/CDCC4) - Door Closer
Brand: Consort Architectural Hardware
SKU: gEYxCC2CBNAWxUXnd6K4Kr

Verified by manufacturer 3 days ago

CDCC3.EIDC - Closer With Electronic Integrated Door Coordinator

Consort Architectural Hardware

Product certifications:

Warrington Fire
Certificate type
EPD
Certificate type

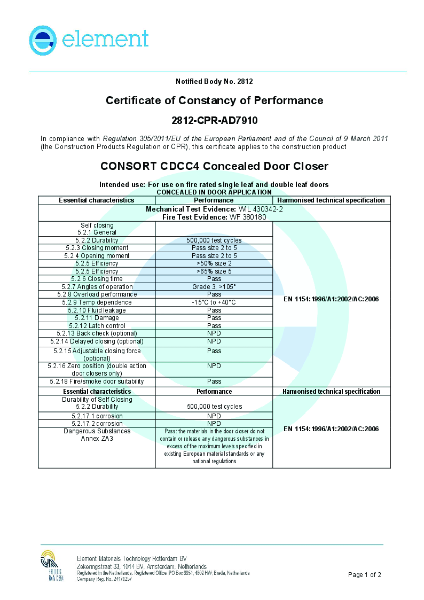

Certificate of constancy of performance
Certificate type

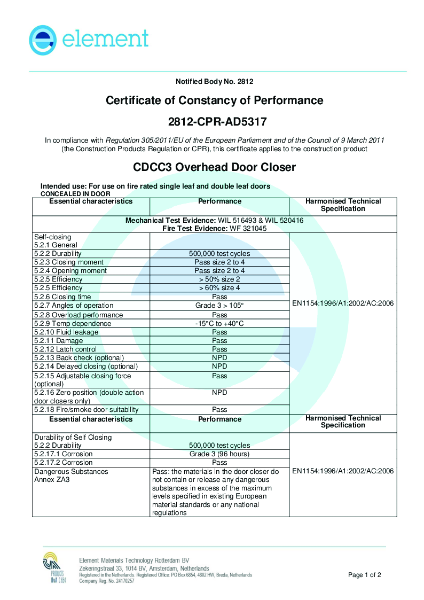

Certificate of constancy of performance
Certificate type

Adjustable cam action concealed door closer for single action doors with an optional electronic integrated door coordinator.

Jump to:

Request BIM

+44 (0) 121 359 8189 Website

Application

Suitable for single action right and left hand doors in timber and metal door and frame applications, including fire doors up to FD120 Timber and FD240 Metal. Can be used in buildings requiring fire compartmentalisation and integration with building management systems (BMS).

Description

Concealed door closers designed for single action right and left hand doors with cam action mechanism.

Features and benefits:

Power adjustable with adjustable closing and latching speed.
Suitable for various door weights and widths depending on model.
Minimum door thickness varies by model from 40 mm to 49 mm.
Optional extras include cushioned stop, adjustable hold open, delayed action, and electronic integrated door coordinator (EIDC) for fire safety.
Tested and certified for fire door applications and performance standards including EN 1154:1997, UL228, UL10c, and CERTIFIRE Warrington Certificate of Approval No. CF5508.

General information

Color	Black Bronze Silver Copper
Finish	Matt Polished Satin
Material	Metal
Shape	Rectangle
Length	460 mm
Width	32 mm
Height	60 mm
Warranty description	Other

Uniclass	Pr_30_36_59_15 Controlled door closersPrimary
CAWS	P21/12 Controlled door closers P21/410 Controlled door closers

SKU Code	CDCC3.EIDC

Specification data - Controlled door closers

Classification data
Standard	To BS EN 1154.
Classification grades (minimum)	-
Door closer power size	2–4.
Form	Overhead, concealed.
Closer functions	Mechanical hold-open and controlled closing.
Materials and finishes	-
Colour	SNP - Stainless nickel plate. PNP - Polished nickel plate. PB - Polished brass. BLK - Matt black. BRZ - Bronze. SIL - Silver.
Fasteners for hardware	As supplied.

Sustainability data

Contains Red List materials	Yes
Material	Metal
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : 30.9 (kg CO₂ eq/kg) Declared unit : 30.9 Lower emissions
Recyclability	76%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	51 %
Expected Life	30 year
